    Question 1
    CBSEENPH12037570

    A circular coil of wire consisting of 100 turns, each of radius 8.0 cm carries a current of 0.40 A. What is the magnitude of the magnetic field B at the centre of the coil?

    Solution

    Given,
    Current carried by wire, I = 0.40 A,
    Radius of circular wire, r = 8.0 cm = 8×10-2m
    Number of turns in the coil, n = 100

    Using the formula, we get the magnetic field at the centre of coil as

    B = μ0nI2r = 4π×10-7×100×0.42×8.0×10-2T
                   = 3.1 × 10-4T.


    Question 2
    CBSEENPH12037571

    A long straight wire carries a current of 35 A. What is the magnitude of the field B at a point 20 cm from the wire?

    Solution

    Given,
    Current carried by conductor, I = 35 A
    Distance, r = 20 cm = 0.2 m

    Using Ampere's circuital law we get,

     B = μ0I2πr = 4π×10-7×352π×0.20T  = 3.5 × 10-5T.

    Question 3
    CBSEENPH12037572

    A long straight wire in the horizontal plane carries a current of 50 A in north to south direction. Give the magnitude and direction of B at a point 2.5 m east of the wire.

    Solution
    Given,
    Current carried by wire, I= 50 A
    Distance from the wire, r = 2.5 m
    Magnetic field at point r,  B = ?

    Using ampere's circuital law
                           B = μ0I2πr = 4π×10-7×502π×2.5= 4 × 10-6T

    The direction of magnetic field can be found out by applying right hand thumb rule. As the direction of current is from north to south represented by thumb, the direction iof magnetic field is vertically upwards in east direction of wire.
    Question 4
    CBSEENPH12037573

    A horizontal overhead power line carries a current of 90 A in east to west direction. What is the magnitude and direction of the magnetic field due to the current 1.5 m below the line?

    Solution

    Given, current, I= 90 A
    distance ,r = 1.5 m
    Thus,
    the magnitude of magnetic field is given by Ampere's circuital law

                   B = μ0I2πr    = 4π×10-7×902π×1.5   = 1.2 × 10-5 T

    Applying the right-hand thumb rule, we find that the magnetic field at the observation point is directed towards south.

    Question 5
    CBSEENPH12037574

    What is the magnitude of magnetic force per unit length on a wire carrying a current of 8 A and making an angle of 30° with the direction of a uniform magnetic field of 0.15 T?

    Solution

    Given,
        Current carried by wire, I = 8  A,Uniform magnetic field,  B = 0.15 T, Angle made by the wire with magnetic field,  θ = 30°

    Therefore,

    Force acting on wire

                F = BIl sin θ

                   = 0.27 × 10 × (3 × 10-2) × sin 90° = 0.27 × 10 × 3 × 10-2 × 1

                F = 8.1 × 10-2N



    Question 6
    CBSEENPH12037575

    Two long and parallel straight wires A and B carrying currents of 8.0 A and 5.0 A in the same direction are separated by a distance of 4.0 cm. Estimate the force on a 10 cm section of wire A.

    Solution

    Given,
    Current on first conductor, I1 = 8.0 A
    Current on second conductor, I2 = 5 A
    Distance between the conductors,  r = 4.0 cm =4 × 10-2
    Length of the wire, l= 10 cm = 0.1 m
    Force on length l is given by,


    F = μ02πI1I2lr
                      = 4π × 10-7 × 8 ×5 × 0.12π × 0.04 = 2×10-5N

    Question 7
    CBSEENPH12037576

    A closely wound solenoid 80 cm long has 5 layers of windings of 400 turns each. The diameter of the solenoid is 1.8 cm. If the current carried is 8.0 A, estimate the magnitude of B inside the solenoid near its centre.

    Solution

    Here given,
    Length of the solenoid, l = 80 cm = 0.80 m
    Total number of turns, N = 5 x 400 = 2000
    Current passing through, I = 8.0 A
    Diameter of the solenoid, D = 1.8 cm

    n = no. of turns per unit length

    Therfore,

    n = Total turnlengthn = 20000.80

    Magnitude of magnetic field inside a solenoid near its centre
    B = μ0nI    = 4π×10-7×2000×8.00.80    = 8 π ×10-3T     = 2.5 × 10-2 T.

    Question 8
    CBSEENPH12037577

    A square coil of side 10 cm consists of 20 turns and carries a current of 12 A. The coil is suspended vertically and the normal to the plane of the coil makes an angle of 30° with the direction of a uniform horizontal magnetic field of magnitude 0.80 T. What is the magnitude of torque experienced by the coil?

    Solution

    Here,
    Length of the side of the square,  l = 10 cm = 0.10 m
    Number of turns in the coil, N = 20
    Current carried by the conductor, I = 12 A
    Angle made by the coil with the magnetic field,θ = 30°
    Magnetic field , B = 0.80 T
    Area of the conductor A = l × l = 0.1 × 0.1 = 0.01 m2
    Therefore,

    Torque is given by, τ = NBIA sin θ    = 20 × 0.80 × 12 × (0.1)2 × sin 90°    = 0.96 Nm

    Question 9
    CBSEENPH12037578

    Two moving coil meters, M1 and M2 have the following particulars:
    R1 = 10 Ω   N1 = 30,
    A1 = 3.6 x 10–3 m2,  B1 = 0.25 T
    R2 = 14 Ω;  N2 = 42,
    A2 = 1.8 x 10–3 m2, B2 = 0.50 T
    (The spring constants k are identical for the two meters).
    Determine the ratio of (a) current sensitivity and (b) voltage sensitivity of M2 and M1.

    Solution
    (a) Current sensitivity of a moving coil galvanometer is the amount of deflection per unit current.
    Therefore,
    Current sensitivity of first meter is given by

                  Is = ϕI= BANk
                           IM1 = ϕI = B1A1N1k      =0.25 × 3.6 × 10-3 × 30k      = 27 × 10-3k                                             ...(i)

    Current sensitivity of second meter,
               IM2 = ϕI = B2A2N2k      = 0.50 × 1.80 × 10-3 × 42k      = 37.8 × 10-3k                                               ...(ii)

    Ratio of current sensitivity is therefore,

    IM2IM1 =37.8 × 10-3k27 × 10-3k = 1.4

    (b) Voltage sensitivity of a moving coil galvanometer is given as the amount of deflection per unit voltage.
    Thus,
    Voltage sensitivity of first meter is,
      VM1= ϕV= ϕI. R       = 27 × 10-3k × 10       = 2.7 ×10-3 k

     Voltage sensitivity of second meter
           VM2= ϕR.I       = 37.8 × 10-3k × 10        = 2.7 × 10-3k

    Hence, the ratio of voltage sensitivity, VM1VM2 = 1.
    Question 10
    CBSEENPH12037579

    In a chamber, a uniform magnetic field of 6.5 G (1 G = 10–4T) is maintained. An electron is shot into the field with a speed of 4.8 x 106 m s–1 normal to the field. Explain why the path of the electron is a circle. Determine the radius of the circular orbit. (e = 1.6 x 10–31 C, me = 9.1 x 10–31 kg)

    Solution
    Here given,
    Uniform magnetic field, B = 6.5 x 10
    –4 T
    Speed with which the electron is shot, v = 4.8 x 10
    6 m/s
    Charge on electron, e = 1.6 x 10
    –19 C
    Angle made by the electron with the field, θ = 90° Mass of electron, m = 9.1 x 10–31 kg
    Radius of the circular orbit,  r =?

    (i) Force on the moving electron due to magnetic field will be,


    F =evB sin θ.

    The direction of this force is perpendicular to v and B therefore, this force will only change the direction of motion of the electron without affecting its velocity i.e., this force will provide the centripetal force to the moving electron and hence, the electron will move on the circular path.

    If r is the radius of circular path traced by electron, then

                 evB sin 90° = mv2/r  r = mvBe r = 9.1 × 10-31 × 4.8 × 1066.5 × 10-4 × 1.6 × 10-19        = 4.2 × 10-2 m = 4.2 cm

    Question 11
    CBSEENPH12037580

    In Question 4.11 obtain the frequency of revolution of the electron in its circular orbit. Does the answer depend on the speed of the electron?

    Solution
    Given ,
    B = 6.5 G= 6.5 ×10-4 T
    v= 4.8 × 106 m/s

    Frequency of the revolution of a charged particle is given by
                     ν = Bq2πm   = 6.5 × 10-4×1.6×10-192 × 3.14 × 9.1 × 10-31  = 10.4 × 10-2351.148 × 10-31  = 0.18198 × 108v = 18 × 106 Hz    = 18 MHz

    The frequency is independent of the velocity.

    Question 12
    CBSEENPH12037581

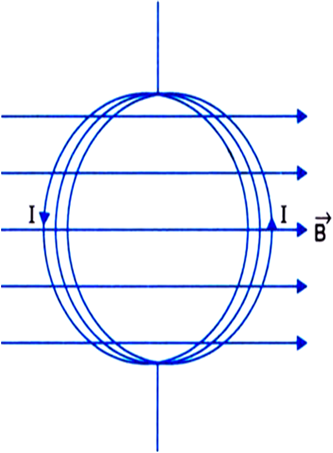

    (a) A circular coil of 30 turns and radius 8.0 cm, carrying a current of 6.0 A is suspended vertically in a uniform horizontal magnetic field of magnitude 1.0 T. The field lines make an angle of 60° with the normal of the coil. Calculate the magnitude of the counter torque that must be applied to prevent the coil from turning.
    (b) Would your answer change if the circular coil were replaced by a planar coil of some irregular shape that encloses the same area? (All other particulars are also unaltered).

    Solution

    Given, a current carrying circular coil.

    Number of turns in the coil, N = 30
    Current, I = 6.0A
    Uniform horizontal magnetic field, B = 1.0 T
    Angle made by coil with the magnetic field lines, α = 60°
    Radius of the circular coil, r = 8.0 cm = 8 x 10-2m.

    Therefore,
    Area of the coil, A = πr2
                             = 227×8×10-22
                           A = 2.01 × 10-2m2

    (a)  Now,
    Torque that must be applied to prevent the coil from turning
                          τ= NBIA sin α

            =30 × 6.0 × 1.0 × (2 × 10-2) × sin 60°

          τ = 30 × 6 × 1 × 2 × 32×10-2   = 3.12 Nm.

    (b)  If the area of the loop is the same, the torque will remain unchanged as the torque on the planar loop does not depend upon the shape.

    Question 13
    CBSEENPH12037582

    Two concentric coils X and Y of radii 16 cm and 10 cm respectively lie in the same vertical plane containing the north to south direction. Coil X has 20 turns and carries a current of 16 A ; coil Y has 25 turns and carries a current of 18 A. The sense of current in X is anti clockwise and in Y, clockwise, for an observer looking at the coil facing west. Give the magnitude and direction of the net magnetic field due to the coils at their centre.

    Solution

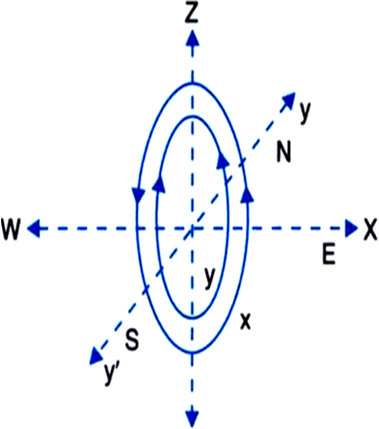

    Consider X axis in East-West directions and YY’ in North-South direction respectively.
    Plane of coil is in Y-Z axis plane.
    Direction of magnetic field due to coil X is in East, and due to coil Y is in west direction.



    Given, for coil X
    Radius of coil, rx = 16 cm = 0.16 m
    Number of turns, Nx = 20
    Current passing through coil, Ix = 16 A

    Magnetic field at the centre of coil X is

                Bx = μ0IxNx2rx      = 4π×10-7×16×202×0.16      = 4 π × 10-4 T

    The current in the coil X is anticlockwise therefore, the field Bx is directed towards east.

    Given, for coil Y
    Radius, ry = 10 cm = 0.10 m
    Number of turns, Ny = 25
    Current pasing through, Iy = 18 A

    Magnetic field at the centre of coil Y is

            By = μ0IyNy2ry      = 4π×10-7×18×252×0.10      = 9π×10-4T

    The direction of magnetic field induction By is towards west.

    Hence,

    Net magnetic field = By – Bx
    = 9π x 10–4 – 4π x 10–4
    = 5π x 10–4
    = 1.6 x 10–3 T (Towards west).

    Question 14
    CBSEENPH12037583

    A magnetic field of 100 G (1 G = 10–4 T) is required which is uniform in a region of linear dimension about 10 cm and area of cross section about 10–3 m2. The maximum current - carrying capacity of a given coil of wire is 15 A and the number of turns per unit length that can be wound round a core is at most 1000 turns m–1. Suggest some appropriate design particulars of a solenoid for the required purpose. Assume the core is not ferromagnetic.



    Solution

    Given,
    Magnetic field, B = 100 G =100 ×10-4 T = 10-2T
    Maximum current carrying capacity, I = 15 A
    Number of turns per unit length, n =1000 m-1

    Magnetic field insie a solenoid is

                           B = μ0 nl
    Therefore,
                          nI= Bμ0    = 10-24π × 10-7    = 1054π   = 7961.5 ~ 8000

    We may have,

    I = 10 A  and   n = 800 /m as per the requirement

    The solenoid may have length 50 cm and cross section 5 x 10–3 m2 (five times given values) so as to avoid edge effects etc.

    Question 15
    CBSEENPH12037584

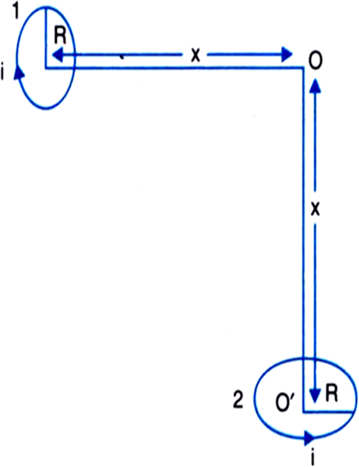

    For a circular coil of radius R and N turns carrying current I, the magnitude of the magnetic field at a point on its axis at a distance x from its centre is given by,
    B = μ0IR2N2x2+R23/2
    (a)    Show that this reduces to the familiar result for field at the centre of the coil.

    (b)    Consider two parallel co-axial circular coils of equal radius R, and number of turns N, carrying equal currents in the same direction, and separated by a distance R. Show that the field on the axis around the mid-point between the coils is uniform over a distance that is small as compared to R, and is given by,
    B = 0.72 μ0NIR, approximately.
    [Such an arrangement to produce a nearly uniform magnetic field over a small region is known as Helmholtz coils.]

    Solution

    (a) Given, a circular coil of radius r and N turns carrying current I.

    Then,
    Magnitude of magnetic field at a point on axis at a distance x from centre is given by,
                B = μ0IR2N2x2+R23/2   (axial line)

    At the centre of the coil x =0

    Therefore,

                    B = μ0IR2N2R3

    i.e.,           B = μ0IN2R

    which is same as the standard result.

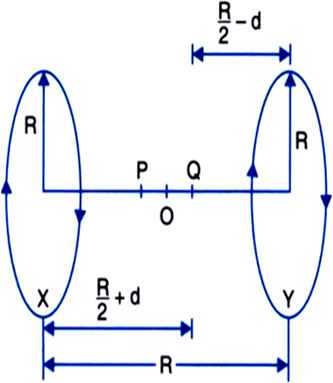

    (b) In figure, O is a point which is mid-way between the two coils X and Y.



    Let, Bx be the magnetic field at Q due to coil X.
    Then,

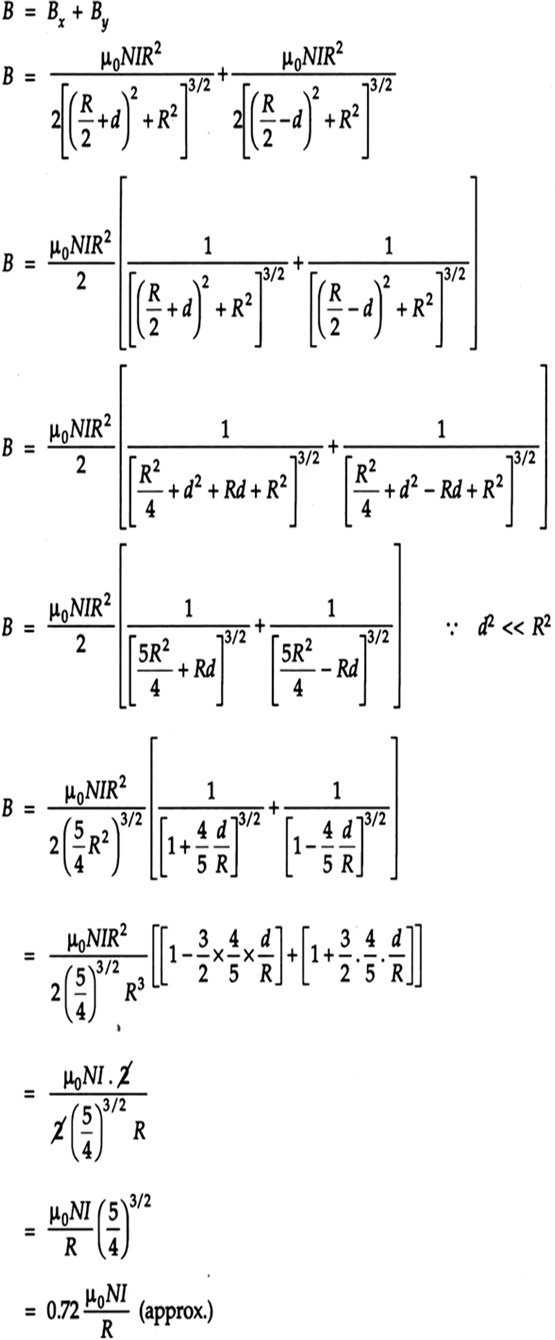

                   Bx = μ0NIR22R2+d2+R23/2

    If, By is the magnetic field at Q due to coil Y, then
                  By = μ0NIR22R2-d2+R23/2

    The currents in both the coils X and Y are flowing in the same direction.

    So, the resultant field is given by

    Question 16
    CBSEENPH12037585

    A toroid has a core (non-ferromagnetic material) of inner radius 25 cm and outer radius 26 cm around which 3500 turns of wire are wound. If the current in the wire is 11 A, what is the magnetic field (a) outside the toroid (b) inside the core of the toroid (c) in the empty space surrounded by the toroid?

    Solution

    Given,
    Inner radius of torroid core, r1 = 0.25 m
    Outer radius, r2 = 0.26 m
    Number of turns, N = 3500
    Current in the wire, I = 11 A

    (i)    The magnetic field is zero outside the toroid because, there is no current flowing on outside of the torroid.

    (ii) Magnetic field inside the core of the toroid,
                         B = μ0nI                B = μ0NIl          n = Nl Number of turns per unit length

    I = 2πr1+r22
     = πr1+r2= π0.25+0.26 = π×0.51 m

    Putting the values
                                B = 4×10-7 × 3500 × 11π × 0.51     = 3.02 × 10-2T

    (iii) The magnetic field is zero in the empty space surrounded by the toroid also.

    Question 17
    CBSEENPH12037586

    Answer the following questions:
    A magnetic field that varies in magnitude from point to point but has a constant direction (east to west) is set up in a chamber. A charged particle enters the chamber and travels undeflected along a straight path with constant speed. What can you say about the initial velocity of the particle?

    Solution

    The force on a charged particle moving in a magnetic field is given by F = qvB sin θ.
    If the force acting on a particle is 0 then, the charged particle will travel undeflected along a traight path with constant speed in the presence of magnetic field. And, the force acting is 0 when, θ = 0° or180° . That is, when initial velocity v is either parallel or anti-parallel to B.

    Sponsor Area

    Question 18
    CBSEENPH12037587

    Answer the following questions:
    A charged particle enters an environment of a strong and non-uniform magnetic field varying from point to point both in magnitude and direction, and comes out of it following a complicated trajectory. Would its final speed equal the initial speed if it suffered no collisions with the environment?

    Solution
    Yes, the final speed would equal the initial speed because, the magnetic force can change the direction of velocity and not its magnitude. The force which is exerted by the magnetic field on the charged particle is always perpendicular to it's motion and hence, does no work.
    Question 19
    CBSEENPH12037588

    Answer the following questions:
    An electron travelling west to east enters a chamber having a uniform electrostatic field in north to south direction. Specify the direction in which a uniform magnetic field should be set up to prevent the electron from deflecting from its straight line path.

    Solution
    The electrostatic field is directed towards south. Since the electron is a negatively charged particle, therefore, the electrostatic field shall exert a force directed towards north.
    So, if the electron is to be prevented from deflection from straight path, the magnetic force on the electron should be directed towards south.
    Magnetic force is given by,

                   F = -ev × B.

    Fm is towards south,  v is travelling towards east.

    Applying Fleming's Left-Hand Rule, we find that
    magnetic field B should be in the vertically downward direction.
    Question 20
    CBSEENPH12037589

    An electron emitted by a heated cathode and accelerated through a potential difference of 2.0 kV, enters a region with uniform magnetic field of 0.15 T. Determine the trajectory of the electron if the field (a) is transverse to its initial velocity, (b) makes an angle of 30° with the initial velocity.

    Solution

    Potential difference, V = 2 KV = 2000 volt
    Uniform magnetic field, B = 0.15 T

    (a) If magnetic field is transverse to initial velocity of electron then, the velocity vector has no component in the direction of magnetic field.
    ∴ Force on electron = Bev sin 90° = Bev

    This force acts as the centripetal force

                   Bev = mv2r

                          r = mveB                       ...(1)

    But,         12mv2 =eV                         ...(2)

                  v=2eVm
            r = meB2eVm               [From 1, 2]

                v = 1B2mVe   = 10.152×9.1×10-31×20001.6 × 10-19m    = 10-3m = 1.0 mm.

    The electron would move in a circular trajectory of radius 1.0 mm. The plane of the trajectory is normal to B.

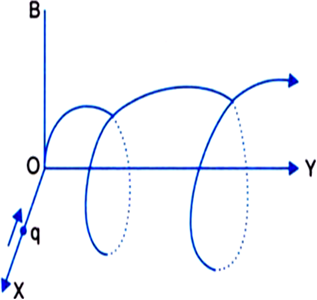

    (b) If velocity makes an angle 30° with the direction of magnetic field, the velocity can be resolved into v and v||

    i.e., v cos 30° and v sin 30° respectively.

    Due to v the electron will move on a circular path. The resultant path will be a combination of straight line motion and circular motion which is called helical.

    Thus,        evB sin θ =  m(v sin θ)2rn

    for circular motion of radius rn

                     ev × B = mv2rn
                            v = v sin θ

                             rn = mv sin θeB

     rn = 9.1 × 10-31 × 2.65 × 107 × sin  301.6 × 10-19 × 0.15

        = 0.49 × 10-3m  = 0.49 mm  0.5 mm

    The linear velocity is   = v cos θ
                                  = 2.65 × 107 × cos 30°= 2.65 ×107×32= 2.3 × 107 ms-1

    Thus, the electron moves in a helical path of radius 0.49 mm with a velocity component of 2.3 x 107 ms–1 in the direction of magnetic field.

    Question 21
    CBSEENPH12037590

    A magnetic field set up using Helmholtz coils is uniform in a small region and has a magnitude of 0.75 T. In the same region, a uniform electrostatic field is maintained in a direction normal to the common axis of the coils. A narrow beam of (single-species) charged particles, all accelerated through 15 kV, enters this region in a direction perpendicular to both the axis of the coils and the electrostatic field. If the beam remains undeflected when the electrostatic field is 9.0 x 105 Vm–1, make a simple guess as to what the beam contains. Why is the answer not unique?

    Solution

    Given,
    Magnetic field set up, B= 0.75 T
    Electrostatic field, E = 9.0 × 105 V/m

    Since, the magnetioc field is perpendicular to the initial velocity of electron, therefore the electron will move in a circular path.

    Kinetic energy of the electron



               12mv2 = eV
                   em = v22V

                   em = 1.2 × 106 × 1.2 × 1062 × 15 × 103em = 0.245×109em = 0.048 × 109em = 4.8 × 107 coulomb/kg

    This charge to mass ratio is equivalent to charge to mass ratio of proton so the charge particle may be deuterons.
    However, the answer is not unique.
    This is because He++2e2m and Li++3e3m have also the same value of em.

    Question 22
    CBSEENPH12037591

    A straight horizontal conducting rod of length 0.45 m and mass 60 g is suspended by two vertical wires at its ends. A current of 5.0 A is set up in the rod through the wires.
    (a)    What magnetic field should be set up normal to the conductor in order that the tension in the wires is zero?
    (b)    What will be the total tension in the wires if the direction of current is reversed keeping the magnetic field same as before?
    (Ignore the mass of the wires.) g = 9.8 m s–2.

    Solution

    Given,
    Length of the rod, l= 0.45 m
    mass of the suspension, m = 60 g = 60 x 10–3 kg
    Current carried by the conductor, I = 5.0 A

    (a) Force needed to balance the weight of the rod,

                     F = mg = 0.06 kg × 9.8= 0.588 N

    Using the formula,

                      F = BIl

                      B = FI l    = 0.5885.0 × 0.45   = 0.26 T

    If the direction of current is from right to left then the direction of magnetic field is horizontal and normal to the conductor and the force due to magnetic field will be upwards (Fleming's left hand rule).

    (b) If the direction of current is reversed then ‘BIl’ and ‘mg’ will act vertically downwards.
    Therefore,
    Total tension in the wires = BIl + mg
                                        = 0.588 + 0.588
                                        = 1.176 N.



    Question 23
    CBSEENPH12037592

    The wires which connect the battery of an automobile to its starting motor carry a current of 300 A (for a short time). What is the force per unit length between the wires if they are 70 cm long and 1.5 cm apart? Is the force attractive or repulsive?

    Solution

    Given,

    Current on first conductor, I1 = 300 ACurrent on second conductor, I2 = 300 ADistance between the conductors,  r = 1.5 cm = 1.5 × 10-2 m Length of the conductor, l = 70 cm

    Using Biot -Savart law,

                                 F= μ0I1I2l2πr

    This implies,

    Force per unit length =

    Fl = 4π×10-7×300×3002π×0.015

         = 1.2 Nm-1

    The total force between the wires is F = fl

                                           = 1.2 × 0.70 N = 0.84 N.

    The force is repulsive since the current will flow in opposite direction in the two wires.

    Question 24
    CBSEENPH12037593

    A uniform magnetic field of 1.5 T exists in a cylindrical region of radius 10.0 cm, its direction parallel to the axis along east to west. A wire carrying current of 7.0 A in the north to south direction passes through this region. What is the magnitude and direction of the force on the wire if,
    (a) the wire intersects the axis,
    (b) the wire is turned from N-S to northeast-northwest direction,
    (c) the wire in the N-S direction is lowered from the axis by a distance of 6.0 cm?

    Solution

    a)
    Diameter of cylindrical region = 20 cm = 0.20 m
    Clearly,
    length of conductor, l = 0.20 m.
    Also, θ = 90°
    Current carried by conductor, I = 7A
    Uniform magnetic field, B= 1.5 T

    Force, F = BIl sin θ
                = 1.5 x 7 x 0.20 sin 90° N
                = 2.1 N

    Using Fleming's left-hand rule, we find that the force is directed vertically downwards.

    (b) If lis the length of the wire in the magnetic field, then,

    F1 = BIl1 sin 45°

    But , l1 sin 45° = l
    ∴ F1 = BIl
           = 1.5 x 7 x 0.20 N
           = 2.1 N

    The force is directed vertically downwards( using Fleming's left hand rule).

    (c) When the wire is lowered by 6 cm from axis, the length of the wire in the cylindrical magnetic field is 2x.



    Now considering the right angled triangle as shown in fig. above,

                       x2 = 102-62x = 64 = 8 cm
                  2x = 16 cm.

                     F2 = BIl2      = 1.5 × 7 × 0.16 N     = 1.68 N

    The force is directed vertically downwards.

    The result is true for any angle between current and direction of B. This is because I sin θ remains constant i.e., 20 cm.

    Question 25
    CBSEENPH12037594

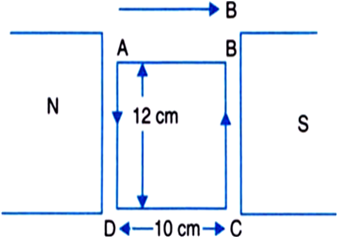

    A uniform magnetic field of 3000 G is established along the positive z-direction. A rectangular loop of sides 10 cm and 5 cm carries a current 12A. What is the torque on the loop in the different cases shown in the figure below. What is the force on each case? Which case corresponds to stable equilibrium?


    Solution
    (a) Given,
    Magnetic field along the positive z-direction = 3000 G = 3000 x 10–4 T = 0.3 T
    Current carried by the loop, I = 12 A
    Area of rectangular loop, A = 10 x 5 cm2
                                          = 50 x 10–4 m2

    Torque on the loop is given by,
                      τ = BIA cos θ

    where, θ is the angle between the plane of loop and direction of magnetic field.
    Here, θ = 0° .

    Therefore, torque is, τ = 0.3 x 12 x 50 x 10–4
                                    = 1.8 x 10–2 Nm.

    Using Fleming's left hand rule we can say that the direction of torque is along negative y direction.

    (b) The torque acting is the same as in case (a) but, the direction of torque is along side 10 cm.

    (c) The magnitude of torque is equal to 1.8 x 10–2 Nm along - x direction of torque on lower arm of 5 cm towards – y axis.
    (d)    This case is similar to (c). Direction of torque is 60°.
    (e)    zero. (∵ angle between plane of loop and direction of magnetic field is 90°)
    (f)    zero.

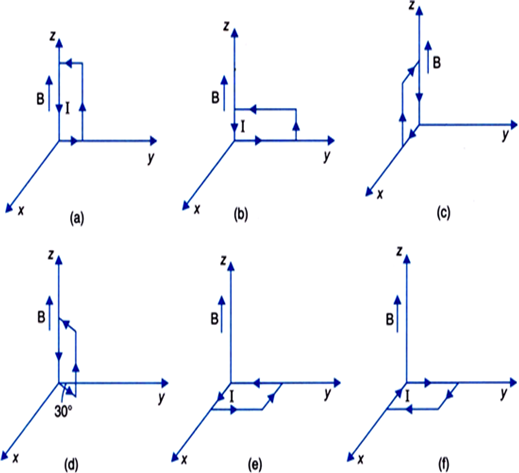

    Force is zero in each case. Stable equilibrium is corresponded by case (e).
    Question 26
    CBSEENPH12037595

    A circular coil of 20 turns and radius 10 cm is placed in a uniform magnetic field of 0.10 T normal to the plane of the coil. If the current in the coil is 5.0 A, what is the
    (a)  total torque on the coil,
    (b) total force on the coil,
    (c) average force on each electron in the coil due to the magnetic field?
    (The coil is made of copper wire of cross-sectional area 10–5 m2, and the free electron density in copper is given to be about 10–29 m–3.)


    Solution

    Given,
    Number of turns, N = 20
    Radius of the coil, r = 10 cm = 10 x 10–2 m
    Magnetic field, B = 0.10 T
    Current carried, I = 5.0 A
    θ = 0° (angle between field and normal to the coil)
    Area of the coil, A = πr2
                              = π x (10 x 10–2)2
                              = π x 10–2 m2

    (a) Torque, τ = NIBA sin θ
                       = 20 x 5.0 x 0.10 x π x 10–2 sin 0°
                       = 20 x 5.0 x 0.10 x π x 10–2 x 0 = 0

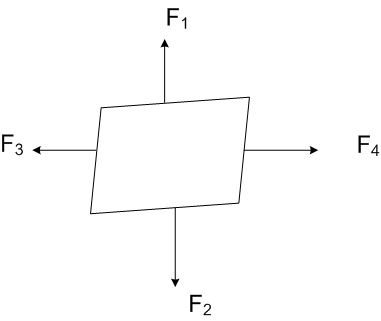

    (b) Net force on a planer current loop in a magnetic field is always zero, as net force due to couple of force is zero.

    (c) If vd is the drift velocity of electron

                           F = qv x B
                             = evd. B sin 90°

    Force on one electron = Be  vd = BeIneA = BInA
    Here,

                        n = 1029 m-3,   A  =10-5m2

     Force on one electron = 0.10 × 5.01029 × 10-5 = 5 × 10-25N.


    Question 27
    CBSEENPH12037596

    A solenoid 60 cm long and of radius 4.0 cm has 3 layers of windings of 300 turns each. A 2.0 cm long wire of mass 2.5 g lies inside the solenoid (near its centre) normal to the axis; both the wire and the axis of the solenoid are in the horizontal plane. The wire is connected through two leads parallel to the axis of solenoid to an external battery which supplies a current of 6.0 A in the wire. What value of current (with appropriate sense of circulation) in the windings of the solenoid can support the weight of the wire? g = 9.8 ms–2.

    Solution

    Given a solenoid.
    Length of the solenoid,l = 60 cm = 0.60 m
    Total number of turns, N = 3 x 300 = 900
    Length of the wire,  l1 = 2.0 cm = 0.02 m
    mass of the wire lying inside the solenoid,m 2.5 g = 2.5 x 10–3 kg
    Current carried by the wire,I1 = 6.0 A

    Let, current I be passed through the solenoid windings, then,
    Magnetic field produced inside the solenoid due to current is

                         B = μ0NIl

    Force acting on wire, =I1 l1   B = I1 l1μ0NIl

    The wire can be supported if the force on wire is equal to the weight of wire, i.e.

                   I1l1  μ0NIl=mg

                I = mglI1l1μ0N  = 2.5 × 10-3×9.8×0.66.0×(0.02)×(4π×10-7)×900

                     = 108.27 A


    Question 28
    CBSEENPH12037597

    A galvanometer coil has a resistance of 12 Ω and the metre shows full scale deflection for a current of 3 mA. How will you convert the metre into a voltmeter of range 0 to 18 V?

    Solution

    Given, a galvanometer coil.
    Resistance on the galvanometer, R = 12 Ω
    Current on galvanometer, Ig =3 mA = 3 x 10–3 A
    Voltage ,V = 18 V

    By using formula,

                          V = Ig(R+Rg)

                         VIg = R+Rg
    or,
                          R = VIg-Rg     = 183×10-3-12R = 6 × 103-12 = 5988Ω

    Question 29
    CBSEENPH12037598

    A galvanometer coil has a resistance of 15 Ω and the metre shows full scale deflection for a current of 4 mA. How will you convert the metre into an ammeter of range 0 to 6 A?

    Solution
    Given, a galvanometer coil.
    Resistance on galvanometer, G = 15 Ω
    Current pasing through the galvanometer,I
    g = 4 mA = 4 x 10–3 A
    Current across the ammeter, I = 6 A

    Using formula,

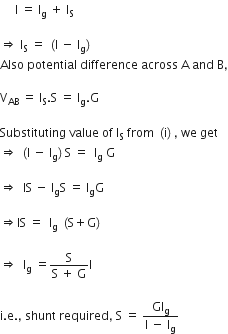

                           S = Ig . GI-Ig

    Putting values,
                            S = 4 × 10-3 × 156-0.004    = 60 × 10-35.996      = 10 × 10-3Ω

                             S = 10 m Ω

    Therefore, a resistance of 10mΩ should be connected so as to convert the galvanometer into an ammeter.
    Question 30
    CBSEENPH12037599

    An electron does not suffer any deflection while passing through a region of uniform magnetic field. What is the direction of the magnetic field?

    Solution
    Since. the electron goes undeflected the direction of magnetic field B is  parallel or antiparallel to the velocity v of electron.

    As,          F = qv × B = 0

    Since, v || B

    θ =0o or 1800



    Question 31
    CBSEENPH12037600

    What are the units of magnetic permeability?

    Solution
    The unit of magnetic permeability is Henry per metre or Tesla metre/ampere (TmA–1).
    Question 32
    CBSEENPH12037601

    Magnetic field lines can be entirely confined within the core of a toroid, but not within a straight solenoid. Why?

    Solution
    The magnetic field is given by B=μoN I
    where, I is the current flowing through the torroid or solenoid.
    In a torroid, the magnetic field due to individual wires cancel out everywhere except for the core.
    But, in a solenoid magnetic field lines due to individual wires cancel out longitudnally and add up horizontally. Hence, magnetic field lines exist even outside the core.

    Question 33
    CBSEENPH12037602

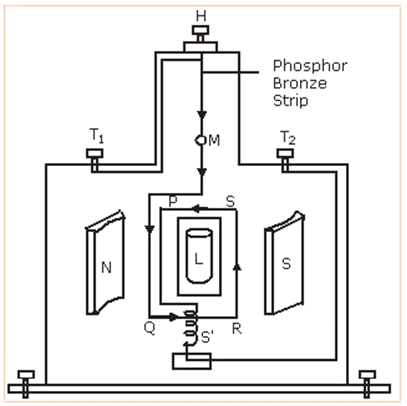

    The coils, in certain galvanometers, have a fixed core made of a non-magnetic matallic materials.
    Why does the oscillating coil come to rest so quickly such a core?

    Solution
    Eddy current acting in the core gives rise to restoring torque. And, this restoring torque tries to bring back the coil back to it's original position. Hence, the oscillating coil comes to rest quickly.
    Question 34
    CBSEENPH12037603

    Two circular coils made of similar wires but of radii 20 cm and 40 cm are connected in parallel.
    What will be the ratio of the magnetic field at their centres?

    Solution

    Given, two circular coils mad of similar wires.
    Radius of first wire, r1 = 20 cm
    Radius of second wire, r= 40 cm
    Magnetic field at the centre of circular coil of radius r, turns N, and current I passing in coil is
     B = μ0NI2rB = μ0N2rVR                                       [R = resistance of coil]B = μ0N2rV2πrx                             [x is resistance per unit length]B = μ0NV4πxr2

    As coils are is parallel so potential difference ‘V’ are equal in both coils

                    V1r2
                      B1B2 = r22r12
                      B1B2 = 40202B1B2 = 4    B1:B2 = 4:1



    Question 35
    CBSEENPH12037604

    What is the direction of the force acting on a charged particle q, moving with a velocity v in a uniform magnetic field B?

    Solution
    The force acting on a charged particle q is given by,
                     F = qv×B

    Magnetic force is always normal to plane of V and B.
    Question 36
    CBSEENPH12037605

    Magnetic lines of force are endless. Comment.

    Solution

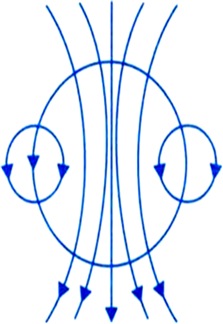

    This is because magnetic lines of force are continuous closed loops and, monopole is not possible for the magnetic field to exist.
    Question 37
    CBSEENPH12037606

    An electron is moving along +ve x-axis in the presence of uniform magnetic field along +ve y-axis. What is the direction of force acting on it?

    Solution
    The direction of the force is along negative z axis. ( Using Fleming's right hand rule )
    Question 38
    CBSEENPH12037607

    A magnetic dipole is situated in the direction of a magnetic field. What is its potential energy? If it is rotated by 180°, then what amount of work will be done?

    Solution

    Given, magnetic dipole is situated in the direction of magnetic field. Therefore θ = 0o.
    Therefore,
    Potential energy of dipole, P.E = – MB cos 0°
                                              = – MB

    If the dipole is rotated by an angle of 180°.
    Work done = MB (cos 0° – cos 180°)
                    = MB (1 + 1)
                    = 2 MB.

    Question 39
    CBSEENPH12037608

    Define magnetic flux. Give its SI unit.

    Solution
    The total number of magnetic lines of force crossing the surface A in a magnetic field B is termed as magnetic flux.

    Magnetic flux is given by Φ = BA cos θ .

    Its SI unit is Weber.

    It is a scalar quantity.

    Sponsor Area

    Question 40
    CBSEENPH12037609

    What is the approximate distance upto which earth's magnetic field extends?

    Solution
    The magnetic field of earth extends to nearly five times the radius of the earth.
    i.e., 5 x (6.4 x 10
    3) km = 3.2 x 104 km.

    where, radius of the earth, r= 6.4 x 103
    Question 41
    CBSEENPH12037610

    An electron moving through a magnetic field does not experience any force. Under what condition is this possible?

    Solution
    The force acting on a charged particle in the presence of a magnetic field is given by,
                             F = qvB sin θ
    So either electron is moving parallel to the direction of the magnetic field or it is at rest.
    Question 42
    CBSEENPH12037611

    An electron moving with a velocity of 107 m/s enters a uniform magnetic field of 1 T along a direction parallel to the field. What would be its trajectory?

    Solution
    The electron will move undeflected in a straight line as, the particle is travelling in a direction paralle to the direction of magnetic field.
                          F = qvB sin θ [ θ = 0 ]
    Question 43
    CBSEENPH12037612

    Write one condition under which an electric charge does not experience a force in a magnetic field.

    Solution
    When the electrically charged particle is either at rest (v = 0) or parallel to the direction of magnetic field i.e, when θ = 0o, it does not experience any force in a magnetic field.
    Question 44
    CBSEENPH12037613

    What is a shunt? State its SI unit.

    Solution
    A small resistance connected in parallel with a galvanometer so as to convert it into an ammeter is called a shunt. SI unit of shunt is ohm.
    Question 45
    CBSEENPH12037614

    Write SI unit of magnetic field B.

    Solution
    SI unit of magnetic field is tesla (T).
    Question 46
    CBSEENPH12037615

    A charge q is moving in a region where both the magnetic field B and electric field E are simultaneously present. What is the Lorentz force acting on the charge?

    Solution

    Force acting due to the presence of electric field is qE
    Force acting because of the presence of magnetic field is  qv×B
    Thus, the net force is,
                       F = qE + qv×B

                       F = qE+v×B

    which is called as the Lorentz force.





    Question 47
    CBSEENPH12037616

    In the diagram below is shown a circular loop carrying current I. Show the direction of the magnetic field with the help of lines of force.


    Solution
    The magnetic force lines of a circular loop carrying current I are shown as follows.


    Question 48
    CBSEENPH12037617

    The force Fexperienced by a particle of charge ‘q’ moving with a velocity ‘v’ in a magnetic field ‘B’ is given by F = qv × B. Which pairs out of these vectors are always at right angles to each other?

    Solution
    The force acting on the particle is always perpendicular to the velocity of the particle and also, the magnetic field .

    i.e., F  v  and F  B.
    Question 49
    CBSEENPH12037618

    A certain proton moving through a magnetic field region experiences maximum force. When does this occur?

    Solution
    The force experienced by a particle is maximum when, proton moves perpendicular to the magnetic field.

    v × B  is maximum( θ = 90°. )

    That is, velocity component is perpendicular to magnetic field.
    Question 50
    CBSEENPH12037619

    Under what conditions is the force acting on a charge moving through a uniform magnetic field minimum?

    Solution
    When a charge is moving parallel or antiparallel to the direction of the magnetic field, the force acting on the charged particle is zero or minimum.
    Question 51
    CBSEENPH12037620

    What is the nature of magnetic field in a moving coil galvanometer?

    Solution
    In a moving coil galvanometer, the magnetic field is radial in nature.
    Question 52
    CBSEENPH12037621

    Two wires of equal lengths are bent in the form of two loops. One of the loops is square shaped whereas the other loop is circular. These are suspended in a uniform magnetic field and the same current is passed through them. Which loop will experience greater torque? Give reasons.

    Solution
    Torque on a current carrying loop is given by,

                          τ = B I A

    where, A is the area of the loop.

    For a wire of given length,

    Area of circular loop = πr2 and,
    Area of square loop = a2

    Circular loop has greater area than the square loop. So the circular loop will experience greater torque in the magnetic field, because torque has direct dependance on area of the loop.

    Question 53
    CBSEENPH12037622

    Write the SI unit of (i) magnetic pole strength (ii) magnetic dipole moment of a bar magnet.

    Solution

    (i) The SI unit of magnetic pole strength is Ampere-metre (A-m).

    (ii) The SI unit of magnetic dipole strength is Ampere metre(Am2).

    Question 54
    CBSEENPH12037623

    Give two factors by which the current sensitivity / voltage sensitivity of a moving coil galvanometer can be increased.

    Solution

    Current sensitivity or voltage sensitivity of a moving coil galvanometer can be increased by :

    (i) Increasing the number of turns in the galvanometer coil.
    (ii) Decreasing the torsion constant of the suspension fibre.

    Question 55
    CBSEENPH12037624

    A beam of protons with a velocity 4 x 105 m/s enters a uniform magnetic field of 0.3 T at an angle 60° to the magnetic field. Find the radius of the helical path taken by the proton beam. Also find the pitch of the helix mp = 1.67 x 10–27 kg.

    Solution
    Given, the velocity of protons, v = 4 x 105 m/s
    Uniform magnetuc field, B = 0.3 T
    Angle made by particle with magnetic field = 60o
    The magnetic force will act like centripetal force.
    Therefore,

    Using the formula,
                               r = mvqB

               r = 1.67 × 10-27 × 4 × 105 sin 60°1.6 × 10-19× 0.3   = 1.2 × 10-2    = 1.2 cm

    Pitch is the distance moved along the magnetic field in one rotation.

    Therefore,


    T =2πrv sin θ = 2.175 × 10-7 S

                   P = v cos θ. T

                     = 4 × 105 × 12×2.175 × 10-7 = 4.35 cm
    Question 56
    CBSEENPH12037625

    An electron moves around the nucleus in a hydrogen atom of radius 0.51 Å, with a velocity of 2 x 105 m/s. Calculate the following:
    (i)    the equivalent current due to orbital motion of electron,
    (ii)    the magnetic field produced at the centre of the nucleus
    (iii) the magnetic moment associated with the electron.

    Solution

    Given,
    Radius, r =  0.51 Å = 0.51 x 10–10 m
    velocity, v = 2 x 105 m/s

    (i) Equivalent current due to orital motion of electron is given by,

                 I = et = e2πr/v = ev2πr

                 I = 1.6 × 10-19 × 2 × 1052 × 3.14 ×0.51 × 10-10

                 I = 3.2 × 10-43.2028  = 0.99 × 10-4  = 10-4 A

    (ii) Magnetic field produced at the centre of the electron is,
                         B = μnI

                          B = 4π×10-7×1×10-4

                          B = 4×3.14×10-11    =12.56 × 10-11     = 1.256 × 10-10T.

    (iii) Magnetic moment assosciated with the electron

               M = IA     = I (πr2)     = 10-4×3.14×(0.51 × 10-10)2     = 3.14 × 0.2601 × 10-4 × 10-20

               M = 0.816 × 10-24     = 8.16 × 10-25  Am2

    Question 57
    CBSEENPH12037626

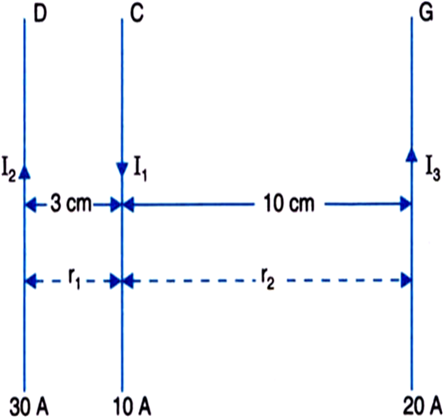

    Three long straight and parallel wires, carrying currents, are arranged as shown in the figure below. Find the force experienced by a 25 cm length of wire C.

    Solution
    Length of the wire on which force is experienced, l = 25 cm
    As seen in the fig. the direction of current in C and D wires are in opposite direction so, force of repulsion F will act on C towards right side. Similarly, due to G it will be in left hand side so resultant force on C due to wires D and G will be F.
    Thus,

     F = F1-F2   = μ0I1I2l2πr1-μ0I1I3l2πr2

       = μ0I1l2πI2r1-I3r2

       = 4π × 10-7 × 10 × 252π300.03-200.10= 5 × 10-7 × 80= 400 × 10-7

    Fc = 4 x 10–5 N towards left side.
    Question 58
    CBSEENPH12037627

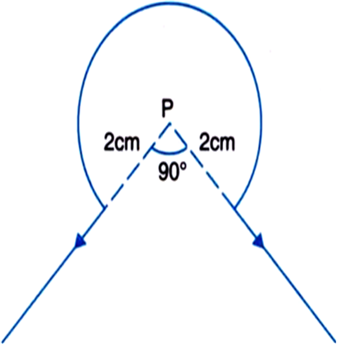

    The wire shown in figure below carries a current of 60 A. Find the magnetic field B at P.


    Solution
    Given, current carried by the wire, I= 60 A .

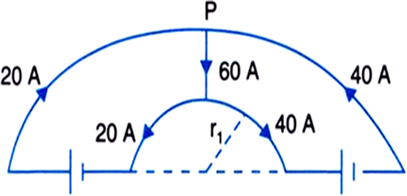

    The field at P arises from 3/4th of the circular loop only because P lies on the straight wires themselves.
    Thus,

            B = μ04π2πlrθ360θ = 270°Therefore,   B =3×10-7×2π×604×0.02   = 1.4 × 10-3T
    Question 59
    CBSEENPH12037628

    What is the toroid? Using Ampere's circuital law calculate the magnetic field inside the toroid.

    Solution
    When a solenoid is in the form of a ring then it is treated as toroid. Toroid is basically, a hollow circular ring on which a large number of turns of wire are closely wound.

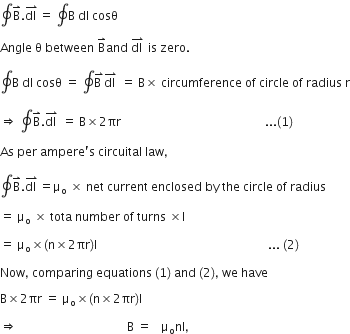

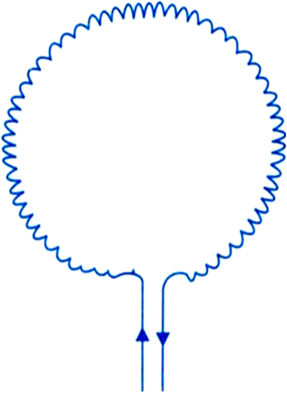

    Consider a toroid carrying current I and has N turns. The magnetic field is set up inside the turns of the toroid. The magnetic lines of force inside the toroid are concentric circles.
    By
    symmetry the magnitude of the field B is same at all points on the circle of radius r and is directed tangentially to the circle at any point.

             B. dl =  B dl cosθ°
                B. dl =  B dl cos0°
                B. dl = B 2πr

    By applying Ampere's circuital law,
                   B.dl = μ0 × total current passing through circle of radius r.   B 2πr = μ0 × N × 2πrl
                     B = μ0NI
    Question 60
    CBSEENPH12037629

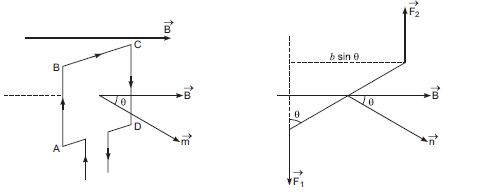

    A 50 turn coil as shown in the figure below carries of 2 A in a magnetic field B = 0.25 Wb m –2. Find the torque acting on the coil. In what direction will it rotate?

    Solution

    Number of turns on the coil, N = 50
    Current carried by the coil, I= 2A
    Magnetic field,B = 0.25 Wb m –2
    Torque acting on the coil, τ = ?

    As seen in the fig.
    The sides AB and DC are along the field lines hence, the force on each side is zero.
    The force on each vertical wire is given as
                         τ = BINA sin θ
                         τ = 0.25 x 2 x 50 x 0.12 x 0.1 sin θ
                           = 0.3 N-m (clockwise direction)

    Question 61
    CBSEENPH12037630

    Increasing the current sensitivity may not necessarily increase the voltage sensitivity of galvanometer. Justify.

    Solution
    Let the deflection produced in applying voltage V is φ then,

    voltage sensitivity = φv=NBAkR

    The voltage sensitivity may be increased by
    (i) increasing N, B, A  and,
    (ii) decreasing k.

    Current sensitivity is deflection per unit current whic is , given by φI
    current sensitivity = NBAk

    It can be increased by
    (i) increasing NBA
    (ii) decreasing k.

    There is a factor of resistance R in voltage sensitivity.

    Hence, increasing the current sensitivity may not necessarily increase the voltage sensitivity of a galvanometer.
    Question 62
    CBSEENPH12037631

    In an exercise to increase current sensitivity of a galvanometer by 25%, its resistance is also increased 1.5 times. How will the voltage sensitivity of the meter be affected ?

    Solution

    Here given,
    Resistance is increased to 1.5 times.
    i.e, R' = 1.5 R

    Current sensitivity is increased by 25%.

    i.e., I's = Is+25100Is = 125100Is = 54Is

    Initially, voltage sensitivity , Vs = IsR   and, V's = Is'R'       = (5/4) Is1.5R = 56Vs

    Therefore,

    % increase in voltage sensitivity= 1-V'sVs × 100                     = 1-56×100 = 16.7%

    Question 63
    CBSEENPH12037632

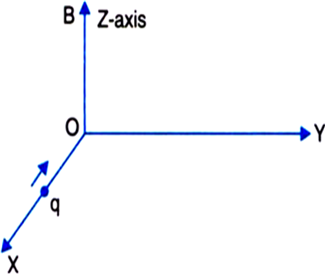

    A charge ‘q’ moving along the -X-axis with a velocity v is subjcted to a uniform magnetic field B acting along the Z-axis as it crosses the origin O.

    (i)    Trace its trajectory.
    (ii)   Does the charge gain kinetic energy as it enters the magnetic field? Justify your answer.

    Solution
    Given,

    (i) As the charged particle is moving along negative x axis subjected to uniform magnetic field along Z axis it will experience a force when it crosses the origin F=q (v× B ).
    The trajectory of charged particle q moving along (-)ve X-axis will be helical.


    (ii) The force which is acting on the charged particle due to it's magnetic field is always perpendicular to the velocity at each point. Therefore, the field does no work done on a moving charged particle. Hence, it will not gain any kinetic energy. Moreover, magnitude of velocity does not change. Only, the direction of velocity changes for the charged particle.

    Question 64
    CBSEENPH12037633

    Two straight wires A and B of lengths 10 m and 12 m carrying currents of 4.0 A and 6.0 A respectively in opposite directions lie parallel to each other at a distance of 0.03 m. Estimate the force on a 15 cm section of the wire B near its centre.

    Solution
    Given,
    Length of wire A = 10 m
    Length of wire B = 12 m
    Current carried by A= 4 A
    Current carried by B = 6 A
    Distance between the two parallel wires, r = 0.03 m

    Force per unit length acting on the wire,

    Fl  = μ0I1I22πrNm-1        = 4π×10-7×4×62π×0.03        = 1.6 × 10-4 Nm-1

    Force on 15 cm section of wire B (near its centre),
    F= 1.6 x 10
    –4 x 0.15 N
     = 2.4 x 10
    –5 N

    The force is repulsive as the currents are in opposite directions; the direction of force is normal to the wire away from A.


    Question 65
    CBSEENPH12037634

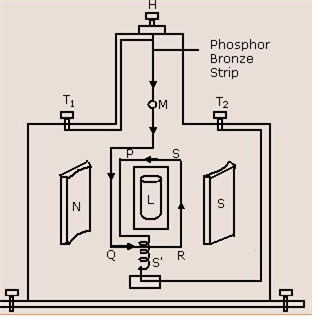

    Derive an expression for the torque acting on a loop of N turns, area A, carrying current I, when held in a uniform magnetic field.
    With the help of circuit, show how a moving coil galvanometer can be converted into an ammeter of given range. Write the necessary mathematical formula.

    Solution

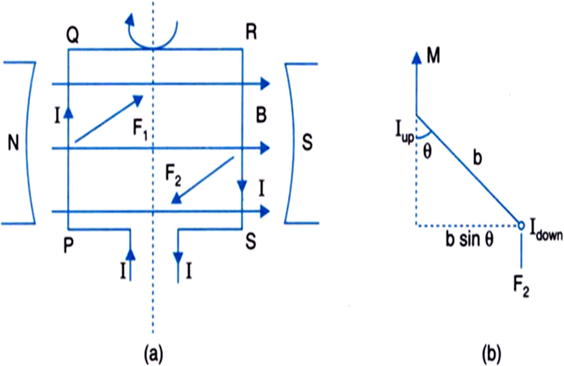

    Let, I be the current through the loop PQRS.
    Given, a and b are the sides of the rectangular loop.
    Area of the loop, A = ab
    Number of turns in the loop = N

    According to Fleming's left-hand rule, the side PQ experiences a normal inward force, F1 = laB and,
    side SR experiences a normal outward force, F2 = IaB.
    These two equal and opposite forces form a couple which exerts a torque given by

    τ = Force x Perpendicular distance
      = IaB x b sin θ
      = IB (ab) sin θ
      = IB A sin θ    [ ∵ A = ab]
    As the coil has N turns, so
                           τ = NBA sin θ

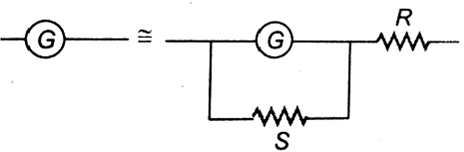

    Conversion of galvanometer into ammeter: A galvanometer can be converted into an ammeter by connecting a low resistance S in parallel with it. This low resistance is called shunt.

    Let Ig be the current with which the galvanometer gives full scale deflection.
    As galvanometer and shunt are connected in parallel, so
    P.D. across the galvanometer = P.D. across the shunt
                      IgRg = (I-Ig)Rs

                        Rs = II-Ig×Rg
    Hence by connecting a shunt of resistance Rs across the galvanometer, we get an ammeter of desired range.





    Question 66
    CBSEENPH12037635

    A circular coil of 200 turns, radius 5 cm carries a current of 2.5 A. It is suspended vertically in a uniform horizontal magnetic field of 0.25 T, with the plane of the coil making an angle of 60° with the field lines. Calculate the magnitude of the torque that must be applied on it to prevent it from turning.

    Solution

    Given,
    Number of turns in the coil, N = 200
    Radius of coil, r = 5 × 10-2 m
    Area of coil, A =πr2
                        = 227×5×10-2×5×10-2= 7.587 × 10-3 m2
    Current carried by the coil, I = 2.5 A
    Magnetic field, B = 0.25 T
    Angle made by coil with the field lines = 60

    Using the formula for torque,
                   τ = NBIA cos θ
                     = 200 x 0.25 x 2.5 x 7.857 x 10–3 x cos 60° Nm
                     = 0.49 Nm

    An opposite and equal torque is required in order to prevent the coil from turning. Thus, the magnitude of the applied torque should be 0.49 m.

    Question 67
    CBSEENPH12037636

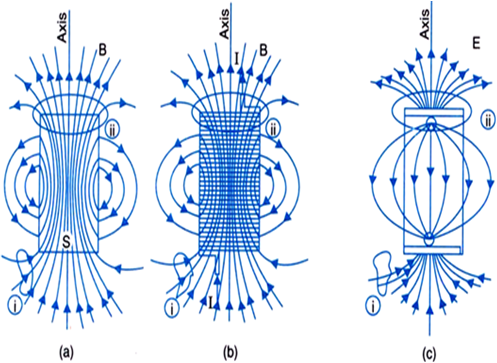

    Draw the field lines of (a) a bar magnet (b) a current carrying finite solenoid, and (c) an electric dipole.
    What basic difference do you notice between the magnetic and electric field lines? How do you explain this difference?

    Solution

    The field lines of (a) a bar magent, (b) a current carrying finite solenoid and (c) electric dipole are shown below.
    At large distances, the field lines are very similar. The curves labelled (i) and (ii) are closed Gaussian surfaces.



    There is a basic difference between magnetic and electric field lines. In case of the electric field of an electric dipole, the electric lines of force originate from positive charge and end at the negative charge.
    In case of a bar magnet, the magnetic field lines are closed loops, i.e., magnetic field lines do not start or end anywhere.

    Question 68
    CBSEENPH12037637

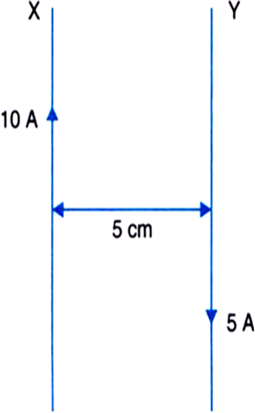

    Two long parallel straight wires X and Y separated by a distance of 5 cm in air carry currents of 10 A and 5 A respectively in opposite directions. Calculate the magnitude and direction of the force on a 20 cm length of the wire Y.


    Solution
    Given, two current carrying parallel wires,
    Distance between the wire , r = 5 cm
    Current carried by first wire = 10 A
    Current carried by second wire = 5A
    Length of the wire, l = 20 cm

    The Force between two wires can be found using the formula,

               F = μ0I1I2l2πr   = 4π×10-7×10×5×0.202π×0.05   = 4 × 10-5N.
    Question 69
    CBSEENPH12037638

    A charge 2Q is spread uniformly over an insulated ring of radius R/2. What is the magnetic moment of the ring if it is rotated with an angular velocity ω with respect to normal axis?

    Solution
    Given,
    Radius of an insulated ring = R/2
    Charge= 2Q
    Angular
    velocity with which the ring is rotated with respect to normal axis = ω

    Now,

    Charge on the element of length dl of the ring is
                   dq = λ. dl

               dq = 2Q2πR/2dl              = 2QπRdl

    Current due to circular motion of this charge is

           dI = dq×v = 2QπRdl ×ω2π    ω = 2πv

    Magnetic moment due to current dl

              dM = dI × π(R/2)2        = 2Qπrdl × ω2π×π(R/2)2

                M = QωR4πdI     = QωR4π.2πR    = 12QωR2.
    Question 70
    CBSEENPH12037639

    A galvanometer with a coil of resistance 120 ohm shows full scale deflection for a current of 2.5 mA. How will you convert the galvanometer into an ammeter of range 0 to 7.5 A? Determine the net resistance of the ammeter. When an ammeter is put in a circuit, does it read slightly less or more than the actual current in the original circuit? Justify your answer.

    Solution
    Resistance of coil , Rg120 ohm
    Current on galvanometer, Ig = 2.5 mA = 0.0025 A
    Ammeter range, I = 0- 7.5 A

    Galvanometer can be converted into an ammeter bu putting a shunt in parallel with galvanometer.

                  Rs = IgI-Ig×Rg     = 0.00257.5-0.0025×120     = 0.04 Ω

    Therefore,

    By connecting a shunt of 0.04 Ω across the given galvanometer, we get an ammeter of range of 0 to 7.5 A.

    Net resistance of the ammeter

                 = 120 × 0.04120+0.04 = 0.03998 Ω

    When an ammeter is put in a circuit, it reads slightly less than the actual current.
    An ammeter has a small resistance. When it is connected in the circuit, it decreases the current by a small amount.

    Question 71
    CBSEENPH12037640

    An electron of 45 eV energy is revolving in a circular path in a magnetic field of intensity 9 x 10–5 Wb m–2. Determine (i) the speed of the electron (ii) radius of the circular path.

    Solution
    Energy of electron, E= 45 eV

    That is,  12mv2 = 45 × 1.6 × 10-19
                         v = 2×45×1.6×10-199.1×10-31ms-1    = 3.98 × 106 ms-1

    which, is the required speed of electron.

    ii) Now, since its a circular path the magnetic force is equal to the centripetal force.

    Therefore,   Bev = mv2r       r = mvBe
                         r = 9.1 × 10-31 × 3.98 × 1069 × 10-5 × 1.6 × 10-19m   = 0.25 m

    is the required radius of the circular path.
    Question 72
    CBSEENPH12037641

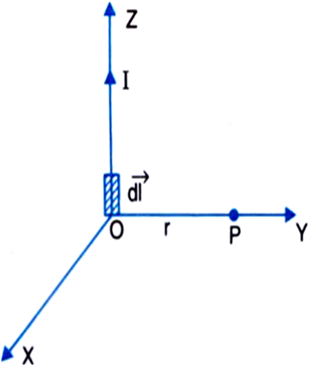

    State Biot-Savart law. A current I flows in a conductor placed perpendicular to the plane of the paper. Indicate the direction of the magnetic field due to a small element dl at point P situated at a distance r from the the element as shown in the figure.

    Solution
    Biot-Savart law states that, the magnitude of magnetic field induction at a point due to a current element of length dl, carrying current I, at a point r from the element is given by

                   dB = μ04π. I dl sin θr2

    Vector form : dB = μ04π.dl × Ir3

    The direction of magnetic field dB is perpendicular to the plane containing dl and r and, is directed inward.

    Sponsor Area

    Question 88
    CBSEENPH12037657

    State Biot-Savart law Using Biot-Savart law, derive an expression for the magnetic field at the centre of a circular coil of number of turns ‘N’, radius ‘r’ carrying a current.

    Solution

    Biot-savart law states that, the magnetic field induction dB at a point due to current element is

                    dB = μo4π I dl sinθr2
    where,
    I.dl is the current element,
    r is the distance of point from the current elemnt and,
    θ is the angle between dl and r.

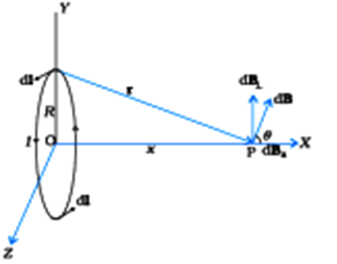

    Expression for magnetic field at the centre of a circular coil :

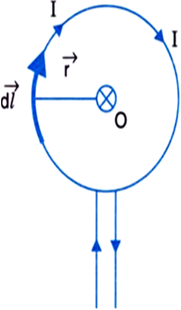

    Consider a circular coil of radius 'r' with center O. Let, I be the current flowing in the circular coil. Assume, that the current coil is made of a large number of current elements each of length 'dl' .
    current element = I.dl
    Now, as per Biot Savart law we have,

                   dB = μo4π I dl sinθr2
    Since, the angle between dl and r is 900.
    Therefore,
                         dB = μo4π I dlr2
    Thus,

    B= dB = μo4π I dl r2 = μo4π Ir2dl
    But,
    dl = total length of circular coil        = circumference of current loop = 2π r

    Therefore,
                      B = μO4π 2πnIr
    where,
    n is the number of turns in the coil.

    Question 89
    CBSEENPH12037658

    A proton and an α-Particle of same kinetic energy in turn move through a uniform magnetic field B in a plane normal to the field. Compare the radii of the paths of the two particles.

    Solution

    Given , a proton and an alpha particle move through a uniform magnetic field b with same kinetic energy.
    The magnetic force acting is equal to the centripetal force.
    Therefore,
    mv2r = qvBr =mv2qvB=mvqB=pqB=2mEqB

    radius of alpha particle is,

    rα = 2mαEqαB =2×4mpE2qpB

    radius of proton is,

    rp = 2mpEqpB

    Dividing both equations, we get

    rαrp = 21

    That is, radius of alpha particle is twice as that of the radius of proton.

    Question 90
    CBSEENPH12037659

    Define the SI unit of magnetic field. “A charge moving at right angles to a uniform magnetic field does it undergo change in kinetic energy”. Why?

    Solution

    The strength of magnetic field at a point is called one Tesla, if a charge of 1 Coulomb when moving with a velocity of 1 metre per second along a direction perpendicular to the direction of magnetic field, experiences a force of 1 Newton.

    The magnitude of velocity remains same and hence, the field does no work on the particle. Therefore there is no change in kinetic energy.

    Question 91
    CBSEENPH12037660

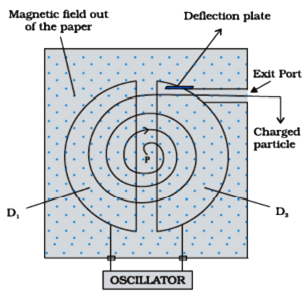

    Give the principle of a cyclotron. Draw a labelled diagram of cyclotron and describe how a positively charged particle is accelerated in it?

    Solution

    Principle of cyclotron
    The working of the cyclotron is that a positively charged particle can be accelerated to sufficiently high energy using smaller oscillating electric field by making the cyclotron cross the same elctric field time and again by magnetic field.



    Working of cyclotron:
    1.The positive ion which is to be accelerated is bought at a point in between D1 and D2. Suppose, D1 is at a negative potential and D2 is at a positive potential. Hence, the ion will be accelerated towards D1.
    2. The ion will be in a free space once it enters D1 and therefore, it moves with a constant speed say, v.
    3. A perpendicular magnetic field B is applied. So, the ion will undergo a circular path of radius r in D1 .
    The circular path is given by,
                               qvB = mv2r
    where, m is the mass of ion and,
    q is the charge on ion.

                            r = mvqB
    4. Now, time taken by an ion to describe a semicircular path is given by,

           t =πrv = πmqB = πB(qm) = constant

    5. If, this time during which the positive ion describes a semi-circular path is the time during which half-cycle of electric oscillator is completed, then as the ion arrives in the gap between the two dees, polarity of the two dees gets reversed. Consequently, positive ion is accelerated towards D2 and the ion enters D2 with greater speed which will remain constant in D2
    6. Ion will describe a  semicircular path of greater radius  due to perpendicular magnetic field and will again arrive in a gap between the two dees exactly at that instant when, the polarity of two dees is reversed.
    7. Thus, positive ion will keep on accelerating everytime it comes into the gap between the dees and will describe a circular path of greater and greater radius henceforth, acquiring sufficiently high kinetic energy.

    Question 92
    CBSEENPH12037661

    Obtain an expression for the magnetic moment associated with the orbital motion of an electron.

    Solution

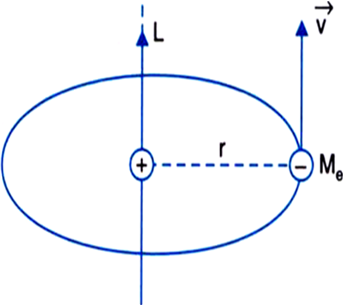

    Consider, a stationary heavy nucleus around which an electron is performing a uniform circular motion.
    Charge , q= +Ze
    Current constituted , I = e/T       .... (1)
    where, T is the time period of revolution.

    Let, r be the orbital radius of the electron.
    v be the orbital speed.
    Then,
                     T= 2πrv.

    Putting this equation in (1) we get,

                         I=ev2πr
    Magnetic moment is given by,
           μ = IA = I×πr2    =ev2πr× πr2    = evr2

    Question 93
    CBSEENPH12037662

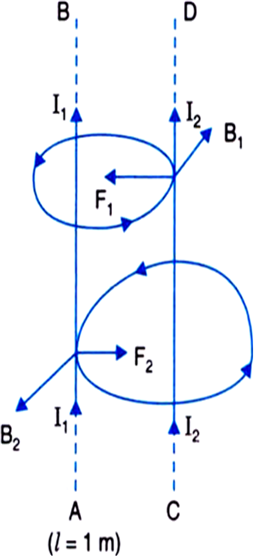

    What is the effect of current flowing in the same direction in two long straight and parallel conductors? Give the definition of  ‘ampere’ based on this effect.

    Solution

    In two long parallel straight conductors, when the current is flowing across the wires in the same direction, they attract each other. i.e, parallel currents attract.

    One ampere is the value of that steady current which, when maintained in each of the two very long, straight, parallel conductors of negligible cross-section, and placed one metre apart in vacuum, would produce on each of the conductors a force equal to 2×107 newtons per metre of length.

    Question 94
    CBSEENPH12037663

    Derive the expression for the torque on a rectangular coil of area A, carrying a current I, placed in a magnetic field B. The angle between the direction of B and the vector perpendicular to the plane of the coil is 0.

    Solution

    Let, a rectangular loop carrying a steady current I, placed in a uniform magnetic field B experiences a torque.
    Angle between the field and the normal  to the coil be angle θ




    Force on arm BC and DA are equal and opposite, and is acting along the axis of the coil. Being, collinear along the axis they cancel each other resulting in no net force or torque.
    Let, the forces on arms AB and CD be F1 and F2
    Magnitude of F1 and F2 is given by,
    F1= F2 = BbI .
    Since, these forces are equal and opposite net force is 0.
    But, there is a torque acting on the loop as a result of these forces which, is given by

              τ = F1 a2 sin θ + F2 a2 sin θ   = I ab B sin θ  = I A B sin θ

    Now, as theta tends to 0, perpendicular distance between the force of the coule also approaches 0. This makes the forces collinear and, net force and torque becomes 0.

    Therefore,
                           τ = 0 for, θ0 .

    Question 95
    CBSEENPH12037664

    What is the magnetic moment associated with a coil of 1 turn, area of cross-section 10–4m2 carrying a current of 2A?

    Solution
    Number of turns, n = 1
    Area of cross section, A = 10-4 m2
    Current , I =2 A
    Magnetic moment assosciated with the coil is,

    m= nIA
      = 1× 2 × 10-4
      = 2 × 10-4 Am2
    Question 96
    CBSEENPH12037665

    An electron is projected with a speed of 105 ms–1 at right angles to a magnetic field of 0.019 G. Calculate the radius of the circle described by the electron.

    Solution

    Given,
    Speed of an electron, v = 105 m/s
    Magnetic field, B = 0.019 G = 0.019 × 10-4  T

    Therefore,
    Radius of the circle described by the electron, r = mvqB  .

    9.1 × 10-31× 1051.60×10-19× 0.019×10-4

    = 29.9 cm

    is the calculated radius of the circle.

    Question 97
    CBSEENPH12037666

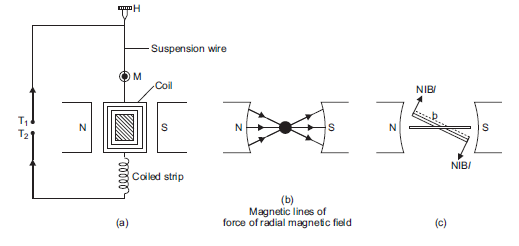

    Draw a labelled diagram of a moving coil galvanometer, Explain the principle on which it works. Deduce an expression for the torque acting on a rectangular current carrying loop kept in uniform magnetic field. Write two factors on which the current sensitivity of a moving coil galvanometer depend.

    Solution

    Moving coil galavanometer is an instrument used for the detection and measurement of small currents.



    Principle : The working of moving coil galvanometer is that when a current carrying coil is placed in a varying magnetic field, it experiences torque.

    Torque acting on a rectangular current carrying coil:

    Let, the coil PQRS be freely suspended in a magnetic field.
    Let,
    l = length of PQ or RS of the coil,
    b = breadth of QR or SP of the coil,
    n= number of turns in the coil,
    B= strength of magnetic field in which the coil is suspended,
    I = current passing through the coil in the direction PQRS.
    Then,
    Area of the coil, A = l× b

    At any instant, θ is the angle which the normal drawn on the plane of the coil makes with the direction of magnetic field.

    The rectangular current carrying coil, when placed in a magnetic field experiences a torque whose magnitude is given by,
                            τ = nIBA sinθ

    Current sensitivity of a moving coil galvanometer depends on :
    i) Number of turns of the coil
    ii) Magnetic field applied.


    Question 98
    CBSEENPH12037667

    Two identical conducting wires AOB and COD are placed at right angles to each other. The wire AOB carries an electric current I1 and COD carries a current I2. What will be the magnetic field on point lying at a distance d from O, in a direction perpendicular to the plane of the wires AOB and COD?

    Solution

    Given,
    Two identical conducting wire AOB and COD are placed at right angles to each other.



    Current carried by AOB = I1
    Current carried by COD = I2

    Magnetic field on AOB , B1μ0 I12πd(-j)
    Magnetic field on COD, B2μo I22πd(+i)

    Therefore,
    Resultant magnetic field , B = B12+B22

                                              =μo2πdI12+I22

    Question 99
    CBSEENPH12037668

    A charge particle moves through a magnetic field perpendicular to its direction. Which of following quantity will change or remain unchanged (t) kinetic energy (ii) momentum?

    Solution

    When a charged particle is moving perpendicular to the direction of magnetuic field both, kinetic energy and momentum remains the same. The reason is, only the direction of the velocity component changes whereas, the magnitude of velocity remains the same.

    Question 100
    CBSEENPH12037669

    A charge particle with charge q enters a region of constant E and B with velocity V perpendicular to both E and B, and comes out without any charge in magnitude or direction of V, then establish a relation between V, E and B.

    Solution

    A charged particle goes undeflected when,
                         qE = qvB

                      v = E/B

    The force due to electric field and magnetic field are acting on the charged particle and will oppose each other if v is along E × B
    Now, v = E BB2 =EB sin 90oB2 = E × BB2
    Therefore,

                  v = E × BB2
    which is the required relation . Error: timeout waiting for response.

    Question 101
    CBSEENPH12037670

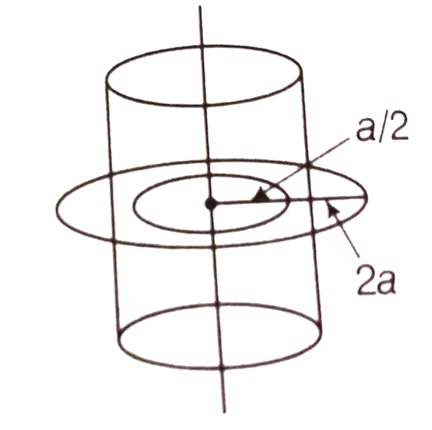

    A long straight wire of radius a carries a steady current I. The current is uniformly distributed across its cross-section. Find the ratio of magnetic field at a/2 and 2a.

    Solution

    Given a long straight wire of radius 'r' carries uniform current.

    The current enclosed by first amperian path = Iπr21πR2 = Ir21R2

    Now, using Ampere circuital law,'
                          B.dl = μo  i
               B = μoi2 π r1 = μo2πr1×I r12R2 = μo I r12π R2

    Magnetic field induction at a distance r2 is,
                     B' = μo4π 2Ir2

    Therefore,
    Ratio of magnetic field at a/2 and 2a is,
               BB' = r1r2R2 = (a2).2aa2 = 1

    Question 102
    CBSEENPH12037671

    A solenoid of length 75 cm, has a radius of 1 cm and has a total of 750 turns wound on it. It carries a current of 4A. Calculate the magnitude of the axial magnetic field inside the solenoid. If a proton were to move with a speed of 103 ms–1 along the axis of this current carrying solenoid, what would be the force experienced by this proton?

    Solution

    Given, a solenoid.
    Length of the solenoid, l = 75 cm
    Radius of the coil, r = 1 cm
    Number of turns in the coil, N = 750
    Current carried by the wire, I = 4 A

    Magnetic field inside a solenoid, B = μo n I

    Number of turns per metre = 7500.75 =  1000 turns/m

    Therefore,
    Magnetic field, B = 4π × 10-7 × 1000 × 4 4π×10-7× 1000 × 4
                           = 16 × 3.14 × 10-4
                           = 5.024 × 10-3

    Force experienced by the proton, F
                      F = qvB sin θ
    Speed of the proton, v = 103 m/s
    Charge on proton, q = +e = 1.6 × 10-19  C

    The direction of magnetic field is along the axis.
    θ is the angle between velocity and magnetic field which is 0in this case .

     sin 0 = 0
    Hence the force acting on proton = 0.

    Question 103
    CBSEENPH12037672

    What is direction of force acting on a charged particle q, moving with a velocity u in a uniform magnetic field B?

    Solution

    The force is acting in a sideways direction, perpendicular to both the velocity and the ,agnetic field.
                   F = qv× B

    The direction of force is given by the right hand rule.

    Question 104
    CBSEENPH12037673

    Why should the spring/suspension wire in a moving coil galvanometer have low torsional constant?

    Solution

    Low torsional constant for moving coil galvanometer facilitates greater deflection ϕ in coil for given value of current and hence increases the sensitivity of galvanometer.

    Question 105
    CBSEENPH12037674

    Using Ampere's circuital law, derive an expression for the magnetic field along the axis of current carrying torodial solenoid of N number of turns having radius r.

    Solution

    Magnetic field due to a toroidal solenoid :

    A long solenoid in the the form of a circular ring is known as torroidal solenoid.

    Let,
    number of turns pr unit length of the solenoid be 'n',
    I - Current flowing throught the coil,
    B- magnetic field inside the turns of the solenoid.

    Magnetic lines of force inside the torroid is in the form of concentric circles. Using the law of symmetry, the magnetic field is along the tangent at every point on the circle and is same at each point of the circle.

    For points inside the core of toroid,
    Let us consider a circle of radius 'r'.
    Length of torid = circumference of circular path = 2π
    Total no. of turns in torroid = n. (2πr )
    Current flowing across each turn = I
    Therefore,
    Total current enclosed by circular path = n (2πr) I
    Now, using Ampere's circuital law,
                         B. dl = μo I
    and        B. dl cos 0 = B . 2π r

    Substituting this in Ampere's law we get,

                B. 2πr = μO ( n . 2πr. I)          B =  μO  n I

    which is the required magnetic field along the axis of current carrying toroidal solenoid.




    Question 106
    CBSEENPH12037675

    Magnetic field lines can be entirely confined within the core of a toroid, but not within a straight solenoid. Why?

    Solution

    Toroid is a circular ring having no ends. Hence, the magnetic field lines form continuous loops and there is no flux leakage. But, in a straight solenoid there is a leakage of flux across the ends.

    Question 107
    CBSEENPH12037676

    A charge ‘q’ moving along the X-axis with a velocity u is subjected to a uniform magnetic field B acting along z-axis as it crosses the origin.
    (i) Trace it trajectory.
    (ii) Does the charge gain kinetic energy as it enters the magnetic field? Justify your answer.

    Solution

    Given,
    Charge is moving along the x-axis and,
    Magnetic field is moving along z-direction.

    Therefore, the magnetic force is such that the particle will follow a circular motion.
    Fm = q (v×B)      = q (Vi× Bk)      = -qVBky

    Since, the force and velocity are perpendicular to each other, the particle does not gain energy.
                W = F.v = Fv cosθ  [ θ = 90o ]

    Hence, the force will not cause any change in velocity.

    Question 108
    CBSEENPH12037677

    An iron core is inserted into a solenoid 0.5 m long with 400 turns per unit length. The area of cross-section of the solenoid is 0.001 m2. (a) Find the permeability of the core when a current of 5 A flows through the solenoid winding. Under these conditions, the magnetic flux through the cross-section of the solenoid is 1.6 x 10–3 Wb. (b) Find the inductance of the solenoid under these conditions.

    Solution
    Given,
    Length of the solenoid, l = 0.5 m
    Number of turns per unit length, n = 400
    Area of cross- section of the solenoid, A= 0.001 m2

    The magnetic induction on the axis of the solenoid is given by

                B = μμ0nIB = μμ04π 4πni                  ....(1)

    where,
    μ is the permeability of the medium,
    n the number of turns per unit length and,
    i is the current passing through the coil.

    (a) The normal to the area is along the direction of the field.

    Therefore,

    Magnetic flux, ϕ = BA,

    Given,            Flux, ϕ = 1.6 × 10-3 Wb,Area,  A = 0.001 = 10-3 m2

    Therefore,       B = ϕA     = 1.6 × 10-310-3     = 1.6 Wb m-2


    Since,              No. of turns, n = 400, Current,  i = 5 A  and,μ04π = 10-7 Hm-1

    We have form equation (1),

            1.6 = μ × 10-7 × 4π × 400 × 5

    which gives,
         μ = 1.6 × 1074π × 5 × 400 = 636.7  637

    (b) Total number of turns in the solenoid is given by

     N = n × l = 400 × 0.5 = 200


    Total flux through the solenoid is,

    N ϕ = 200 × 1.6 × 10-3 = 0.32 Wb

    Self inductance,

    L = i = 0.325 = 0.064 H = 64 mH

    Alternatively,


    L = μμ0N2Al = μμ0n2lA
                                = 637 × (4π×10-7) × 400 × 400 × 0.5 × 10-3= 6.4 × 10-2H = 64 mH


    Question 109
    CBSEENPH12037678

    Using Biot-Savart’s law, derive an expression for the magnetic field at the centre of a circular coil of radius R, number of turns N, carrying current i.

    Solution
    As per Biot-Savart law, the magnetic field due to a current element dl at the observation point whose position vector r is given by
                    dB = μ0I4π.dl × rr3
    where, μ0 is the permeability of free space.

    Consider a circular loop of wire of radius 'r' carrying a current 'I' and also a current element 'dl' of the loop.



    The direction of dl is along the tangent, so dl ⊥ r.

    Using Biot-Savart law,

    Magnetic field at the centre O due to this current element is

                  dB = μ0I4πdl sin 90°r3     = μ0I4πdlr2

    The magnetic field due to all such current elements will point into the plane of paper at the centre O.
    Hence, the total magnetic field at the centre O is given by

      B = dB = μ0Idl4πr2

      B = μ0I4πr2dl = μ0I4πr2.l

         = μ0I4πr2.2πr  B = μ0 I2r

    For a coil of N turns, magnetic field, B = μ0NI2r .


    Question 110
    CBSEENPH12037679

    Two small identical circular coils marked 1, 2 carry equal currents and are placed with their geometric axes perpendicular to each other as shown in the figure. Derive an expression for the resultant magnetic field at 0.

    Solution
    Given, two identical circular loops which are placed perpendicular to each other carry equal currents.

    Now,

    Magnetic field at O due to loop 1.

    B1 = μ0iR22x2+R23/2 , acting towards left.

    Magnetic field at O due to loop 2.

    B2 = μ0iR22x2+R23/2 ,acting vertically upwards .

    where, R is the radius of each loop.

    Therefore,
    Resultant magnetic field at O will be

            B = B12+B22    = 2B1              B1 = B2
              = μ02i R2x2+R23/2

    This resultant field acts at an angle of 45° with the axis of loop 1.
    Question 111
    CBSEENPH12037680

    Two parallel co-axial circular coils of equal radius ‘R’ and equal number of turns ‘N’, carry equal currents ‘I’ in the same direction and are separated by a distance ‘2R’. Find the magnitude and direction of the net magnetic field produced at the mid-point of the line joining their centres.

    Solution
    Given, two parallel co-axial circular coils of equal radius 'R' and equal number of turns 'N' carry equal currents 'I' in the same direction seperated by distance '2R' .

    Magnetic field at the mid-point due to loop 1 is given by,

    B1 = μ0 i R22 R2+R23/2, acting towards right .

    Magnetic field at the mid-point due to loop 2 is,

    B2 = μ0 i R22 R2+R23/2, acting towards right.

    ∴ Net resultant magnetic field at the mid-point is,
                B = B1+B2

                B = μ0 i R22R23/2

    which is acting towards right.


    Question 112
    CBSEENPH12037681

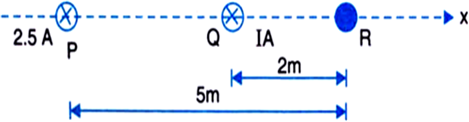

    Two long parallel wires carrying currents 2.5 ampere and I ampere in the same direction (directed into the plane of the paper) are held at P and Q respectively such that they are perpendicular to the plane of paper. The points P and Q are located at a distance of 5 metre and 2 metre respectively from a collinear point R (see figure).

    (i)    An electron moving with a velocity of 4 x 105 m/s along the positive x-direction experiences a force of magnitude 3.2 x 10–20 N at the point R. Find the value of I.
    (ii)    Find all the positions at which a third long parallel wire carrying a current of magnitude 2.5 amperes may be placed so that the magnetic induction at R is zero.



    Solution
    Given, two long parallel wires.
    Current carried by first wire = 2.5 A
    Current carried by second wire = 2.5 A
    Distance of point P from R = 5 m
    Distance of point Q from R = 2 m



    (i) Magnetic field B
    1 at R due to P is,
                   B1 = μ0I2πr      = μ02π2.55

    Magnetic field B2 at R due to Q is,

                  B2 = μ02πrIr    = μ02πI2

    Therefore,
    Resultant magnetic field at R is given by,

            B = B1+B2    = μ02π2.55+I2      ...... (1)

    This Resultant field at R acts downwards and perpendicular to PX.

    Now,
    Force experienced by electron moving along PX is
                      F = ev×B             [θ = 90°]

    F is perpendicular to both v and B.

    Because of the negative charge of electron, the force F acts perpendicular to the plane of paper directed upwards.

    Now,          F = evB
                  B = Fev   = 3.2×10-201.6 × 10-19×4×105   = 0.5 × 10-6     ...(2)

    Equating this to (1), we get

                    μ02π2.55+I2 = 0.5 × 10-6
    which gives
               I = 22πμ00.5 × 10-6-2.55   = 22π×(0.5 × 10-6)4π×10-7-2.52

                = 22.51-2.55= 4A

    (ii) In this case, we can consider the following alternatives:

    (a) If 'r' is the distance of the current 2.5 A which, is directed into the plane of paper from point R then,
    we have
    B3 = μ02π2.5r

    Now,

    B1+B2+B3 =0

    Therefore,

    μ02π2.55+42+2.5r = 0

    which gives,  r= -1 m .
    Thus the third wire is located at 1 m from R on RX.

    (b) When the current 2.5 A is directed out from the plane of paper in an upward direction.

    Therefore,
    I3 = – 2.5 A

    Hence, we will have

    μ02π2.55+42+2.5r = 0

    which gives r = 1 m i.e., the third wire is located 1 m from R on RQ.



    Question 113
    CBSEENPH12037682

    Depict the magnetic field lines due to two straight, long parallel conductors carrying currents I1 and I2 in the same direction. Hence deduce on expression for the force acting per unit length on one conductor due to the other. Is this force attractive or repulsive?

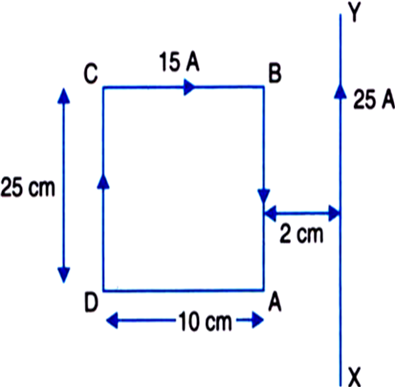

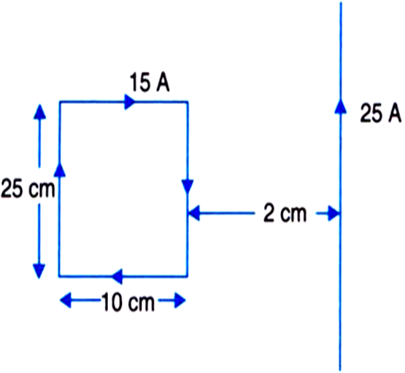

    Figure shows a rectangular current carrying loop placed 2 cm away from a long, straight, current carrying conductor. What is the direction and magnitude of the net force acting on the loop?

    Solution

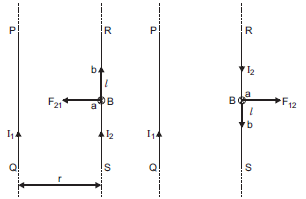

    Given, two infinitely long conductors AB and CD with currents I1 and I2 in same direction respectively, placed parallel to each other, and separated by distance r.



    Magnetic field produced by current at any point of CD is  B1 = μoI12πr

    This field acts perpendicular to CD and into the plane of paper. It exerts a force on wire CD carrying current I2.

    Force exerted on unit length of CD is

     F = B1I2 I   = μ0I12πr×I2×1

    F =μ0I1I22πr   =  μ04π.2I1I2r

    According to Fleming's left hand rule, this force acts on CD towards AB.

    Similarly, conductor CD also exerts an equal force AB towards itself. Hence the two wires get attracted towards each other.


    Numerical:

    Force on AB,    F1 = μ04π. 2I1I2r1 × length of AB


    Question 114
    CBSEENPH12037683

    A circular coil of 25 turns and radius 6.0 cm, carrying a current of 10 A, is suspended vertically in a uniform magnetic field of magnitude 1.2 T. The field lines run horizontally in the plane of the coil. Calculate the force and torque on coil due to the magnetic field. In which direction should a balancing torque be applied to prevent the coil from turning?



    Solution
    Given, a circular coil.
    Number of turns on the coil, n = 25
    Radius of the coil, r = 6 cm
    Current carried by the coil, I = 10 A
    Uniform magnetic field, B = 1.2 T

    Consider any element
    dl of the wire.
    Force on this element is I dl×B. For each element dl, there is another length element -dl on the closed loop.
    Since B is uniform, therefore, the forces cancel for each pair of such elements.
    Therefore, the net force on the coil is zero.

    The torque τ on a plane loop of any shape carrying a current I in a magnetic field B is given by
                        τ =IA n^ × B

    where, n^ is a unit vector normal to the plane of the loop (direction of motion of a right- handed screw rotating in the direction of current).

    For a circular coil of radius r and N turns,
                     A = N × πr2

    In the given problem, the angle between normal vector, n^ and magnetic field, B is 90°.
    Now,
    τ = BIA sin α
     = 1.2 × 10 × 25 × π0.062 sin 90° = 3.39 N m

    The direction of τ is vertically upwards. So as to, prevent the coil from turning, an equal and opposite torque must be applied.
    Question 115
    CBSEENPH12037684

    State Ampere's circuital law and give it's mathematical formulation.

    Solution

    Ampere's circuital law states that, the line integral of magnetic field induction B around a closed path in vacuum is equal to μo times the total current passing through the closed path .

    Mathematically,
                         B .dl = μo I

    Question 116
    CBSEENPH12037685

    A rectangular coil of sides 8 cm and 6 cm having 2000 turns and carrying a current of 200 mA is placed in a uniform magnetic field of 0.2 T directed along the positive x-axis.
    (a) What is the maximum torque the coil can experience? In which orientation does it experience the maximum torque?
    (b) For which orientations of the coil is the torque zero? When is this equilibrium stable and unstable.

    Solution
    We know that a current loop, having n turns, each of area A, carrying current I, when placed in a magnetic field B,   experience a torque whose magnitude is given by
                          τ = nlAB sin α    ...(i)
    where α is the angle which the normal on the plane of the current loop makes with the direction of magnetic field, i.e., angle between A and B.

    Here,Number of turns, N = 2000
    Current carried by the coil, I = 200 mA = 200 x 10–3 A
    Area of the coil, A = 8 x 6 sq. cm = 48 x 10–4 m2
    Uniform magnetic field, B = 0.2 T.

    (a) Torque acting on the coil will be maximum when
               sin α = 1
    or when     α = 90°
    Therefore,
    ∴ Maximum torque, τmax = NIAB
                                       = 2000 x (2.0 x 10–3) x (48 x 10–4) x 0.2
                                        = 0.384 N/m

    In this situation, the plane of the coil is parallel to the direction of magnetic field i.e., the plane of the coil is in the direction of X-axis.

    (b) Torque on the coil will be zero, if
    sin α = 0 or when, α = 0° or 180°.
    It will be so if plane of the coil is perpendicular to the direction of magnetic field i.e., the plane of the coil is along Y or Z-axis.

    The coil will be in stable equilibrium when, A is parallel to B and is in unstable equilibrium when A is antiparallel to B.

    Question 117
    CBSEENPH12037686

    What is the relationship between the current and the magnetic moment of a current carrying circular loop? Use the expression to derive the relation between the magnetic moment of an electron moving in a circle and its related angular momentum?

    Solution

    Let us assume that an electron of mass 'me' and charge 'e' revolves in a circular orbit of radius 'r' around the positive nucleus in anticlockwise direction.


    The angular momentum of the electron due to its orbital motion is given by
                             L = mevr    ...(i)

    Let the period of orbital motion of the electron be T.
    Then, the electron crosses any point on its orbit after every T seconds.

    Therefore, orbital motion of electron is equivalent to a current.
                          I = e.1T
    The period of revolution of the electron is given by
                          T = 2πrv

                     I = e12πr/v = ev2πr

    The area of the electron orbit, A = πr2

    The magnetic dipole moment of the atom is

                      M = IA

                      M = ev2πr×πr2 = evr2            ...(ii)
    Now, using the equation (i) we have

                              M = e2meL                     [From I]

    In vector rotation
                              M = -e2meL

    which, tells us that the magnetic dipole moment vector is directed in a direction opposite to that of angular momentum vector.

    Question 118
    CBSEENPH12037687

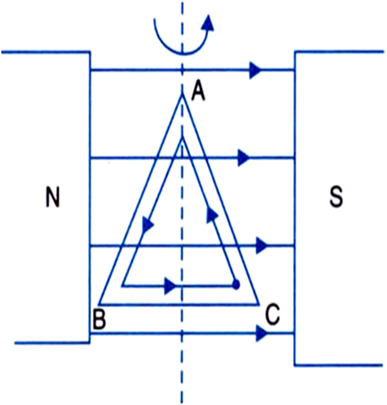

    A coil in the shape of an equilateral triangle of side 0.02 m is suspended from a vertex such that it is ranging in a vertical in plane magnetic field of 5 x 10–2 T. Find the couple acting on the coil when a current of 0.1 ampere is passed through it and the magnetic field is parallel to its plane.

    Solution
    Given,
    Side of equilateral triangle, a = 0.02 m
    Magnetic field, B =  5 x 10–2 T
    Current passd through the coil, I = 0.1 A

    As the coil is in the form of an equilateral triangle, its area is

    A = 34×0.02×0.02A = 3 × 10-4m   = 3 × 10-4m2

    Torque on current carring coil in magnetic field is

    τ = BINA sinα
    where,
    α = 90° , N = 1

    τ = BIA

      = 5×10-2×0.1×3×10-4N-m= 0.5 × 3 × 10-6= 53 × 10-7 Nm

    Question 119
    CBSEENPH12037688

    A solenoid of length 0.4 m and having 500 turns of wire carries a current of 3 A. A thin coil having 10 turns of wire and of radius 0.01 m carries a current of 0.4 A. Calculate the torque required to hold the coil in the middle of the solenoid with its axis perpendicular to the axis of the solenoid.

    Solution
    The torque acting on a current loop of turn N and current i in a magnetic field of induction B due to a solenoid is given by
                    τ = (N i A) B sin θ
    where,
    i is the current flowing in N turns of the loop with face area A and making an angle θ with the field.
    N i A can be regarded as the magnetic dipole moment M.
    The magnetic dipole moment M of the loop lies along the axis of the loop.
    Magnetic field B due to a solenoid is given by

                         B = μ0 n i0
    where,
    n is the number of turns per unit length of the solenoid and,
    i
    0 is the current in the solenoid.
    The direction of B is along its axis.
    Therefore, when the small coil is held with its axis perpendicular to the axis of the solenoid, the torque becomes
                       τ = μ0 ni0 N i A
    Here,
    N = 10,n = 5000.4 = 1250,i0 = 3 A,   i = 0.4 A
                           A = πr2 = π0.012 = π×10-4m2 μ0=4π×10-7

    Therefore,               τ = 4 π × 10-7 ×1250 × 3 ×10 × 0.4 × π× 10-4
      = 5.922 × 10-6 N m

    Sponsor Area

    Question 120
    CBSEENPH12037689

    A current carrying coil of 200 turns has an area of cross-section 1 x 10–4 m2. When suspended freely through its centre, it can turn in a horizontal plane. What is the magnetic moment of the coil for a current of 5 A? Also calculate the net force and torque on coil if a uniform horizontal field of 10 x 10–2 T is set up at an angle of 30° with axis of coil when it is carrying the same current.

    Solution

    Here,
    Number of turns, N = 200
    Area of cross-section. A = 1 x 10–4 m2
    Current passing through the coil, I = 5 A
    M =?
    Magnetic momemnt of the coil, M = N IA
                                                   = 200 x 5 x 10–1
                                                   = 10–1 JT–1

    In a uniform horizontal field B = 10 x 10–2 T, the ends of coil experience equal and opposite forces. Therefore, net force on the coil = 0.
    θ = 30o

    Therefore, torque acting on the coil is,

    Torque, τ = MB sin θ                  = 10-1 × 10 × 10-2 sin 30°                 = 10-2 ×12                  = 0.5 × 10-2 Nm

    Question 121
    CBSEENPH12037690

    A galvanometer of resistance 50 Ω gives full scale deflection for a current of 0.05 A. Calculate the length of the shunt wire required to convert the galvanometer into an ammeter of range 0 to 5 A. The diameter of the shunt wire is 2 mm and its resistivity is 5 x 10–7 Ω m.

    Solution
    Given,
    Resistance of galvanometer, Rg = 50 Ω
    Current, Ig = 0.05 A
    Ammeter current, I = 5A
    Diameter of the shunt wire, d = 2 mm = 2 × 10-3 m
    Therefore, radius, r = 1 × 10-3 m
    Now,
    By using the formula,
    S = GIgI-Ig
    Putting the values,

                 S = 50 × 0.055 -0.05Ω   = 5099Ω

    Also,  S =p1πr2  or  l = πr2Sp

    Putting the values, we get
                          l = 227×1 × 10-32 × 5099 × 15 × 10-7   = 3.175 m.

    which, is the required length of the shunt wire.
    Question 122
    CBSEENPH12037691

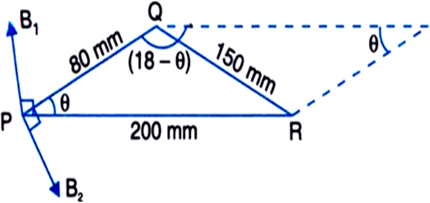

    Two parallel wires Q and R carry currents 5 A and 10 A respectively in opposite directions. A plane lamina ABCD intersects the wires at right angles at points Q and R. Find the magnitude of the total magnetic induction at point P located in the lamina as shown in the figure.

    Solution
    Given,
    Current carried by wire Q, I1 = 5 A
    Current carried by wire R, I2 = 10 A

    The magnetic induction at P due to the 10 A current, is

                    B1 = μ0I12πr1      = 4π×10-7×102π×200×10-3T      = 10 μT

    The magnetic induction at P due to the 5 A current,
                     B2 = μ0I22πr2

                     B2 = 4 A × 10-7 × 52A × 80 ×10-3B2 = 5 × 100 × 10-7100     = 125 × 10-1 × 10-6     = 12.5 × μT

    Hence, Resultant magnetic induction is,

               B = B12+B22+2B1B2 cos(180°-θ)

    where,
            QR2 = PQ2+PR2-2PQ. PR cos θ

          cos θ = -1502+802+20022×80×200 = +0.7469
    Therefore,
                         B = 10-6102+12.52-2×10×12.5×0.7469   = 8.34 × 10-6T   = 8.34 μT
    Question 123
    CBSEENPH12037692

    Two concentric coplanar semi-circular conductors form part of two current loops as shown in the figure. If their radii are 11 cm and 4 cm, calculate the magnetic induction at the centre.

    Solution
    Given, two concentric coplanar semi-circular conductors.
    Radius of inner loop, r14 cm
    Radius of outer loop, r2 = 11 cm
    Current carried by the loops is 20 A and 40 A respectively.
    Magnetic field due to circular loop at centre is given by,

                             B = μ0I2r

    Magnetic induction at centre due 4 qudadrant of wire is,

    = 14μ0240r1-40r2-14μ0220r1-20r2= 4π×10-78201r1-1r2= 4π×10-782014×10-2-111×10-2= 5 × 10-5 weber/m2 (inward)
    Question 124
    CBSEENPH12037693

    Derive an expression for the maximum force experienced by a straight conductor of length I, carrying current I and kept in a uniform magnetic field, B.


    Solution
    Consider a straight conductor PQ of length l, area of cross section A, carrying current I placed in a uniform magnetic field B.

    Suppose the conductor is placed along x-axis and magnetic field acts along y-axis.
    Hence, current I flows from end P to Q and electrons drift from Q to P.

    Let, vd = drift velocity of electron
          - e = charge on each electron

    Therefore,

    Magnetic Lorentz force on an electron is given by
    f = -evd × B                     F = qv×B

    If, n is the number of free electrons per unit volume of the conductor, then
    total number of free electrons in the conductor will be N = n (AI) = nAl.


    Total force on the conductor is

    F = Nf     = n A l -e vd×B    = -n A l e vd×B                         ...(i)

    But, the current through a conductor is related with drift velocity by the relation
                             I = n A e vd

                         Il = n A e vdl
    We represent Il as current element vector and, it acts in the direction of flow of current i.e., along OX.
    Then we have Il and vd in opposite directions. So,

    Il = -n Ale vd                                ...(ii)

    Therefore, from (i) and (ii), we have

    F = Il × B

    Magnitude of
    F = Il B sin θ
    When  π = 90°,then,  Fmax = B I l

    The direction of force on a current carrying conductor placed perpendicular to the magnetic field is given by Fleming’s left hand rule. If we stretch the fore finger, central finger and the thumb of our left hand mutually perpendicular to each other such that the fore finger points in the direction of magnetic field, central finger in the direction of current, then the thumb gives the direction of force experienced by the conductor.

    Question 125
    CBSEENPH12037694

    A straight horizontal conducting rod of length 0.60 m and mass 60 g is suspended by two vertical wires at its ends. A current of 5.0 A is set up in the rod through the wire.
    (a)    What magnetic field should be set up normal to the conductor in order that the tension in the wire is zero?
    (b)    What will be total tension in the wires if the direction of current is reversed, keeping the magnetic field same as before (Ignore mass of the wire), g = 10 ms–2.

    Solution

    Given,
    Length of the conducting rod, l = 0.60 m
    Mass, m = 60 g = 60 x 10–3 kg
    Current set up in the rod, I = 5.0 A

    (a) Tension in the wire is zero if the force on the wire carrying current due to magnetic field is equal and opposite to the weight of wire,
    i.e.,      BIl = mg

             B = mgI l   = 60 × 10-3 × 105.0 × 0.60   =0.20 T

    The force on the conductor due to magnetic field will be upwards if the direction of magnetic field is horizontal and normal to the conductor.
    (b) When direction of current is reversed, BIl and mg will act vertically downwards, then the effective tension in the wires,
    T = BIl + mg
       = 0.2 x 5.0 x 0.60 + (60 x 10–3) x 10
       = 1.2 N.

    Question 126
    CBSEENPH12037695

    An electron beam passes through a magnetic field of 4 x 10–3 weber/m2 and an electric field of 2 x 104 Vm–1, both acting simultaneously. The path of electron remaining undeviated, calculate the speed of the electrons. If the electric field is removed, what will be the radius of the electron path?

    Solution

    Given,an electron beam.
    Magnetic field, B = 4 x 10–3 weber/m2
    Electric field, E = 2 x 104 V/m

    The force on the moving electron due to electric field is equal and opposite to the force on moving electron due to magnetic field since the path of moving electron is undeviated,

    Therefore,
                    eE = evB
    i.e.,
                       v = EB    = 2 × 1044 × 10-3   = 5 × 106 m/s.

    If, the electric field is removed and, when electron is  moving perpendicular to magnetic field, the radius r of circular path traced by electron is given by,

             r = mveB   = 9.1 × 10-31 × 5 × 1061.6 × 10-19 × 4 × 10-3
               = 7.11 × 10-3m= 7.11 mm

    Question 127
    CBSEENPH12037696

    A current I flows along the length of an infinitely long, thin walled pipe. Then what will be the magnetic field at a point inside the pipe.

    Solution

    Given,
    Current I is flowing along the length of an infinitely long, thin walled pipe.

    According to Ampere's circuital law,
                        B.dl = μo I
    Since, no current exists in the medium, inside the pipe,
    I=0   B = 0.
    Hence, the magnetic field at a point inside the pipe = 0

    Question 128
    CBSEENPH12037697

    A narrow stream of protons and deuterons, having the same momentum values, enter a region of uniform magnetic field directed perpendicular to their common direction of motion. What would be the ratio of the radii of the circular paths, described by the protons and deutrons?

    Solution

    We are given, stream of protons and deutrons haveing same momentum entering a region of uniform magnetic field perpendicular to the direction of motion.

    Charge on deutron is twice as that of proton.

    Using the formula,
                             r = mvqB
                    rprD = qDqp = 2qq =2
    Ratio of the radii of proton to deutron is 2:1 .

    Question 129
    CBSEENPH12037698

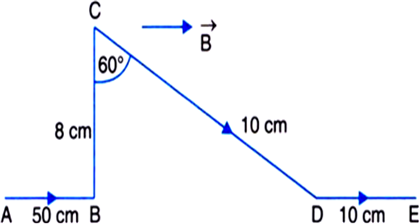

    Find the magnitude of the force on each segment of the wire shown, if a magnetic field of 0.30 T, is applied parallel to AB and DE take the value of current flowing in the wire, as 1 ampere.


    Solution

    Given,
    Magnetic field applied on segment AB and DE, B = 0.30 T
    Current flowing in the wire, I = 1A
    Therefore,

    Force acting on the wire, F = IBl sin θ
    For segment AB and DE, θ = 0
    ∴  force acting on these segments is zero.

    Force on segment BC = IBl sin 90°
                               = 1 (B) 8 x 10–2
                               = 0.08 B tesla.


    Force acting on CD segment, F = 1.B.10 x 10–2.sin 30°
                                               = 0.05B tesla.

    Question 130
    CBSEENPH12037699

    Write the relation for current sensitivity and voltage sensitivity of a moving coil galvanometer? Using these relations, explain the fact that increasing the current sensitivity may not necessary increase the voltage sensitivity.

    Solution

    Current sensitivity, IsθI

    Voltage sensitivity, VθV

                                 = θIR

                                 = Current sensitivityResistance

    where, θ is the deflection produced.

    The above relation implies, if current sensitivity increases as well as the resistance increases in same order, the voltage sensitivity will remain unchanged.

    Question 131
    CBSEENPH12037700

    A wire AB is carrying a current of 12A and is lying on the table. Another wire CD, carrying current 5A is arranged just above AB at a height of 1 mm. What should be the weight per unit length of this wire so that CD remains suspended at its position? Indicate the direction of current in CD and the nature of force between two wires.

    Solution
    Current on AB, I1 = 12 A
    Current on CD, I2 = 5 A
    Distance between wires AB and CD, d = 1 mm = 10-3

    Weight of the wire will be balanced by the force of repulsion between the wires AB and CD so that the wire CD remains suspended at it's position

    Therefore,
                         Fl = μ0I1I22πd

    i.e.,               mgl=μ0I1I22πd

                              = 4π×10-7×12×52π×1×10-3Nm-1= 120 × 10-4= 0.12 Nm-1

    mg/l is the weight per unit length.

    The direction of current in CD will be opposite to that of in AB.
    Question 132
    CBSEENPH12037701

    Two circular loops of radii r and 2r have current I and I/2 flowing through them clockwise and anticlockwise sense respectively. If their equivalent magnetic moments are M1 and M2 respectively, state the relation between M1 and M2.

    Solution

    Given, two circular loops of radii r and 2r respectively.
    Current on two loops are I (clock-wise) and I/2 (anti-clockwise) respectively.

    Now, Magnetic moment is given as M=IA

    Therefore,

                     M1 = I (πr2) and,

                     M2 = I2π(2r)2

                M1M2 = Iπr22r2 = 12

    i.e.,            M1 = 12M2



    Question 133
    CBSEENPH12037702

    A small magnet of magnetic moment M is placed at a distance r from the origin O with its axis parallel to x-axis as shown. A small coil of one turn, is placed on the x-axis, at the same distance from the origin, with the axis of the coil coinciding with x-axis. For what value of current in the coil does a small magnetic needle, kept at origin remain undeflected? What is the direction of current in the coil?

    Solution
    For a needle to remain undeflected the magnetic field due to magnet and current loop must be equal and opposite.


    The magnetic field of magnet at origin
     = μ04π.Mr3

    The magnetic field of the small coil at origin= μ04πIπx2(r2+x2)3/2

    where, x is the radius of the loop.

    For, the needle to remain undeflected we have

              μ04π. Mr3 = μ04πIπx2(r2+x2)3/2

     i.e.,                I = Mr2+x23/2πx2
    The direction of the current in the loop must be anticlockwise.
    Question 134
    CBSEENPH12038956

    A 3.0 cm wire carrying a current of 10 A is placed inside a solenoid perpendicular to its axis. The magnetic field inside the solenoid is given to be 0.27 T. What is the magnetic force on the wire?

    Solution

    Here,

    Length of the wire, l = 3.0 cm = 3×10-2m

    Current, I = 10 A

    Uniform magnetic field, B = 0.27 T

    θ = 90°

    Magnetic force on the wire, F = ?

    Now using the formula,

    F = BI l sin θ =0.27 ×10×(3×10-2) sin 90o = 0.27 ×10× 3×10-2 ×1 = 8.1 ×10-2N

    Question 135

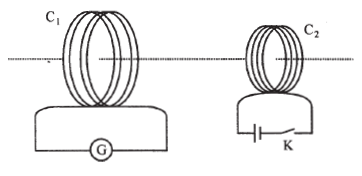

    CBSEENPH12038960

    How does the mutual inductance of a pair of coils change when,

    (i) distance between the coils is increased and

    (ii) number of turns in the coils is increased?

    Solution

    Using the formula,

    straight ϕ space equals space MI space
    i) Mutual inductance decreases when the distance between the coils is increased.



    ii) Now using the formula,

                                 straight M subscript 21 space equals space straight mu subscript straight o space straight n subscript 1 space straight n subscript 2 space straight A space straight l
    On increasing the number of turns in the coil, mutual inductance also increases.

    Question 136
    CBSEENPH12038963

    The motion of copper plate is damped when it is allowed to oscillate between the two poles of a magnet. What is the cause of this damping?

    Solution

    The changing magnetic flux through the plate produces a strong eddy current in the direction, which opposes the cause as the plate oscillates.

    Question 137
    CBSEENPH12038980

    A wire AB is carrying a steady current of 12 A and is lying on the table. Another wire CD carrying 5A is held directly above AB at a height of 1 mm. Find the mass per unit length of the wire CD so that it remains suspended at its position when left free. Give the direction of the current flowing in CD with respect to that in AB.
    [Take the value of g = 10 ms–2]

    Solution

    Current carried by wire AB= 12 A

    Current carried by CD = 5 A

     i) The current carrying conductors will repel each other if the direction of current along both the conductor is same.

     ii) When current along the conductors is flowing in the same direction, then the wires will attract each other.

    When CD remains suspended above AB,
    Error converting from MathML to accessible text.

    where r is the distance between the wires.



    Therefore,
    Error converting from MathML to accessible text.

    The direction of current in CD should be opposite to the direction of current in AB.

    Question 138
    CBSEENPH12038987

    (a) Using Biot-Savart’s law, derive the expression for the magnetic field in the vector form at a point on the axis of a circular current loop.

    (b) What does a toroid consist of? Find out the expression for the magnetic field inside a toroid for N turns of the coil having the average radius r and carrying a current I. Show that the magnetic field in the open space inside and exterior to the toroid is zero.

    Solution

    Biot-Savart law states that the magnetic field strength (dB) produced due to a current element of current I and length dl at a point having position vector  to current element is given by,
                           stack d B with rightwards harpoon with barb upwards on top space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space stack d l with rightwards harpoon with barb upwards on top space cross times space r with rightwards harpoon with barb upwards on top over denominator r cubed end fraction

    where, mu subscript o is permeability of free space.

     The magnitude of magnetic field is given by,

     d B space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space d l space sin straight space theta over denominator r squared end fraction ; theta spaceis the angle between the current element and position vector.

    Magnetic field at the axis of a circular loop:

    Consider a circular loop of radius R carrying current I. Let, P be a point on the axis of the circular loop at a distance x from its centre O. Let,  be a small current element at point A.

    Magnitude of magnetic induction dB at point P due to this current element is given by,
    delta B space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space delta l space sin alpha over denominator r squared end fraction                                       ... (1)
    The direction of delta B with italic rightwards harpoon with barb upwards on top is perpendicular to the plane containing stack delta l with rightwards harpoon with barb upwards on top space a n d space r with rightwards harpoon with barb upwards on top.
    Angle between stack delta l with rightwards harpoon with barb upwards on top space a n d space r with rightwards harpoon with barb upwards on top space i s space 90 to the power of o
    Therefore,
    stack delta B with rightwards harpoon with barb upwards on top space space equals space italic space fraction numerator mu subscript o I over denominator 4 pi end fraction fraction numerator delta l space sin 90 to the power of 0 over denominator r squared end fraction italic space equals space fraction numerator mu subscript o I delta l space over denominator 4 pi r squared end fraction                     ... (2)

    The magnetic induction stack delta B with rightwards harpoon with barb upwards on top can also be resolved into two components, PM and PN’ along the axis and perpendicular to the axis respectively. Thus if we consider the magnetic induction produced by the whole of the circular coil, then by symmetry the components of magnetic induction perpendicular to the axis will be cancelled out, while those parallel to the axis will be added up.

    Thus, resultant magnetic induction B with rightwards harpoon with barb upwards on top at axial point P is given by,
    T h e space c o m p o n e n t space o f space stack delta B with rightwards harpoon with barb upwards on top space a l o n g space t h e space a x i s comma space delta B subscript x space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space delta l space space s i n alpha over denominator r squared end fraction italic space
    Error converting from MathML to accessible text.
    therefore space delta B subscript x equals space fraction numerator mu subscript o I space delta l space over denominator 4 pi r squared end fraction. R over r equals fraction numerator mu subscript o I R over denominator 4 pi r cubed end fraction delta l space
    therefore space delta B subscript x equals space fraction numerator mu subscript o I R over denominator 4 pi left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction delta l

    Therefore the magnitude of resultant magnetic induction at axial point P due to the whole circular coil is given by,
    B = contour integral fraction numerator mu subscript o I R over denominator 4 pi left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction. d l space equals space fraction numerator mu subscript o I R over denominator 4 pi left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction contour integral d l
    contour integral d l space equals l e n g t h space o f space t h e space l o o p space equals space 2 pi R

    Therefore,
    B space equals space fraction numerator mu subscript o I R over denominator 4 pi left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction left parenthesis 2 pi R right parenthesis

space space space equals space fraction numerator mu subscript o I R squared over denominator 2 left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction space T e s l a

    b) A long solenoid on bending in the form of closed ring is called a toroidal solenoid.



    i) For points inside the core of a toroid,

     As per Ampere’s circuital law,
    Error converting from MathML to accessible text.
    where, I is the current in the solenoid.

     So, resultant net current = NI
    therefore space contour integral space straight B with rightwards harpoon with barb upwards on top space. space dl with rightwards harpoon with barb upwards on top space equals space straight mu subscript straight o space NI space

rightwards double arrow space open vertical bar straight B close vertical bar 2 straight pi space straight r space equals space straight mu subscript straight o space NI space

rightwards double arrow space space open vertical bar straight B close vertical bar space equals space fraction numerator straight mu subscript straight o space NI space over denominator 2 πr end fraction

space space space space space space space space space space space space space space equals straight mu subscript straight o space straight n space straight I space space space space space space space open square brackets because space straight n space equals space fraction numerator straight N over denominator 2 πr end fraction close square brackets

    Since no current is flowing through the points in the open space inside the toroid.

    Therefore, I = 0.
    So,
    text ∮ end text B with rightwards harpoon with barb upwards on top space. space stack d l with rightwards arrow on top space equals space mu subscript o space I space equals space 0 space

rightwards double arrow space open vertical bar B close vertical bar subscript i n s i d e end subscript space equals space 0 space

    Question 139
    CBSEENPH12039012

    State the principle of working of a galvanometer.

    A galvanometer of resistance G is converted into a voltmeter to measure upto V volts by connecting a resistance R1 in series with the coil. If a resistance R2  is connected in series with it, then it can measure upto V/2 volts. Find the resistance, in terms of R1 and R2, required to be connected to convert it into a voltmeter that can read upto 2 V. Also find the resistance G of the galvanometer in terms of R1 and R2

    Solution

    Principle:

    When a current carrying loop or coil is placed in the uniform magnetic field, moving coil galvanometer experiences a torque.

    A high resistance is connected in series with the galvanometer to convert it into a voltmeter.

    The value of resistance is given by,
    straight R straight space equals straight space straight V over straight I subscript straight g minus straight space straight G
    where,
    V is the potential difference across the terminals of the voltmeter.
    bold italic I subscript bold italic g bold italic spaceis current through galvanometer and

    G is the resistance of the galvanometer.
    When resistance R1 is connected in series with the galvanometer,
    straight R subscript 1 straight space end subscript equals straight space straight V over straight I subscript straight g minus straight G space space space space space space space space space space space space space space space space space space space space space space space... space left parenthesis 1 right parenthesis thin space

    When resistance R2  is connected in series with the galvanometer,
    straight R subscript 2 straight space equals straight space fraction numerator straight V over denominator 2 straight I subscript straight g end fraction minus straight G straight space              ... (2)

    From equations (1) and (2), we get
    fraction numerator straight V over denominator 2 straight I subscript straight g end fraction equals straight space straight R subscript 1 straight space end subscript minus straight R subscript 2 straight space comma straight space and

straight G space equals space straight R subscript 1 space minus space 2 straight R subscript 2

    Resistance R3 required to convert galvanometer into voltmeter of range 0 to 2V is given by,
    straight R subscript 3 straight space equals straight space fraction numerator 2 straight V over denominator straight I subscript straight g end fraction minus straight space straight G space

rightwards double arrow    straight R subscript 3 straight space end subscript equals straight space 4 left parenthesis straight R subscript 1 straight space end subscript minus straight R subscript 2 right parenthesis minus left parenthesis 2 straight R subscript 1 straight space end subscript minus straight R subscript 2 right parenthesis

space space space space space space space space space space space space space equals straight space 3 straight R subscript 1 straight space end subscript minus 2 straight R subscript 2
    Therefore, R1 - 2Ris the galvanometer resistance in terms of R1 and R2

    Question 140
    CBSEENPH12039018

    (a) State Ampere’s circuital law. Use this law to obtain the expression for the magnetic field inside an air cored toroid of average radius ‘r’, having ‘n’ turns per unit length and carrying a steady current I.

    (b) An observer to the left of a solenoid of N turns each of cross section area ‘A’ observes that a steady current I in it flows in the clockwise direction. Depict the magnetic field lines due to the solenoid specifying its polarity and show that it acts as a bar magnet of magnetic moment m = NIA.

    Solution

    Ampere’s Law states that the line integral of magnetic field bold italic B with rightwards harpoon with barb upwards on top around any closed path in vacuum is straight mu subscript straight o times the total current through the closed path.

    That is,
    contour integral straight B with rightwards harpoon with barb upwards on top. stack dl straight space with rightwards harpoon with barb upwards on top equals straight space straight mu subscript straight o straight I
    Toroid is a hollow circular ring on which a wire of large number of turns is closely wound.

    Let’s consider an air-cored toroid with center O.

    We have,
    contour integral straight B with rightwards harpoon with barb upwards on top. stack dl straight space with rightwards harpoon with barb upwards on top equals straight space contour integral straight B straight space dl straight space cosθ

Angle space straight theta space between space straight B with rightwards harpoon with barb upwards on top and straight space stack dl straight space with rightwards harpoon with barb upwards on top space is space zero.

contour integral straight B straight space dl straight space cosθ straight space equals straight space contour integral stack straight B straight space with rightwards harpoon with barb upwards on top stack dl straight space with rightwards harpoon with barb upwards on top straight space equals straight space straight B cross times straight space circumference straight space of straight space circle straight space of straight space radius straight space straight r

rightwards double arrow straight space contour integral straight B with rightwards harpoon with barb upwards on top. stack dl straight space with rightwards harpoon with barb upwards on top straight space equals straight space straight B cross times 2 πr space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space... left parenthesis 1 right parenthesis

As space per space ampere apostrophe straight s space circuital space law comma space

contour integral straight B with rightwards harpoon with barb upwards on top. stack dl straight space with rightwards harpoon with barb upwards on top equals straight mu subscript straight o straight space cross times straight space net straight space current straight space enclosed straight space by straight space the straight space circle straight space of straight space radius

equals straight space straight mu subscript straight o straight space cross times straight space tota straight space number straight space of straight space turns straight space cross times straight I straight space

equals straight space straight mu subscript straight o cross times left parenthesis straight n cross times 2 πr right parenthesis straight I space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space... space left parenthesis 2 right parenthesis thin space

Now comma space comparing space equations space left parenthesis 1 right parenthesis space and space left parenthesis 2 right parenthesis comma space we space have

straight B cross times 2 πr straight space equals straight space straight mu subscript straight o cross times left parenthesis straight n cross times 2 πr right parenthesis straight I

rightwards double arrow                                  straight B straight space equals    straight mu subscript straight o nI comma space

    which is the magnetic field due to a toroid carrying current.

    b) Given, current is flowing in the clockwise direction for an observer who is on the left side of the solenoid. Implies, left face of the solenoid is the South Pole and right face acts as the North Pole. The magnetic field lines are directed from south to north, inside the bar magnet. Hence, the magnetic field lines are directed from left to right in the solenoid. The figure below illustrates the direction of flow of current inside the solenoid.


    Magnetic moment of single current carrying loop = IA

    Therefore,

    Magnetic moment due to the whole solenoid is, m = N(IA)

    Where,

    N is the number of turns of solenoid,

    I is the current flowing through the loop, and

    A is the area of the loop.

    Question 141
    CBSEENPH12039030

    Write the expression, in a vector form, for the Lorentz magnetic force straight F with rightwards harpoon with barb upwards on top due to a charge moving with velocity straight V with rightwards arrow on top  in a magnetic field B. What is the direction of the magnetic force?

    Solution

    Lorentz magnetic force is given by:
    straight F with rightwards harpoon with barb upwards on top space equals space q left parenthesis stack V space with rightwards harpoon with barb upwards on top space cross times space B with rightwards harpoon with barb upwards on top right parenthesis; q is the magnitude of the moving charge.
    The direction of the magnetic force is perpendicular to the plane containing the velocity vector and the magnetic field vector.

    Question 142
    CBSEENPH12039039

    State the underlying principle of a cyclotron. Write briefly how this machine is used to accelerate charged particles to high energies.

    Solution

    Cyclotron works on the principle that an oscillating electric field can be used to accelerate a charge particle to high energy.

    In a cyclotron, the charged particles across the gap between the two D-shaped magnetic field regions are accelerated by an electric field. The magnetic field is perpendicular to the paths of the charged particles that make them follow circular paths within the two Dee’s. An alternating voltage accelerates the charged particles each time they cross the Dee’s. The radius of each particle’s path increases with its speed. So, the accelerated particles spiral toward the outer wall of the cyclotron.

    The accelerating electric field reverses just at the time the charge particle finishes its half circle so that it gets accelerated across the gap between the Dee’s. The particle gets accelerated again and again, and its velocity increases. Therefore, it attains high kinetic energy.

    Question 143
    CBSEENPH12039049

    (a) State Ampere's circuital law, expressing it in the integral form.

    (b) Two long coaxial insulated solenoids, S1 and S2 of equal lengths are wound one over the other as shown in the figure. A steady current "I" flow thought the inner solenoid S1 to the other end B, which is connected to the outer solenoid S2 through which the same current "I" flows in the opposite direction so as to come out at end A. If n1 and n2 are the number of turns per unit length, find the magnitude and direction of the net magnetic field at a point

    (i) Inside on the axis and (ii) outside the combined system.


    Solution

    (a) Ampere’s circuital law states that the line integral of magnetic induction  around a closed path in vacuum is equal to  times the total current I threading the closed path.

    In the above illustration, the Ampere’s Circuital Law can be written as follows:
    contour integral B ⃗. d l rightwards arrow equals mu subscript o space I semicolon space w h e r e comma space i equals vertical line i subscript 1 minus i subscript 2 vertical line.

    (b) (i) The magnetic field due to a current carrying solenoid:
    straight B with rightwards harpoon with barb upwards on top equals straight space straight mu subscript straight o straight space end subscript ni

    where, n = number of turns per unit length


              i = current through the solenoid.

    From the fig, we can say that, the direction of magnetic field due to solenoid S1 will be in the upward direction and the magnetic field due to S2 will be in the downward direction using right hand screw rule.

    Therefore,
    straight B subscript net equals straight B subscript straight S 1 end subscript minus straight B subscript straight S 2 end subscript

rightwards double arrow straight B subscript net equals straight mu subscript 0 straight n subscript 1 straight I minus straight mu subscript 0 straight n subscript 2 straight I

space space space space space space space space space space space space equals straight mu subscript 0 straight I left parenthesis straight n subscript 1 minus straight n subscript 2 right parenthesis

    Net magnetic field is in the upward direction.
    (ii) Since, there is no current which is flowing outside the solenoid, the magnetic field is zero.

    Question 144
    CBSEENPH12039071

    Two identical circular wires P and Q each of radius R and carrying current ‘I’ are kept in perpendicular planes such that they have a common center as shown in the figure. Find the magnitude and direction of the net magnetic field at the common center of the two coils.

    Solution

    Coils P and Q each of radius R have a common centre:

    BP is directed vertically upwards and BQ is directed horizontally.

    Therefore, resultant magnetic field is given by,
    straight B subscript straight R straight space equals straight space square root of straight B subscript straight P squared plus straight B subscript straight Q squared end root
    We have,
    straight B subscript straight P straight space equals straight space straight B subscript straight Q equals fraction numerator straight mu subscript straight o straight I over denominator 2 straight R end fraction

rightwards double arrow                         straight B straight space equals straight space square root of 2 straight B subscript straight P equals square root of 2 fraction numerator straight mu subscript straight o straight I over denominator 2 straight R end fraction
rightwards double arrow                         straight space straight B straight space equals straight space fraction numerator straight mu subscript straight o straight I over denominator square root of 2 straight R end fraction
    This is the required of the resultant magnetic field.

    Direction of magnetic field is given by,
    tan straight space straight theta straight space equals straight space straight B subscript straight P over straight B subscript straight Q equals 1
theta equals pi over 4
    The resultant magnetic field is directed at angle of 45° with either of the fields.

    Question 145
    CBSEENPH12039078

    A rectangular loop of wire of size 4 cm × 10 cm carries a steady current of 2A. A straight long wire carrying 5A current is kept near the loop as shown.


    If the loop and the wire are coplanar, find

    (i) the torque acting on the loop and

    (ii) the magnitude and direction of the force on the loop due to the current carrying wire.

    Solution

    i) Torque on the current carrying conductor is given by,
    straight tau straight space equals straight space straight M with rightwards harpoon with barb upwards on top straight space cross times straight B with rightwards harpoon with barb upwards on top straight space equals straight space MB straight space sin straight space straight theta

    In this case, M and B have the same direction. Therefore,  = 0o.

    So Torque,  = 0.

    ii) The magnetic forces are equal and opposite on the parallel current carrying wires.

    Therefore, force acting on the loop is given by,

    Error converting from MathML to accessible text.

    The force is attractive in nature or is towards the conductor.

    Question 146
    CBSEENPH12039092

    A plane electromagnetic wave travels in vacuum along z-direction. What can you say about the direction of electric and magnetic field vectors?

    Solution

    The direction of electric field vectors is along X-axis.

    Magnetic field vector is along Y-axis.

    Question 147
    CBSEENPH12039109

    A current is induced in coil C1 due to the motion of current carrying coil C2.

    (a) Write any two ways by which a large deflection can be obtained in the galvanometer G.

    (b) Suggest an alternative device to demonstrate the induced current in place of galvanometer.


    Solution

    a) Two ways by which we can obtain deflection in the galvanometer is by:

    i) Moving coil C2 towards C1 with high speed.

    ii) By placing a soft iron laminated core at the centre of coil C1.

    b) By replacing galvanometer with the torch bulb in coil C1, one can demonstrate the induced current. The bulb begins to glow as a result of the induced current.

    Question 148
    CBSEENPH12039120

    State Biot-Savart law, giving the mathematical expression for it.

    Use this law to derive the expression for the magnetic field due to a circular coil carrying current at a point along its axis.

    How does a circular loop carrying current behave as a magnet?

    Solution

    Biot-Savart law states that the magnetic field strength (dB) produced due to a current element of current I and length dl at a point having position vector  to current element is given by,
                                           stack d B with rightwards harpoon with barb upwards on top space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space stack d l with rightwards harpoon with barb upwards on top space cross times space r with rightwards harpoon with barb upwards on top over denominator r cubed end fraction

    where, mu subscript o  is permeability of free space.

    The magnitude of magnetic field is given by,
    d B space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space d l space sin straight space theta over denominator r squared end fractiontheta spaceis the angle between the current element and position vector.

    Magnetic field at the axis of a circular loop:

    Consider a circular loop of radius R carrying current I. Let, P be a point on the axis of the circular loop at a distance x from its centre O.
    Let,  be a small current element at point A.


    Magnitude of magnetic induction dB at point P due to this current element is given by,
     delta B space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space delta l space sin alpha over denominator r squared end fraction italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space italic space... space left parenthesis 1 right parenthesis

    The direction of stack delta B with rightwards harpoon with barb upwards on top is perpendicular to the plane containing stack delta l with rightwards harpoon with barb upwards on top space a n d space r with rightwards harpoon with barb upwards on top
    Angle between stack delta l with rightwards harpoon with barb upwards on top space a n d space r with rightwards harpoon with barb upwards on top space i s space 90 to the power of o

    Therefore,
    stack delta B with rightwards harpoon with barb upwards on top space equals space fraction numerator mu subscript o I over denominator 4 pi end fraction fraction numerator delta l space sin 90 to the power of 0 over denominator r squared end fraction equals fraction numerator mu subscript o I delta l space over denominator 4 pi r squared end fraction                           ... (2)
    The magnetic induction stack delta B with rightwards harpoon with barb upwards on top can also be resolved into two components, PM and PN’ along the axis and perpendicular to the axis respectively. Thus if we consider the magnetic induction produced by the whole of the circular coil, then by symmetry the components of magnetic induction perpendicular to the axis will be cancelled out, while those parallel to the axis will be added up.
    Thus, resultant magnetic induction B with rightwards harpoon with barb upwards on top at axial point P is given by,
    T h e space c o m p o n e n t space o f space stack delta B with rightwards harpoon with barb upwards on top space a l o n g space t h e space a x i s comma space delta B subscript x space equals space fraction numerator mu subscript o over denominator 4 pi end fraction fraction numerator I space delta l space space s i n alpha over denominator r squared end fraction
    Error converting from MathML to accessible text.

    Therefore the magnitude of resultant magnetic induction at axial point P due to the whole circular coil is given by,

    B = contour integral fraction numerator mu subscript o I R over denominator 4 pi left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction. d l space equals space fraction numerator mu subscript o I R over denominator 4 pi left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction contour integral d l space
    contour integral d l space equals l e n g t h space o f space t h e space l o o p space equals space 2 pi R

italic space T h e r e f o r e italic comma italic space
B space equals space fraction numerator mu subscript o I R over denominator italic 4 pi italic left parenthesis R to the power of italic 2 italic plus x to the power of italic 2 italic right parenthesis to the power of italic 3 italic divided by italic 2 end exponent end fraction left parenthesis 2 pi R right parenthesis
space space space equals space fraction numerator mu subscript o I R squared over denominator 2 left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction space T e s l a
    If the coil contains N turns, then B equals space fraction numerator mu subscript o N I R squared over denominator 2 left parenthesis R squared plus x squared right parenthesis to the power of 3 divided by 2 end exponent end fraction space T e s l a is the required magnetic field.
    A magnetic needle placed at the center and axis of a circular coil shows deflection. This implies that a circular coil behaves as a magnet.

    Question 149
    CBSEENPH12039121

    With the help of a labelled diagram, state the underlying principle of a cyclotron. Explain clearly how it works to accelerate the charged particles.

    Show that cyclotron frequency is independent of energy of the particle. Is there an upper limit on the energy acquired by the particle? Give reason.

    Solution

    Underlying principle of cyclotron: When a charged particle is kept in a magnetic field it experiences a force and the perpendicular magnetic field causes the particle to rotate.

    Working:
    Consider the figure which is shown.

    A Dee which is at a negative potential accelerates the positive ions which are produced from the source S. Magnetic field which is perpendicular will move the ions in a circular motion inside the Dees. The magnetic field and the frequency of the applied voltages are so chosen that as the ion comes out of a Dee, the Dees change its polarity (positive becoming negative and vice-versa) and the ion is further accelerated.


    Now, the ions move with higher velocity along a circular path of greater radius. The phenomenon is continued till the ion reaches at the periphery of the Dees where an auxiliary negative electrode (deflecting plate) deflects the accelerated ion on the target to be bombarded.

    Expression for cyclotron frequency:

    Let the velocity of the positive ion having charge ‘q’ be ‘v’.

    Then,
                                        q v B space equals space fraction numerator m v squared over denominator r end fraction
    rightwards double arrow space r space equals space fraction numerator m v over denominator q B end fraction ;m is the mass of ion, r the radius of the path of ion in the dee and B is the strength of the magnetic field.

    Angular velocity of the ion is given by,

    straight omega equals straight v divided by straight r equals qB divided by straight m space

    Now, time taken by the ion in describing a semi-circle i.e., turning through an angle  is given by,
    t space equals space pi over omega equals fraction numerator pi m over denominator q B end fraction

    The applied alternating potential should also have the same semi-periodic time (T/2) as that taken by the ion to cross either Dee.

    That is,

                             T over 2 equals t space equals space fraction numerator pi m over denominator q B end fraction
    rightwards double arrow space T equals space fraction numerator 2 pi m over denominator q B end fraction, is the expression for period of revolution.
    So, Frequency of revolution of particle is given by, f space equals space 1 over T equals space fraction numerator q B over denominator 2 pi m end fraction

    This frequency is called the cyclotron frequency which is independent of the speed of the particle.

    Question 150
    CBSEENPH12039139

    (a) An em wave is traveling in a medium with a velocity . Draw a sketch showing the propagation of the em wave, indicating the direction of the oscillating electric and magnetic fields.

    (b) How are the magnitudes of the electric and magnetic fields related to the velocity of the em wave?

    Solution

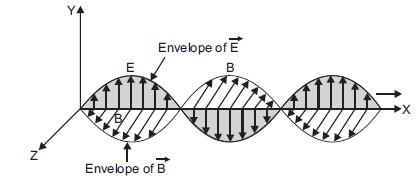

    E with rightwards harpoon with barb upwards on top cross times B with rightwards harpoon with barb upwards on top represents the direction of propagation of wave. The figure below shows us the propagation of the em wave.

    a) The direction of oscillating field is straight i with hat on top space equals space j with hat on top space cross times k with hat on top
    b) Speed of EM wave is given by |c| = straight E subscript straight o over straight B subscript straight o ; Eo is the magnitude of electric field and is the magnitude of magnetic field.
    Question 151
    CBSEENPH12039154

    (a) Derive the expression for the torque on a rectangular current carrying loop suspended in a uniform magnetic field.
    (b) A proton and a deuteron having equal momenta enter in a region of uniform magnetic field at right angle to the direction of the field. Depict their trajectories in the field.

    OR

    (a) A small compass needle of magnetic moment ‘m’ is free to turn about an axis perpendicular to the direction of uniform magnetic field ‘B’. The moment of inertia of the needle about the axis is ‘I’. The needle is slightly disturbed from its stable position and then released. Prove that it executes simple harmonic motion. Hence deduce the expression for its time period.

    (b) A compass needle, free to turn in a vertical plane orients itself with its axis vertical at a certain place on the earth. Find out the values of (i) horizontal component of earth’s magnetic field and (ii) angle of dip at the place.

    Solution


    A rectangular loop ABCD of dimensions l and b, carrying a steady current is placed in uniform magnetic field as shown in fig; such that normal of the plane is at angle straight theta with the magnetic field lines.

    The force FBC and FAD on arms BC and AD are equal, opposite and along the axis of the coil, so they cancel each other.

    The forces FAB and FCD are also equal and opposite, but are not collinear, so they constitute a couple, and the magnitude of the torque can be given as,
    tau space equals space F subscript A B end subscript. b over 2 sin theta space plus space F subscript C D end subscript. b over 2 sin space theta
    Since, straight tau straight space equals straight space straight F subscript AB. straight b over 2 sinθ straight space plus straight space straight F subscript CD. straight b over 2 sin straight space straight theta
    vertical line straight F subscript AB vertical line straight space equals straight space vertical line straight F subscript CD vertical line straight space equals straight space BIl

therefore straight space straight tau straight space equals straight space BIl cross times straight b straight space sin straight space straight theta

space space space space space space equals    BI straight space left parenthesis straight l straight space straight b right parenthesis straight space sin straight space straight theta

space space space space space space equals straight space BIA straight space sin straight space straight theta

    Since, magnetic moment m I |A|

    straight tau space equals space mB space sin space straight theta; which is the expression of torque.

    b) If a charge particle enters right angle to the direction of magnetic field, it follows a circular trajectory, and radius can be given as,
    q v B space equals space fraction numerator m v squared over denominator r end fraction

rightwards double arrow space r space equals space fraction numerator m v over denominator q B end fraction equals space fraction numerator p over denominator q B end fraction

    Since momentum are equal and they having equal charges.

    So, rp : rd = 1:1

    OR



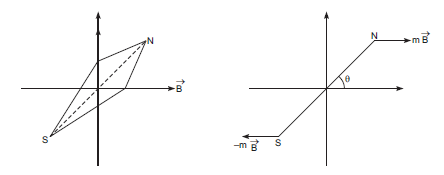

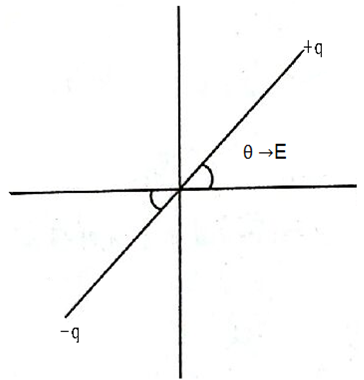

    If magnetic compass of dipole moment  is placed at angle q in uniform magnetic field, and released it experiences a restoring torque.

    Torque is given by, stack tau space with rightwards harpoon with barb upwards on top equals space minus m a g n e t i c space f o r c e space cross times p e r p e n d i c u l a r space d i s tan c e
    Error converting from MathML to accessible text.

    b) If compass needle orients itself with its axis vertical at a place, then

    straight i right parenthesis space straight B subscript straight H space end subscript equals space 0 space because space BV space equals space vertical line straight B vertical line

ii right parenthesis space Angle space of space dip space straight delta space equals space 90 to the power of 0

space space space space space space space space space tan space straight delta space equals space straight B subscript straight v over straight B subscript straight H equals infinity space
rightwards double arrow space Angle straight space straight delta space space equals space 90 to the power of straight o

    Question 152
    CBSEENPH12039172

    How are electromagnetic waves produced? What is the source of energy of these waves? Draw a schematic sketch of the electromagnetic waves propagating along the + x-axis.

    Indicate the directions of the electric and magnetic fields. Write the relation between the velocity of propagation and the magnitudes of electric and magnetic fields.

    Solution

    Electromagnetic waves are produced by accelerating charged particle. When the charge moves with acceleration, both the magnetic and electric fields change continuously. This change produces electromagnetic waves.

    Accelerated charge is the source of energy of these waves.

    The direction of oscillating field is straight i with hat on top space equals space j with hat on top space cross times k with hat on top .

    Relation between velocity of propagation and magnitude of electric and magnetic field is given by |c| = straight E subscript straight o over straight B subscript straight o  ; Eo is the magnitude of electric field and is the magnitude of magnetic field.

    Question 153
    CBSEENPH12039181

    Two infinitely long straight parallel wires, '1' and '2', carrying steady currents I1 and I2 in the same direction are separated by a distance d. Obtain the expression for the magnetic field  due to the wire '1' acting on wire '2'. Hence find out, with the help of a suitable diagram, the magnitude and direction of this force per unit length on wire '2' due to wire '1'. How does the nature of this force changes if the currents are in opposite direction? Use this expression to define the S.I. unit of current.

    Solution

    Consider a straight conductor XY lying in the plane of paper. Consider a point P at a perpendicular distance from the straight conductor.



    Magnetic field induction (B) at a point P due to current I passing through conductor XY is given by,
    straight B space equals fraction numerator straight mu subscript straight o space straight I over denominator 4 πa end fraction open square brackets sin space straight ϕ subscript 1 space plus space sin space straight ϕ subscript 2 close square brackets
    where, straight ϕ subscript 1 space and space straight ϕ subscript 2 are the angles made by point X and Y respectively.
    At the centre of the infinite long wire, straight ϕ1 = straight ϕ2 = 90o

    So, magnetic field is given by,
    straight B space equals space fraction numerator straight mu subscript straight o over denominator 4 straight pi end fraction space fraction numerator 2 straight I over denominator straight a end fraction
    Magnetic field produced by current I1 at any point on conductor Rs is given by,
    straight B subscript 1 space equals space fraction numerator μo space straight I space over denominator 2 πd end fraction


    Force acting on length l of the conductor RS will be,
    Error converting from MathML to accessible text.

    An equal force is exerted into the wire PQ by the field of conductor RS which is given by,
    Error converting from MathML to accessible text.

    Thus, the force is attractive when the current is acting along the same direction. When, current flows in opposite direction, the forces between the two conductors are repulsive.

    One Ampere is that value of constant current which when flowing through each of the two parallel uniform long conductors placed in free space at a distance of 1m from each other will attract or repel with a force of 2 10-7 Newton per metre of their length.

    Question 154
    CBSEENPH12039183

    Using the concept of force between two infinitely long parallel current carrying conductors, define one ampere of current.

    Solution

    One ampere is the value of steady current which when maintained in each of the two very long, straight, parallel conductors of negligible cross section and placed one metre apart in vacuum, would produce on each of these conductors a force equal of 2 x 10-7 N/m of its length.

    Question 156
    CBSEENPH12039193

    Considering the case of a parallel plate capacitor being charged, show how one is required to generalize Ampere’s circuital law to include the term due to displacement current.

    Solution

    Ampere’s circuital law states that,
    contour integral B with rightwards harpoon with barb upwards on top space. space stack d l with rightwards harpoon with barb upwards on top space equals space mu subscript o space I

    Electric flux across a parallel capacitor is given by,
    straight ϕ subscript straight E space space equals space EA space equals space 1 over straight epsilon subscript straight o straight Q over straight A xA space equals space straight Q over straight epsilon subscript straight o

    Current in the plates of the capacitor is given by,
    i space equals space fraction numerator d Q over denominator d t end fraction
italic therefore italic space fraction numerator d ϕ subscript E over denominator d t end fraction italic space italic equals italic space fraction numerator d over denominator d t end fraction open parentheses Q over epsilon subscript o close parentheses italic space italic equals italic space italic 1 over epsilon subscript o fraction numerator d Q over denominator d t end fraction

italic rightwards double arrow italic space fraction numerator d ϕ subscript E over denominator d t end fraction italic space italic equals italic space fraction numerator d Q over denominator d t end fraction italic equals i
    This is the missing term in the ampere's law.

    Therefore, total current in the conductor is the sum of displacement current and conduction current.
    straight i space equals space straight i subscript straight c space plus space straight i subscript straight d space equals space space straight i subscript straight c space plus space straight epsilon subscript straight o space dϕ over dt

Putting space the space value space of space straight I space in space Amper apostrophe straight s space Circuital space law comma space we space have

contour integral straight B with rightwards harpoon with barb upwards on top. dl with rightwards harpoon with barb upwards on top space equals space straight mu subscript straight o space straight I subscript straight c space plus space straight mu subscript straight o element of subscript straight o space dϕ subscript straight E over dt

This space is space the space required space generalized space form space of space Ampere ’ straight s space law.

    Question 157
    CBSEENPH12039214

    (a) Deduce an expression for the frequency of revolution of a charged particle in a magnetic field and show that it is independent of velocity or energy of the particle.

    (b) Draw a schematic sketch of a cyclotron. Explain, giving the essential details of its construction, how it is used to accelerate the charged particles.

    Solution

    a)
    Let the velocity of the positive ion having charge ‘q’ be ‘v’.

    Then,
    q v B space italic equals space fraction numerator m v to the power of italic 2 over denominator r end fraction
italic rightwards double arrow space r space italic equals space fraction numerator m v over denominator q B end fraction italic semicolon italic space
m italic space i s italic space t h e italic space m a s s italic space o f italic space i o n italic comma italic space r italic space t h e italic space r a d i u s italic space o f italic space t h e italic space p a t h italic space o f italic space i o n
i n italic space t h e italic space d e e italic space a n d italic space B italic space i s italic space t h e italic space s t r e n g t h italic space o f italic space t h e italic space m a g n e t i c italic space f i e l d italic.

A n g u l a r italic space v e l o c i t y italic space o f italic space t h e italic space i o n italic space i s italic space g i v e n italic space b y italic comma italic space

omega italic equals v over r italic equals fraction numerator q B over denominator m end fraction

    Now, time taken by the ion in describing a semi-circle i.e., turning
    through an angle  is given by,
    t space equals space pi over omega equals fraction numerator pi m over denominator q B end fraction

    The applied alternating potential should also have the same semi-periodic time (T/2) as that taken by the ion to cross either Dee.

    That is,
    straight T over 2 equals straight t straight space equals straight space πm over qB; is the expression for period of revolution.

    So, Frequency of revolution of particle is given by,
    f space equals space 1 over T equals space fraction numerator q B over denominator 2 pi m end fraction

    This frequency is called the cyclotron frequency which is independent of the speed of the particle.
    b)

    Schematic sketch of a cyclotron is as shown below:


    Principle: When a charged particle is kept in a magnetic field it experiences a force and the perpendicular magnetic field causes the particle to rotate.

    Construction: The cyclotron is made up of two hollow semi-circular disc like metal containers, D1 and D2, called dees.

    It uses crossed electric and magnetic fields. The electric field is provided by an oscillator of adjustable frequency.

    Working: A Dee which is at a negative potential accelerates the positive ions which are produced from the source S. Magnetic field which is perpendicular will move the ions in a circular motion inside the Dees. The magnetic field and the frequency of the applied voltages are so chosen that as the ion comes out of a Dee, the Dees change its polarity (positive becoming negative and vice-versa) and the ion is further accelerated. Now, the ions move with higher velocity along a circular path of greater radius. The phenomenon is continued till the ion reaches at the periphery of the Dees where an auxiliary negative electrode (deflecting plate) deflects the accelerated ion on the target to be bombarded.

    Question 158
    CBSEENPH12039215

    (a) Draw a labelled diagram of a moving coil galvanometer. Describe briefly its principle and working.

    (b) Answer the following:

    (i) Why is it necessary to introduce a cylindrical soft iron core inside the coil of a galvanometer?

    (ii) Increasing the current sensitivity of a galvanometer may not necessarily increase its voltage sensitivity. Explain, giving reason.

    Solution

    b) Moving coil galvanometer:

    Principle: The underlying principle of moving coil galvanometer is that a current carrying coil, placed in a uniform magnetic field, experiences torque.

    Consider a rectangular coil for which no. of turns = N

    Are of cross-section is A = lb

    Intensity of the uniform magnetic field = B

    Current through the coil = I

    Therefore,

    Deflecting torque is given by,

    BIL x b = BIA

    For N number of turns,

    straight tau= NBIA

    Restoring torque in the spring = kstraight theta

    Therefore,
            NBIA space equals space kθ

This space implies comma space

straight I thin space equals space open parentheses straight k over NBA close parentheses straight theta

That space is comma space

straight I space proportional to space straight theta

    b) i) The soft iron coil in a galvanometer will make the field radial. Also, it increases the strength of the magnetic field.
    ii) Current sensitivity in the galvanometer is given by, straight theta over straight I space equals space fraction numerator N B A over denominator k end fraction
    Voltage sensitivity in the galvanometer is given by,
    straight theta over straight V space equals space fraction numerator theta over denominator I R end fraction space equals space open parentheses fraction numerator n B A over denominator k end fraction close parentheses. begin inline style 1 over R end style
    The above two equations imply that increasing the current sensitivity may not necessarily increase the voltage sensitivity.

    Question 159
    CBSEENPH12039217

    What are the directions of electric and magnetic field vectors relative to each other and relative to the direction of propagation of electromagnetic waves?

    Solution

    Both electric and magnetic field vectors are perpendicular to each other and perpendicular to the direction of propagation.



    Question 160
    CBSEENPH12039233

    A circular coil of N turns and radius R carries a current I. It is unwound and rewound to make another coil of radius R/2, current I remaining the same. Calculate the ratio of the magnetic moments of the new coil and the original coil.

    Solution

    Length of the wire remains same,
    straight N subscript 1 space straight x space 2 πR space equals space straight N subscript 2 space straight x space space 2 straight pi space straight R over 2

therefore space straight N subscript 2 space equals space 2 space straight N

    Magnetic moment of a coil, m = NAI

    For the coil of radius R, magnetic moment,
    straight m subscript 1 space equals space straight N subscript 1 IA subscript 1 space equals space straight N subscript 1 Iπ space straight R squared
    Magnetic moment for coil of radius R/2,
    straight m subscript 2 space equals space straight N subscript 2 space IA subscript 2 space equals space fraction numerator 2 straight N subscript 1 IπR squared over denominator 4 end fraction equals fraction numerator straight N subscript 1 IπR squared over denominator 2 end fraction
    Therefore,
    straight m subscript 2 over straight m subscript 1 space equals space 1 colon thin space 2

    Question 161
    CBSEENPH12039247

    (a)

    Write the expression for the force straight F with rightwards harpoon with barb upwards on top, acting on a charged particle of charge ‘q’, moving with a velocity in the presence of both electric field E and magnetic field B. Obtain the condition under which the particle moves un deflected through the fields.

    (b)

    A rectangular loop of size l × b carrying a steady current I is placed in a uniform magnetic field. Prove that the torque straight tau acting on the loop is given by straight tau with rightwards harpoon with barb upwards on top straight space equals straight space stack straight m straight space with rightwards harpoon with barb upwards on top cross times straight space straight B with rightwards harpoon with barb upwards on top is the magnetic moment of the loop.

    Solution

    a) Electric field on the particle is given by,
    stack F subscript e with rightwards harpoon with barb upwards on top space equals space q E with rightwards harpoon with barb upwards on top
    Magnetic force on the particle is given by,

    Total force will be,

    When the charged particle moves perpendicular to both electric and magnetic field, = 0



    b) Consider a loop PQRS of length l, breadth b suspended in a uniform magnetic field.

    Length of the loop, PQ= RS = l

    Breadth of the loop, QR = SP = b
    At any instance, plane of loop makes angle  with the direction of magnetic field B

    Suppose that the forces on sides PQ, QR, RS and SP are stack F subscript 1 with rightwards harpoon with barb upwards on top comma space stack F subscript 2 with rightwards harpoon with barb upwards on top comma space stack F subscript 3 with rightwards harpoon with barb upwards on top comma space a n d space stack F subscript 4 with rightwards harpoon with barb upwards on top  respectively.



    The resultant of forces F2 and F4 is zero.



    The side PQ and RS of current loop are perpendicular to the magnetic field, therefore the magnitude of each of forces F1 and F3 is,
    F = I l B sin 90= I l B
    Moment of couple or torque is given by,
    straight tau space equals space(Magnitude of one Force F) x perpendicular distance = (BIl). (b sin straight theta) = I (lb) B sin straight theta

    But, lb is the area of the loop = A.

    But, lb is the area of the loop = A.

    In vector form,

    Magnetic dipole moment of rectangular current loop is given by, M = NIA

    Direction of torque is perpendicular to the direction of magnetic field.

    Question 162
    CBSEENPH12039248

    (a) Explain, giving reasons, the basic difference in converting a galvanometer into (i) a voltmeter and (ii) an ammeter.

    (b) Two long straight parallel conductors carrying steady current I1 and I2 are separated by a distance ‘d’. Explain briefly, with the help of a suitable diagram, how the magnetic field due to one conductor acts on the other. Hence deduce the expression for the force acting between the conductors. Mention the nature of this force.

    Solution

    a)
    Conversion of galvanometer into ammeter:

    A galvanometer may be converted into ammeter by using very small resistance in parallel with the galvanometer coil.
    The small resistance connected in parallel is called a shunt. If G is resistance of galvanometer, Ig is current in galvanometer for full-scale deflection, then for conversion of galvanometer into ammeter of range I ampere, the shunt is given by,


    Conversion of galvanometer into voltmeter,

    A galvanometer may be converted into voltmeter by connecting high resistance (R) in series with the coil of galvanometer.
    If V volt is the range of voltmeter formed, then series resistance becomes,

    b)
    Magnetic field produced by current I1 at any point on conductor Rs is given by,



    Force acting on length l of the conductor RS will be,

    An equal force is exerted into the wire PQ by the field of conductor RS which is given by,

    Thus, the force is attractive when the current is acting along the same direction.
    When, current flows in opposite direction, the forces between the two conductors are repulsive.



    Question 163
    CBSEENPH12039259

    Write the expression for Lorentz magnetic force on a particle of charge ‘q’ moving with velocity v in a magnetic field B  . Show that no work is done by this force on the charged particle.

    OR

    A steady current (I1) flows through a long straight wire. Another wire carrying steady current (I2) in the same direction is kept close and parallel to the first wire. Show with the help of a diagram how the magnetic field due to the current I1 exerts a magnetic force on the second wire. Write the expression for this force.

    Solution

    Lorentz magnetic force is given by,

    Therefore, work done is,

    As,

    So, Work done, W = 0
                                                                OR

    Consider two long straight conductors PQ and RS placed parallel to each other carrying currents I1 and I2 respectively. Conductors experience an attractive force when the conductors move in the same direction while, repulsive force is experienced by the conductors when currents move in opposite direction.

    PQ and RS which are placed at a distance r, carry currents I1 and I2 in the same direction.
    Suppose, a current element ‘ab’ of length  of wire RS.

    The magnetic field produced by current-carrying conductor PQ at the location of other wire RS,

    So, total force on the conductor of length L is given by,

    Force acting per unit length of conductor is given by,

    Question 164
    CBSEENPH12039276

    (a) Using Ampere’s circuital law, obtain the expression for the magnetic field due to a long solenoid at a point inside the solenoid on its axis.

    (b) In what respect is a toroid different from a solenoid? Draw and compare the pattern of the magnetic field lines in the two cases.

    (c) How is the magnetic field inside a given solenoid made strong?

    Solution

    a) Consider a symmetrical long solenoid having number of turns per unit length equal to n.

    Let I be the current flowing in the solenoid, then by right hand rule, the magnetic field is parallel to the axis of the solenoid.


    Field inside the solenoid:
    Consider a closed path abcd.

    Now, using Ampere’s circuital law to this path, we have


    Therefore, B = 0.

    This implies, magnetic field outside the solenoid is 0.
    Field inside the solenoid:
    Consider a closed path pqrs.
    The line integral of magnetic field  is given by,


    For path pq, B with rightwards harpoon with barb upwards on top space and Error converting from MathML to accessible text. are along the same direction,

    For path rs, B = 0 because outside the solenoid field is zero.

    Using these equations, equation (i) gives,

    Now, using Ampere’s law,
        contour integral stack B space with rightwards harpoon with barb upwards on top. space stack d l with rightwards harpoon with barb upwards on top space equals space mu subscript o space I

    This implies,


    b)
    Magnetic lines do not exist outside the body of a toroid. Toroid is closed and solenoid is open on both sides. Magnetic field is uniform inside a toroid whereas, for a solenoid it is different at two ends and centre.


    c) The magnetic field is made strong by,

        i) passing large current and

       ii) using laminated coil of soft iron.

    Question 165
    CBSEENPH12039280

    Write any two characteristic properties of nuclear force.

    Solution

    (i) Nuclear forces are short range attractive forces.

    (ii) Nuclear forces are charge – independent.

    Question 166
    CBSEENPH12039281

    (a) State the principle of the working of a moving coil galvanometer, giving its labelled diagram.

    (b) “Increasing the current sensitivity of a galvanometer may not necessarily increase its voltage sensitivity.” Justify this statement.

    (c) Outline the necessary steps to convert a galvanometer of resistance RG into an ammeter of a given range.

    Solution

    a) Principle of moving galvanometer:

    A current carrying coil when kept inside a uniform magnetic field, can experience a torque.

    When current (I) is passed in the coil, torque acts on the coil given by,
    straight tau space equals space NIAB space sin space straight theta

    where q is the angle between the normal to plane of coil and the magnetic field of strength B,

    N is the number of turns in a coil.

    When the magnetic field is radial, as in the case of cylindrical pole pieces and soft iron core, then in every position of coil the plane of the coil, is parallel to the magnetic field lines, so that

    straight theta= 90° and sin 90° =1

    Deflecting Torque is given by,
    straight tau space equals space NIAB

    If C is the torsional rigidity of the wire and q is the twist of suspension strip, then restoring torque =C

    For equilibrium, deflecting torque = restoring torque,
    Error converting from MathML to accessible text.

    That is, deflection of coil is directly proportional to current flowing in the coil.

    b)

    Clearly, the voltage sensitivity is dependent on current sensitivity and the resistance of the galvanometer. If we increase current sensitivity and resistance G is larger, then it is not certain that voltage sensitivity will be increased. Thus, the increase of current sensitivity does not imply the increase of voltage sensitivity.
    c)
    Conversion of galvanometer into ammeter:

    Inorder to convert galvanometer into ammeter a shunt resistance i.e., a small resistance in parallel is connected across the coil of galvanometer.

    Let G be the resistance of galvanometer and Ig the current required for full scale deflection.

    Suppose this galvanometer is to converted into ammeter of range I ampere and the value of shunt required is S.

    If, Is is the current in the shunt, then
    space space space space space straight I space equals space straight I subscript straight g space plus space straight I subscript straight S space

rightwards double arrow space straight I subscript straight S space equals space left parenthesis straight I space minus space straight I subscript straight g right parenthesis
Also space potential space difference space across space straight A space and space straight B comma

straight V subscript AB space equals space straight I subscript straight S. straight S space equals space straight I subscript straight g. straight G

Substituting space value space of space straight I subscript straight S space from space left parenthesis straight i right parenthesis comma space we space get
rightwards double arrow space left parenthesis straight I space minus space straight I subscript straight g right parenthesis straight S space equals space space straight I subscript straight g space straight G

rightwards double arrow space space IS space minus space straight I subscript straight g straight S space equals space straight I subscript straight g straight G

rightwards double arrow IS space equals space space straight I subscript straight g space left parenthesis straight S plus straight G right parenthesis

rightwards double arrow space space straight I subscript straight g space equals fraction numerator straight S over denominator straight S space plus space straight G end fraction straight I

straight i. straight e. comma space shunt space required comma space straight S space equals space fraction numerator GI subscript straight g over denominator straight I space minus space straight I subscript straight g end fraction

    which is the required expression for conversion of galvanometer into ammeter.

    Question 167
    CBSEENPH12039284

    Write the underlying principle of a moving coil galvanometer.

    Solution
    When a current-carrying coil is placed in a magnetic field, it experiences torque. This is the underlying principle of a moving coil galvanometer.
    Question 168
    CBSEENPH12039294

    a) Write the expression for the magnetic force acting on a charged particle moving with velocity v in the presence of magnetic field B.

    b) A neutron, an electron and an alpha particle, moving with equal velocities, enter a uniform magnetic field going into the plane of paper, as shown. Trace their paths in the field and justify your answer.

    Solution

    a)
    Force acting on a charged particle q, which is moving with velocity v in a magnetic field B, is given by,

                                              straight F with rightwards harpoon with barb upwards on top space equals space q space left parenthesis v with rightwards harpoon with barb upwards on top space x space B with rightwards harpoon with barb upwards on top space right parenthesis
    The right-hand rule gives the direction of this force. The direction of the force is perpendicular to the plane containing velocity v and magnetic field B.
    b)
    A charged particle experiences a force when it enters the magnetic field. Due to the presence of magnetic field, the charged particle will move in a circular path. This is because the force is perpendicular to the velocity of the charged particle.
    Radius of the circular path in which the charged particle is moving is given by,

    mv squared over straight r space equals space q v B

space space space space space r space equals space fraction numerator m v over denominator q B end fraction

B space a n d space v space a r e space c o n s t a n t. space

W e space c a n space w r i t e comma space

r space proportional to space m over q
    Since the neutron has no charge, it will move along a straight line.
    The electron will follow a circular path which has a radius smaller than that of the alpha particle. This is because the mass to charge ratio of the alpha particle is more than that of the electron.
    Therefore, the electron will move in the clockwise direction and the electron will move in the anticlockwise direction as per the Right Hand Rule.

    Question 169
    CBSEENPH12039297

    Two long, straight, parallel conductors carry steady currents, I1 and I2 , separated by a distance . If the currents are flowing in the same direction, show how the magnetic field set up in one produces an attractive force on the other? Obtain the expression for this force. Hence, define one ampere.

    Solution

    Magnetic field induction at some point P on wire 2 due to current I1 passing through wire 1 is given by,
                                           straight B subscript 1 space equals space fraction numerator straight mu subscript straight o space 2 space straight I subscript 1 over denominator 4 space straight pi space straight d end fraction
    Magnetic field is produced by wire 1 and current carrying wire 2 lies in magnetic field B1.
     The unit length of wire 2 will experience a force, given by
                                  F= B1 I2 x 1 = fraction numerator straight mu subscript straight o over denominator 4 straight pi end fraction space fraction numerator 2 space I subscript 1 space I subscript 2 over denominator d end fraction

    According to Fleming's left-hand rule, the force on wire 2 acts in the plane of paper perpendicular to wire 2, directed towards wire 1. Similarly, wire 1 also experiences the same force towards wire 2. Thus, both the conducting wires attract each other with the same force F.
    One ampere can be defined as the amount of current flowing through two parallel conductors, which are in the same direction or opposite directions, placed at a distance of one metre in free space, and both the wires attract or repel each other with a force of 2 x 10-7 per metre of their lengths.
    Question 170
    CBSEENPH12039353

    Use Biot-Savart law to derive the expression for the magnetic field on the axis of a current carrying circular loop of radius R.

    Draw the magnetic field lines due to a circular wire carrying current I.

    Solution
    Here,
    I = current in the loop
    R= radius of the loop
    X= distance between O and P
    dl = conducting element of the loop
    According to the Biot-Savart law,
    Magnetic field at point P is,
    dB space equals space fraction numerator straight mu subscript straight o over denominator 4 straight pi end fraction space fraction numerator straight I space vertical line dl space straight x space straight r vertical line over denominator straight r cubed end fraction

straight r squared space equals space space straight x squared space plus space straight R squared
Since space dl space and space straight r space is space perpendicular comma space

vertical line dl space straight x space straight r vertical line space equals space straight r space dl

Therefore comma

dB space equals space fraction numerator straight mu subscript straight o over denominator 4 straight pi end fraction. space fraction numerator straight I. space dl over denominator left parenthesis straight x squared plus straight R squared right parenthesis end fraction
    dB has two components: dBx and dB subscript perpendicular.
    dB subscript perpendicular is cancelled out and the x-component remains.
    Therefore,
    dB subscript straight x space equals space dB space cos space straight theta

cos space straight theta space equals space fraction numerator straight R over denominator left parenthesis straight x squared plus straight R squared right parenthesis to the power of bevelled 1 half end exponent end fraction
therefore space dB subscript straight x space equals space fraction numerator straight mu subscript straight o straight I space dl over denominator 4 straight pi end fraction. space fraction numerator straight R over denominator left parenthesis straight x squared space plus space straight R squared right parenthesis to the power of bevelled 3 over 2 end exponent end fraction
    Summation of dl over the loop is given by,
    B = straight B subscript straight x straight i with hat on top space equals space fraction numerator straight mu subscript straight o space straight I space straight R squared over denominator 2 space left parenthesis straight x squared plus straight R squared right parenthesis to the power of bevelled 3 over 2 end exponent end fraction space straight i with hat on top
    Magnetic field lines due to a circular current carrying i is,
    Question 172
    CBSEENPH12039387

    Describe the working principle of a moving coil galvanometer. Why is it necessary to use (i) a radial magnetic field and (ii) a cylindrical soft iron core in a galvanometer? Write the expression for the current sensitivity of the galvanometer.

    Can a galvanometer as such be used for measuring the current? Explain.

    Solution

    Moving coil galvanometer is an instrument used for the detection and measurement of small currents.

    Principle: The working of moving coil galvanometer is that when a current carrying coil is placed in a varying magnetic field, it experiences torque.

    Consider a rectangular coil for which no. of turns = N

    Are of cross-section is A = lb

    Intensity of the uniform magnetic field = B

    Current through the coil = I

    Therefore,

    Deflecting torque is given by,

    BIL x b = BIA

    For N number of turns,

    straight tau= NBIA

    Restoring torque in the spring = kstraight theta

    Therefore,
    NBIA space equals space kθ
This space implies
straight I space equals space open parentheses straight k over NBA close parentheses straight theta
That space is space
straight I proportional to straight theta
     i) The soft iron coil in a galvanometer will make the field radial. Also, it increases the strength of the magnetic field.
    ii) Current sensitivity in the galvanometer is given by, straight theta over straight I space equals space fraction numerator N B A over denominator k end fraction
    Voltage sensitivity in the galvanometer is given by,
    straight theta over straight V space equals space fraction numerator theta over denominator I R end fraction space equals space open parentheses fraction numerator n B A over denominator k end fraction close parentheses. begin inline style 1 over R end style
    Yes a galvanometer can be used for measuring the current.

    Question 173
    CBSEENPH12039388

    (a) Define the term 'self-inductance' and write its S.I. unit.

    (b) Obtain the expression for the mutual inductance of two long co-axial solenoids S1 and S2 wound one over the other, each of length L and radii r1 and r2 and n1 and n2 number of turns per unit length when a current I is set up in the outer solenoid S2.

    Solution

    a) Mutual inductance of two coils is equal to the e.m.f induced in one coil when the rate of change of current through the other coil is unity.

    SI unit of mutual inductance is Henry.

    b) Consider two long solenoids S1 and S2 of same length ‘l’ such that S2  surrounds Scompletely.



    Let,
    n1  = Number of turns per unit length of S1

    n2 = Number of turns per unit length of S2

    I1 = Current passing through solenoid S1

    straight empty set subscript 21= Flux linked with S2  due to current flowing in S1
    straight ϕ subscript 21 straight space proportional to straight space straight I subscript 1
    rightwards double arrow space space straight ϕ subscript 21 space equals space straight M subscript 21 straight I subscript 1 space semicolon space straight M subscript 21 is the coefficient of the mutual inductance of two solenoids.

    When current is passed through S1, emf is induced in S2 .

    Magnetic field inside solenoid S1 is given by, straight B subscript 1 space equals space straight mu subscript straight o straight n subscript 1 straight I subscript 1

    Magnetic flux linked with each turn of the solenoid  =  straight S subscript 2 space equals space straight B subscript 1 straight A

    Total magnetic flux linked with S2 is given by,
    straight ϕ subscript 21 space equals space straight B subscript 1 straight A space cross times space straight n subscript 2 straight I space equals space straight mu subscript straight o straight n subscript 1 straight I subscript 1 cross times space straight A cross times space straight n subscript 2 straight I

rightwards double arrow space             straight space straight ϕ subscript 21 space equals space space straight mu subscript straight o straight n subscript 1 space end subscript straight n subscript 2 AI subscript 1

therefore space space space space space space space space space space space space straight M subscript 21 space equals space straight mu subscript straight o straight n subscript 1 space end subscript straight n subscript 2 AI

    Similarly, mutual inductance between two solenoids, when current is passed through S2 and emf induced in solenoid S1 is given by,
    straight M subscript 12 equals straight mu subscript straight o straight n subscript 1 straight n subscript 2 AI

therefore space space space straight M subscript 12 space equals space straight M subscript 21 equals straight M

    Hence, coefficient of mutual induction between the two long solenoids is given by,
    straight M equals straight mu subscript straight o straight n subscript 1 straight n subscript 2 AI

    Question 174
    CBSEENPH12039416

    A bar magnet of magnetic moment 6 J/T is aligned at 60° with a uniform external magnetic field of 0.44 T. Calculate (a) the work done in turning the magnet to align its magnetic moment (i) normal to the magnetic field, (ii) opposite to the magnetic field, and (b) the torque on the magnet in the final orientation in case (ii).

    Solution

    M = 6J/T

    θ = 60o

    B = 0.44T

    τ = mB sinθτ = 6 x 0.44 sin 60o = 6 x 0.44 x 32 = 33 x 0.44 = 2.836dwθ =600900τ. = - mB [ cos 900 - cos 600] = 6 x 0.44 x -12 = 3 x 0.44  = 1.32 J(ii) dw = θ = 6001800 mB sin θ.= - mB [ cos 1800 - cos 600] =  6 x 0.44 x -1-12= -6x0.44-32= 9 x 0.44= 39.6 J(b) τ = m x Bτ = m Bsin θ = 6 x 0.44 x sin 1800τ = 0

    Question 175
    CBSEENPH12039417

    An iron ring of relative permeability μr has windings of insulated copper wire of n turns per metre. When the current in the windings is I, find the expression for the magnetic field in the ring.

    Solution

    There will be two magnetic field one due to current and another due to magnetics.

    B = B0 + BmB = μ0nI + μ0MB = μ0H + μ0χHB = μ0(1 + χ)HB = μ0μrH

    Question 177
    CBSEENPH12039462

    Hysteresis loops for two magnetic materials A and B are given below:



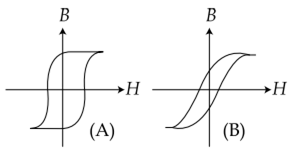

    These materials are used to make magnets for electric generators, transformer core and electromagnet core. Then it is proper to use:

    • A for electric generators and transformers.

    • A for electromagnets and B for electric generators

    • A for transformers and B for electric generators.

    • B for electromagnets and transformers.

    Solution

    D.

    B for electromagnets and transformers.

    Area of the hysteresis loop is proportional to the net energy absorbed per unit volume by the material, as it is taken over a complete cycle of magnetisation.
    For electromagnets and transformers, energy loss should be low.
    i.e thin hysteresis curves.
    Also |B|→0 When H = 0 and |H| should be small when B →0.

    Question 178
    CBSEENPH12039463

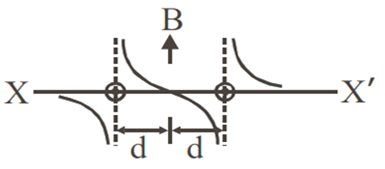

    Question 179
    CBSEENPH12039472

    A galvanometer having a coil resistance of 100 Ω gives a full-scale deflection, when a current of 1 mA is passed through it. The value of the resistance, which can convert this galvanometer into ammeter giving a full-scale deflection for a current of 10 A, is:

    • 0.01 Ω

    • 2 Ω

    • 0.1 Ω

    • 3 Ω

    Solution

    A.

    0.01 Ω

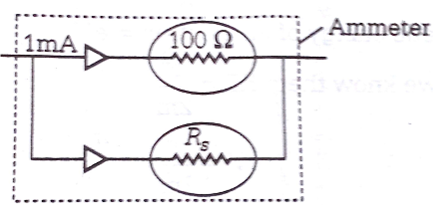

    Maximum voltage that can be applied across the galvanometer coil = 100 Ω x 10-3 A = 0.1


    If Rs is the shunt resistance, then
    Rs x 10 A = 0.1 V
    Rs = 0.01 Ω

    Question 180
    CBSEENPH12039486

    Two coaxial solenoids of different radii carry current I in the same direction. Let stack straight F subscript 1 with rightwards arrow on top be the magnetic force on the inner solenoid due to the outer one and stack straight F subscript 2 with rightwards arrow on top be the magnetic force on the outer solenoid due to the inner one. Then:

    • stack straight F subscript 1 space with rightwards arrow on top equals stack straight F subscript 2 space with rightwards arrow on top equals space 0
    • stack straight F subscript 1 with rightwards arrow on top is radially inwards and stack straight F subscript 2 with rightwards arrow on top is radially outwards
    • stack straight F subscript 1 with rightwards arrow on top is radially inwards and stack straight F subscript 2 with rightwards arrow on top =0
    • stack straight F subscript 1 with rightwards arrow on top is radially outward and stack straight F subscript 2 with rightwards arrow on top =0

    Solution

    A.

    stack straight F subscript 1 space with rightwards arrow on top equals stack straight F subscript 2 space with rightwards arrow on top equals space 0

    Consider the two coaxial solenoids. Due to one of the solenoids magnetic field at the centre of the other can be assumed to be constant

    Due to symmetry, forces on upper and lower part of the solenoid will be equal and opposite and hence resultant is zero.
    Therefore option (a) is correct.

    Question 182
    CBSEENPH12039557

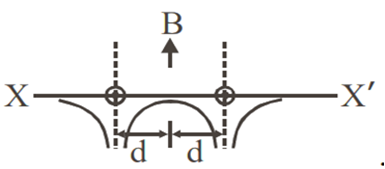

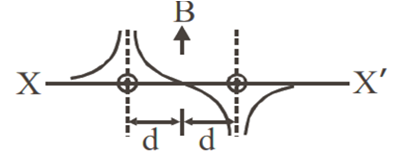

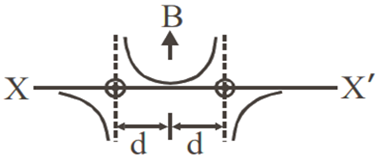

    Two long parallel wires are at a distance 2d apart. They carry steady equal currents flowing out of the plane of the paper as shown. The variation of the magnetic field B along the line XX' is given by

    Solution

    B.

    The magnetic field in between because of each of the conductors will be in naturally opposite directions.
    ∴ Net magnetic field
    straight B subscript in space between space space end subscript space equals space fraction numerator straight mu subscript straight o straight i over denominator 2 space straight pi space straight x end fraction space bold j with bold hat on top space plus space fraction numerator straight mu subscript straight o straight i over denominator 2 space straight pi space left parenthesis 2 straight d minus straight x right parenthesis end fraction left parenthesis negative straight j right parenthesis
space equals space fraction numerator straight mu subscript straight o straight i over denominator 2 space straight pi space straight x end fraction space open square brackets 1 over straight x minus fraction numerator 1 over denominator 2 straight d minus straight x end fraction close square brackets space left parenthesis space bold j with bold hat on top space right parenthesis
    At x = d, B in between = 0
    For x < d, B in between =bold j with bold hat on top
    For x> d, B in between = left parenthesis bold minus bold j with bold hat on top right parenthesis
    Towards x, net magnetic field will add up and direction will be  left parenthesis bold minus bold j with bold hat on top right parenthesis. Towards' x' b net magnetic field will add up and direction will be (bold j with bold hat on top)

    Question 194
    CBSEENPH12039686

    In the circuit, the galvanometer G shows zero deflection. If the batteries A and B have negligible internal resistance, the value of the resistor R will be

    • 200Ω

    • 100Ω

    • 500 Ω

    • 1000 Ω

    Solution

    B.

    100Ω

    The potential drop across the resistance R is 2V. Now, no current flows through the galvanometer .and if V1 is the potential drop across the resistor R and V is the total potential then
    fraction numerator VR over denominator 500 space plus straight R space end fraction space space equals space straight V subscript 1

fraction numerator 12 space straight R over denominator 500 space plus straight R space end fraction space equals space 2
space equals space 100 space ohm

    Question 200
    CBSEENPH12039706

    A magnetic needle is kept in a non-uniform magnetic field. It experiences

    • a torque but not a force

    • neither a force nor a torque

    • a force and a torque.

    • a force but not a torque.

    Solution

    C.

    a force and a torque.

    In non uniform magnetic field, dipole experiences both force and torque.

    Question 201
    CBSEENPH12039723

    A current I ampere flows along an infinitely long straight thin-walled tube, then the magnetic induction at any point inside the tube is

    • infinite

    • zero

    • fraction numerator straight mu subscript 0 over denominator 4 straight pi end fraction fraction numerator 2 straight i over denominator straight r end fraction space tesla
    • fraction numerator 2 space straight i over denominator straight r end fraction space Tesla

    Solution

    B.

    zero

    Let R be the radius of a long thin cylindrical shell. To calculate the magnetic induction at a distance r (r < R) from the axis of cylinder, a circular shell of radius r is shown:

    Since no current is enclosed in the circle so, from Ampere's circuital law, magnetic induction is zero at every point of the circle. Hence, the magnetic induction at any point inside the infinitely long straight thin-walled tube (cylindrical) is zero.

    Question 202
    CBSEENPH12039724

    A long wire carries a steady current. It is bent into a circle of one turn and the magnetic field at the centre of the coil is B. It is then bent into a circular loop of n turns. The magnetic field at the centre of the coil will be

    • nB

    • n2B

    • 2nB

    • 2n2B

    Solution

    B.

    n2B

    The magnetic field at the centre of circular coil is
    straight B space equals fraction numerator straight mu subscript 0 space straight i over denominator 2 straight r end fraction
where space straight r space equals space radius space of space circle space space equals space fraction numerator 1 over denominator 2 straight pi end fraction space left parenthesis because space straight I space equals 2 πr right parenthesis
straight B space equals space fraction numerator straight mu subscript 0 space straight i space over denominator 2 end fraction space straight x space fraction numerator 2 straight pi over denominator straight I end fraction
space equals space fraction numerator straight mu subscript 0 space straight i space straight pi over denominator straight I end fraction space.... space left parenthesis straight i right parenthesis
    When wire of length i bents into a circular loops of n turns, then
    l = n × 2 π r
    ⇒ r = 1/ n x 2 π
    Thus, new magnetic field
    straight B apostrophe space equals space fraction numerator straight mu subscript 0 ni over denominator 2 straight r apostrophe end fraction space equals space fraction numerator straight mu subscript 0 ni over denominator 2 end fraction space straight x space fraction numerator straight n space straight x space 2 straight pi over denominator straight l end fraction
space equals space fraction numerator straight mu subscript 0 space straight i space straight pi over denominator straight l end fraction space straight x space straight n squared
space equals space straight n squared straight B

    Question 206
    CBSEENPH12039745

    Two sources of equal emf are connected to an external resistance R. The internal resistances of the two sources are R1 and R2 (R2>R1). If the potential difference across the source having internal resistance R2 is zero, then

    • straight R space equals space fraction numerator straight R subscript 2 space straight x space left parenthesis straight R subscript 1 space plus straight R subscript 2 right parenthesis over denominator left parenthesis straight R subscript 2 minus straight R subscript 1 right parenthesis end fraction
    • R = R2-R1

    • straight R space equals space fraction numerator straight R subscript 1 straight R subscript 2 over denominator left parenthesis straight R subscript 1 plus straight R subscript 2 right parenthesis end fraction
    • straight R space equals space fraction numerator straight R subscript 1 straight R subscript 2 over denominator left parenthesis straight R subscript 1 minus straight R subscript 2 right parenthesis end fraction

    Solution

    B.

    R = R2-R1

    The equivalent resistance of the  circuit
    Req = R + R2 + R
    I = 2E/ R1 +R2 +R
    according to the questions
    -(VB-VA) = E- IR2
    0 = E- IR2E= IR2
    E = 2ER2/R1+R2+R
    R1+R2+R =2R2
    R= R1-R2

    Question 207
    CBSEENPH12039759

    An electron, a proton and an alpha particle having the same kinetic energy are moving in circular orbits of radii re, rp, r respectively in a uniform magnetic field B. The relation between re, rp, r is:

    • re < r < rp

    • re > rp =  r

    • re < rp =  r

    • re < rp <  r

    Solution

    C.

    re < rp =  r

    The radius of circular path in a magnetic field is given as,

    r = 2KmqBFor electron, re = 2KmeeB .... (i)For Proton, rp = 2KmpeB .... (ii)For α particle,rα = 2KmaqαB = 2K4mp2eB = 2KmpeB ...(iii)re<rp =rα  ( me<mp)

    Question 208
    CBSEENPH12039794

    A long straight wire of radius a carries a steady current I. The current is uniformly distributed over its cross-section. The ratio of the magnetic fields B and B' at radial distances straight a over 2 and 2a respectively, from the axis of the wire is,

    • 1 half
    • 1

    • 4

    • 1/4

    Solution

    B.

    1

    b) Consider two amperian loops of radius a/2 and 2a as shown in the diagram.

    Applying Ampere's circuital law for these loops, we get
    contour integral B. d L space equals space mu subscript o space I subscript e n c l o s e d end subscript
    For the smaller loop,
    rightwards double arrow space straight B space straight x space 2 straight pi straight a over 2 equals straight mu subscript straight o straight x straight I over πa squared xπ space open parentheses straight a over 2 close parentheses squared
space space space space space space space space space space space space space space space space space space space space space equals space straight mu subscript straight o space straight I space straight x space 1 fourth space equals space fraction numerator straight mu subscript straight o space straight I over denominator 4 end fraction
rightwards double arrow straight B subscript straight I space equals space fraction numerator straight mu subscript straight o straight I over denominator 4 πa end fraction
    B1 acts at a distance a/2 from the axis of the wire.
    Similarly, for bigger amperian loop,
    B' x 2 straight pi (2a) = straight mu subscript straight o straight I
    Total current enclosed by amperian loop 2.
    rightwards double arrow space straight B apostrophe space equals space fraction numerator straight mu subscript straight o straight I over denominator 4 πa end fraction, at a distance 2a from the axis of the wire.
    Therefore,
    Ratio of fraction numerator straight B over denominator straight B apostrophe end fraction space equals space fraction numerator mu subscript o I over denominator 4 pi a end fraction x fraction numerator 4 pi a over denominator mu subscript o I end fraction equals 1
    Question 210
    CBSEENPH12039830

    The ratio of amplitude of magnetic field to the amplitude of electric field for an electromagnetic wave propagating in vacuum is equal to

    • the speed of light in vacuum

    • the reciprocal of the speed of light in vacuum

    • the ratio of magnetic permeability to the electric susceptibility of vacuum

    • unity

    Solution

    B.

    the reciprocal of the speed of light in vacuum

    as E=cB
    so the required ratio
    straight E over straight B space equals straight c
fraction numerator straight B over denominator straight E space end fraction space equals 1 over straight c
    Therefore, the ratio of the amplitude of magnetic field to the amplitude of electric field for an electromagnetic wave propagating in a vacuum is equal to the reciprocal of the speed of light.

    Question 217
    CBSEENPH12039956

    An electron moves on a straight line path XY as shown. The abcd is a coil adjacent in the path of the electron. What will be the direction of the current, if any induced in the coil?

    • abcd

    • adcb

    • the current will reverse its direction as the electron goes past the coil

    • no current induced

    Solution

    C.

    the current will reverse its direction as the electron goes past the coil

    First current develops in direction of abcd but when electron moves away then magnetic field inside loop decrease and current changes its direction.

    Question 221
    CBSEENPH12039968

    A short bar magnet of magnetic moment 0.4 JT-1 is placed in a uniform magnetic field of 0.16T. The magnet is stable equilibrium when the potential energy is

    • -0.64 J

    • zero

    • -0.082 J

    • 0.064 J

    Solution

    D.

    0.064 J

    We know that
    U = - MB cos θ
    For stable equilibrium θ = 0o
    So, U = - MB

    =- (0.4)(.16) = - 0.064 J
    Question 224
    CBSEENPH12039997

    A square current carrying loop is suspended in a uniform magnetic field acting in the plane of the loop. If the force on one arm of the loop is bold F with bold rightwards arrow on top, the net force on the remaining three arms of the loops is

    • bold F with bold rightwards arrow on top

    • -bold F with bold rightwards arrow on top

    • negative 3 space bold F with bold rightwards arrow on top
    • bold F with bold rightwards arrow on top

    Solution

    B.

    -bold F with bold rightwards arrow on top

    When a current carrying loop is placed in a magnetic field, the coil experiences a torque given by  T = NBiA sin θ. Torque is maximum when θ =90, i.e. the plane of the coil is parallel to the field Tmax NBiA


    Force stack bold F subscript bold 1 with bold rightwards arrow on top and bold F with bold rightwards arrow on top subscript 2 acting on the coil are equal in magnitude and opposite in direction. As the forces  stack bold F subscript bold 1 with bold rightwards arrow on top and bold F with bold rightwards arrow on top subscript 2  have the same line action their reultant effect on the coil is zero.
    The two forces stack bold F subscript bold 3 with bold rightwards arrow on top bold space bold and bold space stack bold F subscript bold 4 with bold rightwards arrow on top
 are equal in magnitude and opposite in direction. As the two forces have different lines of action, they constitute a torque .Thus, if the force on one arc of the loop is bold F with bold rightwards arrow on top, the net force on the remaining three arms of the loop is -F.

    Question 229
    CBSEENPH12040029

    The magnetic force acting on a charged particle of charge -2 μC in a magnetic field of 2T acting in y direction, when the particle velocity is left parenthesis 2 straight i with hat on top space plus 3 straight j with hat on top right parenthesis space straight x space 10 to the power of 6 space ms to the power of negative 1 end exponent space is

    • 8N in -z direction

    • 4N in z direction

    • 8 N in y direction

    • 8 N in z direction

    Solution

    A.

    8N in -z direction

    When a charge q moves with the velocity v inside the magnetic field of strength B, then force on the charge is called magnetic Lorentz force. The magnetic Lorentz force is in the direction of vector
    bold v with bold rightwards arrow on top bold space bold x bold space bold B with bold rightwards arrow on top
Magnetic space Lorentz space force space straight F with rightwards arrow on top space equals space straight q space left parenthesis bold v with bold rightwards arrow on top bold space bold x bold space bold B with bold rightwards arrow on top right parenthesis
equals space minus 2 space straight x space 10 to the power of negative 6 end exponent space left square bracket space 2 space straight x space 2 space straight x space 10 to the power of 6 right square bracket
space equals space 8 space straight N space along space negative space straight z space axis

    Question 230
    CBSEENPH12040049

    A particle mass m, charge Q and kinetic energy T enter a transverse uniform magnetic field of induction.bold B with rightwards arrow on top After 3 s the kinetic energy of the particle will be

    • 3T

    • 2T

    • T

    • 4T

    Solution

    C.

    T

    After passing through a magnetic field, the magnitude of its mass and velocity of the particle remain same, so its energy does not change, ie, kinetic energy will remain T.

    Question 231
    CBSEENPH12040058

    A long solenoid has 500 turns. When a current of 2 A is passed through it, the resulting magnetic flux linked with each turn of the solenoid is 4 x 10-3 Wb. The self -inductance of the solenoid is

    • 2.5 H

    • 2.0 H

    • 1.0 H

    • 4.0 H

    Solution

    C.

    1.0 H

    The inductance of a coil is numerically equal to the emf induced in the coil when the current in the coil changes at the rate of 1 As-1. If I is the current flowing in the circuit, then flux linked with the circuit is observed to be proportional to I, ie,
    straight ϕ space proportional to space straight I
straight ϕ space equals space LI space... space left parenthesis straight i right parenthesis
    where L is called the self-inductance or coefficients of self-inductance or coefficient of self-inductance or simply inductance of the coil.
    Net flux through the solenoid.
    Φ = 500 x 4 x 10-3 = 2 Wb
    Or 2 = L x 2 [after putting value in eq. or  L = 1H]

    Question 233
    CBSEENPH12040087

    Two circular coils 1 and 2 are made from the same wire but the radius of the 1st coil is twice that of the 2nd coil. What is the ratio of potential difference applied across them so that the magnetic field at their centres is the same?

    • 3

    • 4

    • 6

    • 2

    Solution

    B.

    4

    Magnetic field at the centre of a circular coil is
                               straight B space equals space fraction numerator straight mu subscript 0 over denominator 4 straight pi end fraction cross times fraction numerator 2 πi over denominator straight r end fraction
    where i is current flowing in the coil and r is radius of coil.
    At the centre of coil - 1,
                    straight B subscript 1 space equals space fraction numerator straight mu subscript 0 over denominator 4 straight pi end fraction cross times fraction numerator 2 πi subscript 1 over denominator straight r subscript 1 end fraction space space space space space space space space space... left parenthesis straight i right parenthesis
    At the centre of coil-2
                               straight B subscript 2 equals space space fraction numerator straight mu subscript 0 over denominator 4 straight pi end fraction cross times fraction numerator 2 πi subscript 2 over denominator straight r subscript 2 end fraction space space space space space space space... left parenthesis ii right parenthesis
    But                   straight B subscript 1 space equals space straight B subscript 2
    therefore space space space space fraction numerator straight mu subscript 0 over denominator 4 straight pi end fraction space fraction numerator 2 πi subscript 1 over denominator straight r subscript 1 end fraction space equals space fraction numerator straight mu subscript 0 over denominator 4 straight pi end fraction fraction numerator 2 πi subscript 2 over denominator straight r subscript 2 end fraction
or space space space space space space space space straight i subscript 1 over straight r subscript 1 space equals space straight i subscript 2 over straight r subscript 2
As space space space space space space space space straight r subscript 1 space equals space 2 straight r subscript 2
therefore space space space space space space fraction numerator straight i subscript 1 over denominator 2 straight r subscript 2 end fraction space equals space straight i subscript 2 over straight r subscript 2
or space space space space space space space space straight i subscript 1 space equals space 2 straight i subscript 2 space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space space... left parenthesis iii right parenthesis space space space space space space
    Now, export of potential differences
                    straight V subscript 2 over straight V subscript 1 space equals space fraction numerator straight i subscript 2 cross times straight r subscript 2 over denominator straight i subscript 1 cross times straight r subscript 1 end fraction space equals space fraction numerator straight i subscript 2 cross times straight r subscript 2 over denominator 2 straight i subscript 2 cross times 2 straight r subscript 2 end fraction space equals space 1 fourth
    therefore space space space space space straight V subscript 1 over straight V subscript 2 space equals space 4 over 1

    Question 235
    CBSEENPH12040126

    Current sensitivity of a moving coil galvanometer is 5 div/mA and its voltage sensitivity (angular deflection per unit voltage applied) is 20 div/V. The resistance of the galvanometer is

    • 40 Ω

    • 25 Ω

    • 500 Ω

    • 250 Ω

    Solution

    D.

    250 Ω

    Current sensitivity of moving coil galvanometer

    Is = NBAC .... (i)

    Voltage sensitivity of moving coil galvanometer,

    Vs = NBACRG ...... (ii)

    Dividing equation (i) and (ii)
    Resistance of galvanometer

    RG = IsVs = 5 x 120 x 10-3 = 500020 = 250 Ω

    Question 237
    CBSEENPH12040147

    The turns of a solenoid, designed to provide a given magnetic flux density along its axis, are wound to fill the space between two concentric cylinders of fixed radii. How should the diameter d of the wire used be chosen so as to minimize the heat dissipated in the windings?

    • Wire should be multiple of 5d

    • Wire should be multiple of d/3

    • the wire is independent of d

    • Can't say

    Solution

    C.

    the wire is independent of d

    The cross-sectional area of the space to be filled is fixed. whilst, that of the wire varies as d2. Thus, n ∝ d-2. The resistance of one turn is inversely proportional to the cross-sectional area of the wire, i.e varies as d-2 and hence the resistance per unit length of the solenoid is R ∝nd-2 ∝ d-4. The flux density B is ∝ nI and therefore the required current I ∝ n-1 ∝ d2. The heat dissipated per unit length is RI2, which ∝ d-4(d2)2, i.e., independent of d. Thus, within limits, it does not matter what diameter wire is chosen so far as the heating effect is concerned.

    Question 239
    CBSEENPH12040168

    To reduce the range of voltmeter, its resistance needs to be reduced. A voltmeter has resistance Ro and ranges V. Which of the following resistances when connected in parallel will convert it into a voltmeter of range V/n?

    • nR0

    • (n+1)R0

    • (n-1)R

    • None of these

    Solution

    D.

    None of these

    When a resistance is connected in parallel, it reduces the resistance of combination but the range is not reduced. For the purpose of reducing the range the resistance in series with galvanometer need to be reduced.

    This cannot be achieved by connecting a resistance in parallel with a voltmeter. It should be noted that the range of voltmeter can only be increased but cannot be decreased.

    Question 240
    CBSEENPH12047697

    A coil having N turns carry a current as shown in the figure. The magnetic field intensity at point  P

    • μ0NiR22R2+x232

    • μ0Ni2R

    • μ0 NiR2R+x2

    • Zero

    Solution

    A.

    μ0NiR22R2+x232

    From the formula, magnetic field intensity at point P, shown in given figure while carrying  current 'i' and having 'N' turns is given by Magneti field at P due to entire circular loop is

    μ0iR22 x2+R232

    And hence for N turns is,

     μ0 NiR22 R2+x232

    Question 241
    CBSEENPH12047699

    An electron moves at right angle to a magnetic field of 1.5×10-2 T with a speed of 6 x 107 m / s. If the specific charge of the electron is 1.7x 1011 C/ kg. The radius of the circular path will be

    • 2.9 cm

    • 3.9 cm

    • 2.35 cm

    • 2 cm

    Solution

    C.

    2.35 cm

    The formula for radius of circular path is

    r=m νe B= νemBSuppose the cut off wavelength isrepresented by λoso, h cλo  =work function=Woh cλo  =4.2 × 1.6 × 10-19λo =6.6 × 10-34 × 3 × 1084.2 × 1.6 ×  10-19 =2946 × 10-102950 Ao

    Question 242
    CBSEENPH12047717

    If a charge particle enters perpendicularly in the uniform magnetic field, then:

    • energy and momentum both remains constant

    • energy remains constant but momentum changes

    • both energy and momentum changes

    • energy changes but momentum remains constant

    Solution

    B.

    energy remains constant but momentum changes

    The magnetic field does not work, so kinetic energy and speed of a charged particle in a magnetic field remains constant. The magnetic force, acting perpendicular to the velocity of the particle, will cause circular motion.

    Question 243
    CBSEENPH12047730

    A coil in the shape of an equilateral triangle of side l is suspended between the pole pieces of a
    permanent magnet such that B is in plane of the coil. If due to current i in the triangle a torque T acts on it, the side l of the triangle is

    • 23τBi12

    • 23τBi

    • 2τ3Bi12

    • 13τBi

    Solution

    C.

    2τ3Bi12

    Torque acting on equilateral triangle in a magnetic field B is

    τ = i AB sinθ

    Area of triangle LMN

    A = 1/2 × base × height

    A = 1/2 ×l × sin 60o

    (since an equilateral triangle has an angle of 60o each)

    A = 32l2  and θ = 90o

    Substituting the given value in expression for torque, we have

    τ = i × 34l2 B sin 90oτ = 34il2 B                               sin 90o = 1Hence, l = 2 τ3 Bi12

    Question 244
    CBSEENPH12047747

    An electron moves in a circular orbit with a uniform speed v. It produces a magnetic field B at the centre of the circle. The radius of the circle is proportional, to

    • Bv

    • vB

    • vB

    • Bv

    Solution

    C.

    vB

    The time period of electron moving in angular orbit

    T = circumference of circular pathspeed T =  2πrνand equivalent current due to electron flowI = eT   =e2πrνI  =2πr

    Magnetic field at centre of circle

    B = μo I2r    = μo e ν4 π r2 r  νB

    Question 245
    CBSEENPH12047761

    In a mass spectrometer used for measuring the masses of ions, the ions are initially accelerated by an electric potential V and then made to describe semicircular paths of radius R using a magnetic field B. If V and B are kept constant the ratio charge on the ionmass of the ion will be proportional to

    • 1R

    • 1R2

    • R2

    • R

    Solution

    B.

    1R2

    The radius of the orbit in which ions moving is determined by the relation as given below

    mv2R = qvB

    where m is the mass, v is velocity, q is charge of ion and B is the flux density of the magnetic field, so that qvB is the magnetic force acting on the ion, and mv2R is the centripetal force on the ion moving in a curved path of radius R.

    The angular frequency of rotation of the ions about the vertical field B is given by

    ω = vR    = qBmω= 2πv

    where ν is the frequency.

    Energy of ion is given by

       E = 122       =12m 2E = 12m R2 B2 q2m2 E = 12R2 B2 q2m                       ....(i)

    If ions are accelerated by electric potential V, then energy attained by ions

    E = qV                                ....  (ii)

    from equation (i) and (ii) we get

    q V = 12R2 B2 q2m qm = 2 VR2 B2

    If V and B are kept constant

    qm  1R2

    Question 246
    CBSEENPH12047788

    The north pole of a long horizontal bar magnet is being brought closer to a vertical conducting plane along the perpendicular direction. The direction of the induced current in the conducting plane will be

    • horizontal

    • vertical

    • clockwise

    • Anticlockwise

    Solution

    C.

    clockwise

    The induced emf will oppose the motion of the magnet. Applying the right-hand rule, the direction of induced current will be clockwise.



    Above image shows the direction of the magnetic force acting on a charged particle. The force on a positively charged particle with velocity v and making an angle θ with the magnetic field B is given by the right-hand rule.

    Question 247
    CBSEENPH12047798

    An electric current passes through a long straight copper wire. At a distance 5 cm from the straight wire, the magnetic field is B. The magnetic field at 20 cm from the straight wire would be

    • B6

    • B4

    • B3

    • B2

    Solution

    B.

    B4

    The magnetic field at a distance r from the straight wire

        B = μoi2 πr

    or   B ∝ 1r

    or   B2B1 = r1r2

    ∴ B2B = 520

             = 14

    ⇒  B2 = B4

    Question 248
    CBSEENPH12047799

    An electron of mass m and charge q is travelling with a speed v along a circular path of radius r at right angles to a uniform magnetic field B. If speed of the electron is doubled and the magnetic field is halved, then resulting path would have a radius of

    • r4

    • r2

    • 2r

    • 4r

    Solution

    D.

    4r

    In a perpendicular magnetic field

    Magnetic force  =  centripetal force

                Bqv    =    mv2r

     ⇒             r   = mvBq

     ∴             r1r2 = v1v2 × B2B1

                    r1r2 = 12 × 12

                     r2 =  4 r1

     ⇒              r2 = 4 r

    Question 249
    CBSEENPH12047800

    A galvanometer acting as a voltmeter should have

    • low resistance in series with its coil

    • low resistance in parallel with its coil

    • high resistance in series with its coil

    • high resistance in parallel with its coil

    Solution

    C.

    high resistance in series with its coil

    Voltmeter has high resistance and is always connected in parallel with the circuit. So, to convert a galvanometer into voltmeter, a high resistance must be connected in series with it so that it draws negligible current from the circuit.

    Question 250
    CBSEENPH12047823

    A galvanometer can be changed into an ammeter by using

    • low resistance shunt in series

    • low resistance shunt in parallel

    • high resistance shunt in series

    • high resistance shunt in parallel

    Solution

    B.

    low resistance shunt in parallel

    A galvanometer can be converted to ammeter by connecting a low resistance ( called shunt resistance) in parallel to the galvanometer. If resistance is connected in parallel, then some of the current will flow through resistance.

    Question 251
    CBSEENPH12047824

    A proton moving vertically downward enters a magnetic field pointing towards north. In which direction proton will deflect?

    • East

    • West

    • North

    • South

    Solution

    A.

    East

    Proton will represent the direction of current. So, the direction of current is vertically downward.

    According to Fleming's left hand rule, if middle finger represents the direction of current and fore-finger represents the direction of magnetic field then thumb will represent the direction of Lorentz force acting on the proton which deflects the proton in east direction.

    Question 252
    CBSEENPH12047834

    A coil of n number of turns is wound tightly in the form of a spiral with inner and outer radii a and b respectively. When a current of strength I is passed through the coil, the magnetic field at its centre is

    • μo nIb - a loge ab

    • μo n I2 b - a

    • 2 μo nIb

    • μo nI2 b - a loge ba

    Solution

    D.

    μo nI2 b - a loge ba

    Consider an element of thickness (dr) at a distance 'r' from the centre of spiral-coil.

    Number of turns in coil =  n

    Number of turns per unit length = nb - a

    a is the inner radii and b is the outer radii of spiral winding.

    Number of turns in element dr = dn

    Number of turns per unit length in element

                    dr = n drb - a

    ⇒              dn = n drb - a

    Magnetic field at its centre due to element dr is

                       dB  =  μo I dn2 r

                             = μo I 2 nb - a drr

    By integrating on both side

    ∴                  B = ab μo I n dr2 b - a r

                          = μo I n2 b - a abdrr

                         = μo I n2 b - a loge rab                                ab1r = loge rab

                        = μo I n2 b - a loge ba

    Question 253
    CBSEENPH12047853

    A galvanometer acting as a voltmeter should have

    • low resistance in series with its coil

    • low resistance in parallel with its coil

    • high resistance in series with its coil

    • high resistance in parallel with its coil

    Solution

    C.

    high resistance in series with its coil

    Voltmeter has high resistance and is always connected in parallel with the circuit. So to convert a galvanometer into voltmeter, a high resistance must be connected in series with it so that is draws negligible current from the circuit.



    Question 254
    CBSEENPH12047873

    Magnetic field at point O will be



    • μo I2R interior

    • μoI2R exterior

    • μo I2R1 - lπ interior

    • μoI2R 1 + Iπ exterior

    Solution

    A.

    μo I2R interior

    Magnetic field at the centre of circular loop

      B = μo I2Rinterior

    B is the magnetic field

    I is the current flowing through loop

    Question 255
    CBSEENPH12047880

    If the electric flux entering and leaving an enclosed surface respectively are ϕ1 and ϕ2 , the electric charge inside the surface will be

    • ϕ2 - ϕ1εo

    • ϕ2 + ϕ1εo

    • ϕ1 - ϕ2ε0

    • ε0 ϕ1 +  ϕ2

    Solution

    D.

    ε0 ϕ1 +  ϕ2

    According to Gauss theorem "the net electric flux through any closed surface is equal to the net charge inside the surface divided by εo''.

    Therefore

            ϕ  qεo

    Let-q1 be the charge, due to which flux, is entering the surface,

          ϕ1= -q1εo

          -q1 = εoϕ1

    Let +q2  be the charge, due to which flux ϕ2 is entering the surface.

            ϕ2 = q2ε0

    ⇒      q2εo ϕ2

    So, electric charge inside the surface

           = q2 - q1

            = ε0 ϕ2 +  ε0ϕ1

            = ε0 ϕ2 - ϕ1

    Question 256
    CBSEENPH12047882

    Two long straight wires, each carrying an electric current of 5 A, are kept parallel to each other at a separation of 2.5 cm. Find the magnitude of the magnetic force experiment by 10 cm of a wire.

    • 4.0 × 10-4 N

    • 3.5 × 10-6 N

    • 2.0 × 10-5 N

    • 2.0 × 10-9 N

    Solution

    C.

    2.0 × 10-5 N

    The field at the site of one wire due to the other is

            B = μo i2πd

    Where μo - permeability of free space

               i - current

             B  = 2 × 107 × 5.02.5 × 10-2

              B  =  4.0 × 10-5 T

    The force experienced by 10 cm of this wire due to other is

           F = il B

               = (5.0 ) × ( 10 × 10-2 ) × ( 4.0 × 10-5 )

            F = 2.0 × 10-5 N

    Question 257
    CBSEENPH12047887

    The parts of two concentric circular arcs joined by two radial lines and carries current i. The arcs subtend an angle 0 at the centre of the circle. The magnetic field at the centre O, is

    • μ0 i b - a  θ4π ab

    • μ0i b - aπ - θ

    • μ0i  b - a θπab

    • μ0i a - b2πab

    Solution

    A.

    μ0 i b - a  θ4π ab

    The field at the centre of a circular loop is given by

               B = μ0 i2a

    The field due to circular arc of inner circle is

              B1θ2π μ0 i2a

    The field due to circular arc of outer circle is

              B2θ2π μ0 i2b

            B = B1 - B2

             B = μ0i b - a4πab

    Question 258
    CBSEENPH12047892

    A square loop is made by a uniform conductor wire as shown in figure



    The net magnetic field at the centre of the loop if side length of the square is a

    • μ0 i2 a

    • zero

    • μ0 i2a2

    • None of these

    Solution

    B.

    zero

    The current will be equally divided at junction P. The field at the centre due to wires PQ and SR will be equal in magnitude but opposite in the direction, so its effective field will be zero. Similarly, net field due to wires PS and QR is zero. Therefore, the net field at the centre of the loop is zero.

    Question 259
    CBSEENPH12047903

    A thin bar magnet of length 2 L is bent at the mid-point so that the angle between them is 60°. The new length of the magnet is

    • L23

    • 3 L2

    • L

    • 2L3

    Solution

    C.

    L

    On bending the magnet, the angle between two parts of the magnet is expressed in the diagram below



    Now, the minimum distance between the ends P and R

                   = L sin 30o + L sin30o

                   = 2L sin30o

                    = 2L × 12                 ....( sin30o12)

                     = L

    Question 260
    CBSEENPH12047925

    A circular current carrying coil has a radius R. The distance from the centre of the coil, on the axis, where B will be  18  of its value at the centre of the coil is

    • R3

    • 3 R

    • 3 R

    • 2 R3

    Solution

    B.

    3 R

            B = μ0 Ni R22 R2 + x2 32

               = μ0N i2 R 11 + x2R232

    Let   BCμ0 Ni2R

           B =  BC 11 + x2R232

    ⇒      BC8 = BC1 +x2R232                           B = BC8

    ⇒      1 + x2R2 32 = 8

    ⇒     1 + x2R2 = 4

    ⇒       x2R2  = 3

    ⇒       x = R 3

    Question 261
    CBSEENPH12047928

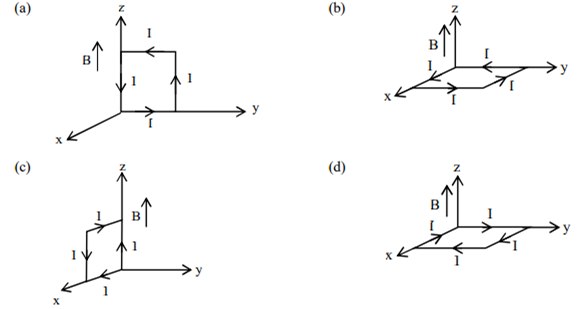

    A current carrying loop is placed in a uniform magnetic field in four different orientations I, II, III and IV as shown in figure. Arrange them in decreasing order of potential energy

    • l > lll> ll > lV

    • l > ll > lll > lV

    • l > lV > ll > lll

    • lll > lV > l > ll

    Solution

    C.

    l > lV > ll > lll

    As we know that, potential energy of a magnet in a magnetic field.

        U = - m .B

    where, m = magnetic dipole moment of the magnet

    B = magnetic field

    Case l :-   θ = 180o

         U1- mB. cos 180o

              = mB                         [ cos 180o = -1 ]

    Case ll :-   θ = 90o

        U2 = 0                             [  cos 90o = 0 ]

    Case lll :- θ is acute angle

          θ ∈ ( 0o, 90o )

    ∴   cosθ = positive

    Thus U3 = negative

    Case lV:-    θ is obtuse

          θ ∈ ( 90o,  180o )

    ∴   cos ∈ ( 0, -1 )

    Thus, U4 = positive

    Therefore, decreasing order of PE is

         l > lV > ll > lll

    Question 262
    CBSEENPH12047944

    A current I is flowing through the loop. The direction of the current and the shape of the loop are as shown in the figure. The magnetic field at the centre of the loop is μ0 IR times ( MA = R, MB = 2R, ∠DMA = 90o )



    • 516, but out of the plane of the paper.

    • 516, but into the plane of the paper.

    • 716, but out of the plane of the paper.

    • 716, but into the plane of the paper.

    Solution

    D.

    716, but into the plane of the paper.

    Magnetic field at the centre M due to current through the curved portion DA is

           B1 = μ0 I4πR ×3π2

                 = μ0 I16 R

    Magnetic field at the centre M due to current through the straight portion CD is B,= 0, since
    point M lies on the axis of the straight portion CD.

    The resultant magnetic field at the point M is

           B  = B1 + B2 + B3 + B4

                = 3μ0 I8R + 0 + μ0 I16 R + 0

    ⇒    B = 7 μ0 I16 R

    Question 263
    CBSEENPH12047962

    Assertion:  Acceleration of charged particle in non-uniform electric field does not depend on velocity of charged particle.

    Reason: Charge is an invariant quantity. That is amount of charge on particle does not depend on frame of reference.

    • If both assertion and reason are true and reason is the correct explanation of assertion.

    • If both assertion and reason are true but reason is not the correct explanation of assertion.

    • If assertion is true but reason is false.

    • If both assertion and reason are false.

    Solution

    B.

    If both assertion and reason are true but reason is not the correct explanation of assertion.

    D.

    If both assertion and reason are false.

                  α¯ = q E¯m

    Where  α = acceleration ( m/s2 )

               q = charge ( coulomb )

               m = mass ( kg)

               E = electric field ( volt × m-1 )

    As E varies so does α¯, it does not depend on its velocity.

    Question 264
    CBSEENPH12047987

    The magnetic field at the centre O of the arc shown in the figure is



    • 2I  2 + π  × 10-7r

    • 2I 2 + π4 × 10-7r

    • I 2 + π×10-7r

    • I 2 + π4 × 10-7r

    Solution

    B.

    2I 2 + π4 × 10-7r

    Here,  a = r2

    Magnetic field at point O due to AB is

           B1μ04π Ia

                = μ0 I4π  r2

    Magnetic field at point O due to BCD is

        B2μ0 I4π aπ2

    Magnetic fieid at point O due to DE is

          B3μ0I4π α

          B3μ0 I4π r2

    Resultant magnetic field at point O is

         B = B1 + B2 + B3

            = μ0 I4π r2 + μ0 I4πrπ2 + μ0 I4π r2

            = μ0 I4πr 2 + π2 +2

       B = μ0 I4 πr 22 + π2

           = μ0 2 I4πr 2 + π4

     B = 10-7 × 2Ir 2 + π4                            .... μ04π = 10-7

    Question 266
    CBSEENPH12048006

    What is the magnetic field on the axis of a coil of radius r carrying current I at a distance R from the origin?

    • μ0 I r22 r2 + R232

    • μ0 IR22 r2 + R232

    • μ0I2 r + R

    • μ0 IR2 r2 + R212

    Solution

    A.

    μ0 I r22 r2 + R232

    Consider a circular coil of radius r, carrying a current I. Consider a point P, which is at a distance X from the centre of the coil. We can consider that the loop is made up of a large number of short elements, generating small magnetic fields. So the total field at P will be the sum of the contributions from all these elements. At the centre of the coil the field will be uniform. As the location of the point increases from the centre of the coil, the field decreases.





    By Biot-Savart's law, the field dB due to a small element 'dl' of the circle, centred at A is given by

             dB = μ0 I2 r2 x2 + r2 32

    This can be resolved into two components, one along the axis OP, ad other PS, which is perpendicular to OP.  Ps get cancelled with PS'. So the magnetic field at a distance x away from the axis of circular coil of radius r is given by

            Bxμ0 n I2 r2x2 + r232

    Question 267
    CBSEENPH12048033

    Assertion:  When a magnetic dipole is placed in a non uniform magnetic field, only a torque acts on the dipole.

    Reason:  Force would act on dipole if magnetic field is uniform.

    • If both assertion and reason are true and reason is the correct explanation of assertion.

    • If both assertion and reason are true but reason is not the correct explanation of assertion

    • If assertion is true but reason is false.

    • If both assertion and reason are false.

    Solution

    D.

    If both assertion and reason are false.



    When dipole is placed uniformly electric field and dipole vector direction is not parallel to field direction, each charge of dipole experiences a force. The magnitude of the two forces are equal but opposite in direction. These equal and unlike give rise to couple. This couple gives a torque to dipole, which rotates the dipole and makes it align to the direction of a field. Once the dipole is aligned in the direction of field, torque vanishes ( r × F will be zero, if r and F are in same direction). Once the dipole is aligned to electric field, the net force will be zero because they are in opposite direction. Hence in uniform field dipole experiences only torque.

    When a dipole is placed in non-uniform field, there will be torque as explained above. But once the dipole is aligned to field direction, the forces acting on the charges are not same. Hence there will be a net force acting on the dipole in the direction of magnetic field. Hence in non-uniform field, electric dipole experiences both torque and force.

    Mock Test Series

    Sponsor Area

    Sponsor Area

    NCERT Book Store

    NCERT Sample Papers

    Entrance Exams Preparation
