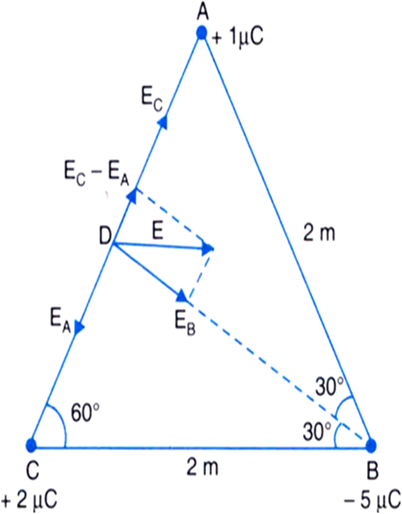

Point charges having values + 1 μC, – 5 μC and + 2 μC are placed at the corners A, B and C respectively of an equilateral triangle of side 2 m in free space. Determine the magnitude of intensity at the point D midway between A and C.

Solution

Given, Q_A= $1 μ C = 1 \times 10^{- 6} C$ , Q_{B= $- 5 μ C = - 5 \times 10^{- 6} C$}Q_{C= $2 μ C = 2 \times 10^{- 6} C$}and, the side of an equilateral triangle= 2m

We have to find the magnitude of intensity at point D lying midway between A and C.

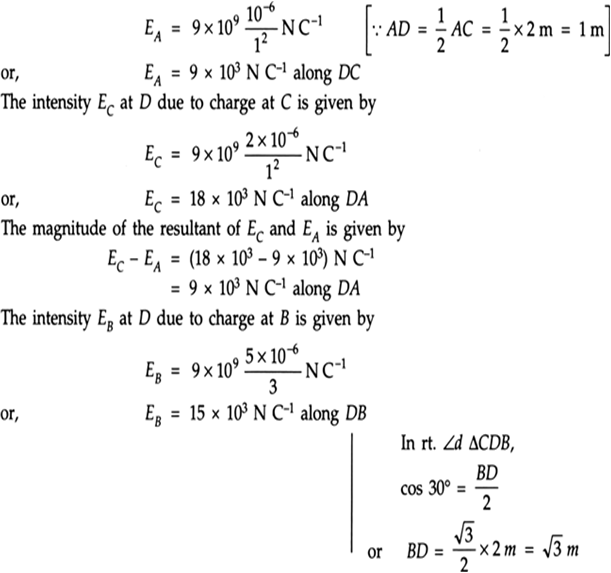

The intensity E_A at D due to charge at A is given by

If E be the magnitude of the resultant intensity, then

$E = \sqrt{{(9 \times 10^{3})}^{2} + {(15 \times 10^{3})}^{2} N C^{- 1}} = 1.749 \times 104 N C^{- 1}$
