Four point charges q_A = 2 μC, q_B = – 5 μC, q_c = 2 μC, and q_D = –5 μC are located at the corners of a square ABCD of side 10 cm. What is the force on a charge of 1 μC placed at the centre of the square?

Solution

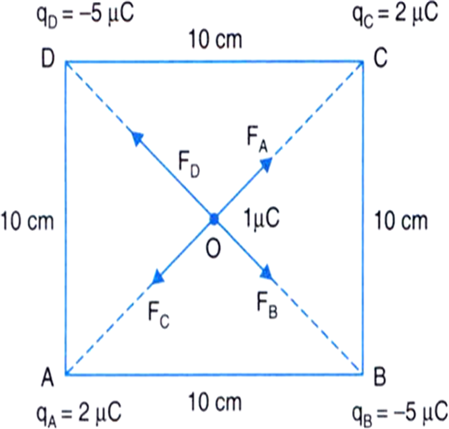

Suppose a square ABCD with each side of 10 cm and centre 0. At the centre, the charge of 1 μC is placed.

q_{D} = - 5 μC q_{C} = 2 μC q_{A} = 2 μC q_{B} = - 5 μC

Applying Coulomb's law,

F_{OA} = \frac{1}{4 π \in_{\circ}} \frac{q_{O} q_{A}}{{OA}^{2}} F_{OC =} \frac{1}{4 π \in_{\circ}} \frac{q_{o} q_{C}}{{OC}^{2}}

As q_A = q_cand since OA=OC, the charge of 1 μC experiences equal and opposite forces F_O_A and F_O_c due to charges q_A and q_C.
That is, F_OA= - F_{OC
$\Rightarrow$}F_OA+F_OC=0

Similarly, the charge 1 μC experiences equal and opposite forces. F_O_B and F_O_D due to equal charges q_B and q_D at B and D.
Therefore, F_OB+ F_OD= 0.

F_{n e t} = 0

Thus, the net force on charge of 1 μC due to all the given charges is zero.
