"A convex lens can form a magnified erect as well as a magnified inverted image of an object placed in from of it." Draw ray diagram to justify this statement stating the position of the object with respect to the lens in each case.

An object of height 4 cm is placed at a distance of 20 cm from a concave lens of focal length 10 cm. Use lens formula to determine the position of the image formed.

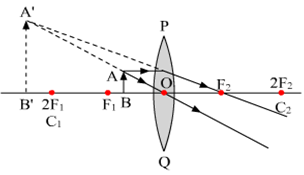

a) When the object is placed between O and F₁, magnified erect image is formed.

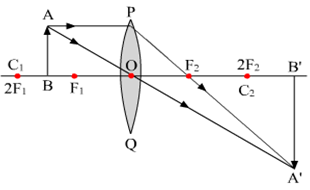

b) When the object is placed between F₁ and 2F₁ , magnified inverted image is formed.

Object distance, u = 20 cm

Image distance, v=?

Focal length, f = 10 cm

According to the sign convention, f = -10 cm and u=-20 cm

Now, using the lens formula,

The image is formed at a distance of 6.6 cm from the lens at the same side where the object is placed.
