Question

Define linear magnification produced by a lens. Deduce expression for the magnification for (i) convex lens and (ii) concave lens in terms of u and v.

Solution

The linear magnification produced by a lens is defined as the ratio of the size of the image formed by the lens to the size of the object.
It is denoted by m.

Thus,

Magnification,

m = \frac{Size of image}{Size of object} = \frac{h'}{h}

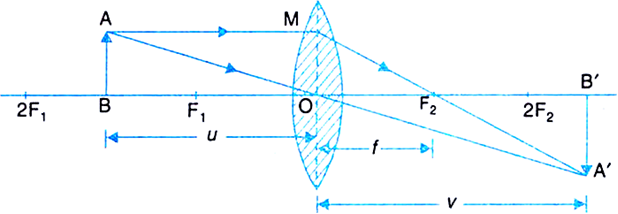

Convex lens:

Here,

∆ AOB ~ ∆ A' OB'

∴

\frac{A' B'}{AB} = \frac{OB'}{OB}

According to new cartesian sign convention,

Size of the image, A' B' = - h' S i z e o f t h e o b j e c t, AB = + h Object distance, OB = - u Image distance, OB' = + v

∴

Magnification =

\frac{- h'}{+ h} = \frac{+ v}{- u}

\frac{h'}{h} = \frac{v}{u}

Thus, Magnification, m = \frac{h'}{h} = \frac{v}{u}

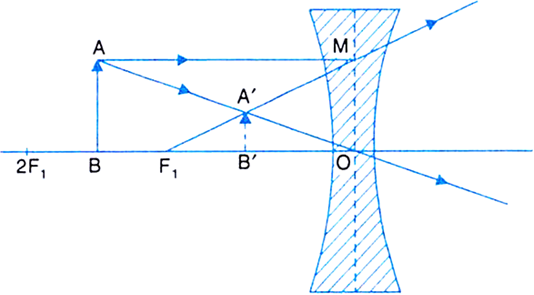

Concave lens:

Here,

∆ AOB ~ ∆ A' OB'

∴

∴

\frac{A' B'}{AB} = \frac{OB'}{OB}

According to new cartesian sign convention,

Image size, A' B' = + h' O b j e c t s i z e, AB = + h Object distance, OB = - u Image distance, OB' = - v

∴

Magnification =

\frac{+ h'}{h} = \frac{- v}{- u}

\Rightarrow

\frac{h'}{h} = \frac{v}{u}

∴ M a g n i f i c a t i o n, m = \frac{h'}{h} = \frac{v}{u}
