Practical Geometry

Question
CBSEENMA8003166
Wired Faculty App

Construct the following quadrilateral:
Parallelogram HEAR
HE = 5 cm
EA = 6 cm
∠R = 85°

Solution

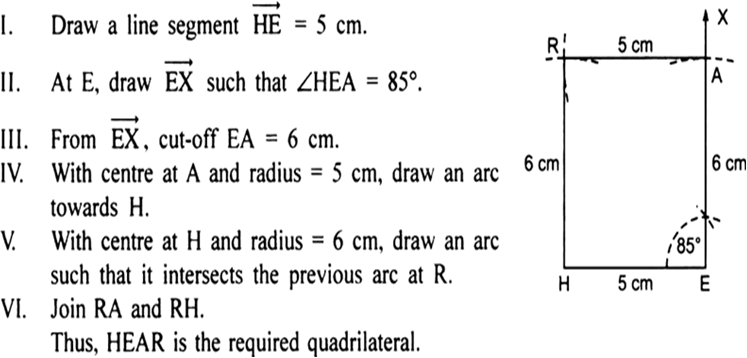

Steps of construction:

Some More Questions From Practical Geometry Chapter

Construct the following quadrilateral:
Quadrilateral ABCD
AB = 45 cm
BC = 5.5 cm
CD = 4 cm
AD = 6 cm
AC = 7 cm

Construct the following quadrilateral:
Quadrilateral JUMP
JU = 3.5 cm
UM = 4 cm
MP = 5 cm
PJ = 4.5 cm
PU = 6.5 cm

Construct the following quadrilateral.
Parallelogram MORE
OR = 6 cm
RE = 4.5 cm
EO = 7.5 cm

Construct the following quadrilateral.
Rhombus BEST
BE = 4.5 cm
ET = 6 cm

Construct the following quadrilateral.
quadrilateral LIFT
LI = 4 cm
IF = 3 cm
TL = 2.5 cm
LF = 4.5 cm
IT = 4 cm

Construct the following quadrilateral.
Quadrilateral GOLD
OL = 7.5 cm
GL = 6 cm
GD = 6 cm
LD = 5 cm
OD = 10 cm

(Construct a quadrilateral ABCD, given that BC = 4.5 cm, AD = 5.5 cm. CD = 5 cm, the diagonal AC = 5.5 cm and diagonal BD = 7 cm.)
Can we draw the quadrilateral by drawing triangle ABD first and then find the fourth point C?

Can you construct a quadrilateral PQRS with PQ = 3 cm, RS = 3 cm. PS = 7.5 cm, PR = 8 cm and SQ = 4 cm? Justify your answer.
