ICSE physics

Question
ICSEENIPH12030042

Mention any one postulate of Bohr’s theory of hydrogen atom.

Solution

Postulate of Bhor’s theory of hydrogen atom:
The permitted orbits in which the electrons revolve around the nucleus are those in which the angular momentum is an integral multiple of fraction numerator straight h over denominator 2 straight pi end fraction where h is the Planck’s constant.

Question
ICSEENIPH12030043

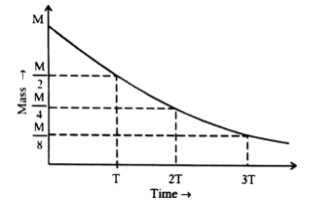

Show graphically the variation in the mass of a radioactive substance with time. Mark the values of time on the x-axis in terms of half-life (T, 2T, 3T etc.) and the corresponding values of mass on the y-axis.

Solution

WiredFaculty

Question
ICSEENIPH12030044

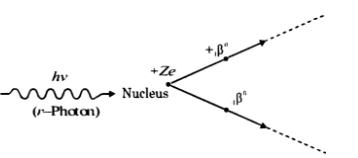

Draw a labelled sketch to illustrate pair production.

Solution

WiredFaculty

Sponsor Area

Question
ICSEENIPH12030045

What is meant by energy gap in solids ?

Solution

Energy gap in solids is the sepration between conduction band and valence band where no electron of a solid can stay.
There is no energy gap in conductors. It is smaller in semiconductors as compared to insulators.

Sponsor Area

Question
ICSEENIPH12030046

Draw the circuit diagram of a half-wave rectifier using a p-n junction diode.

Solution

WiredFaculty
